Eighty-Eight Royale FWD V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

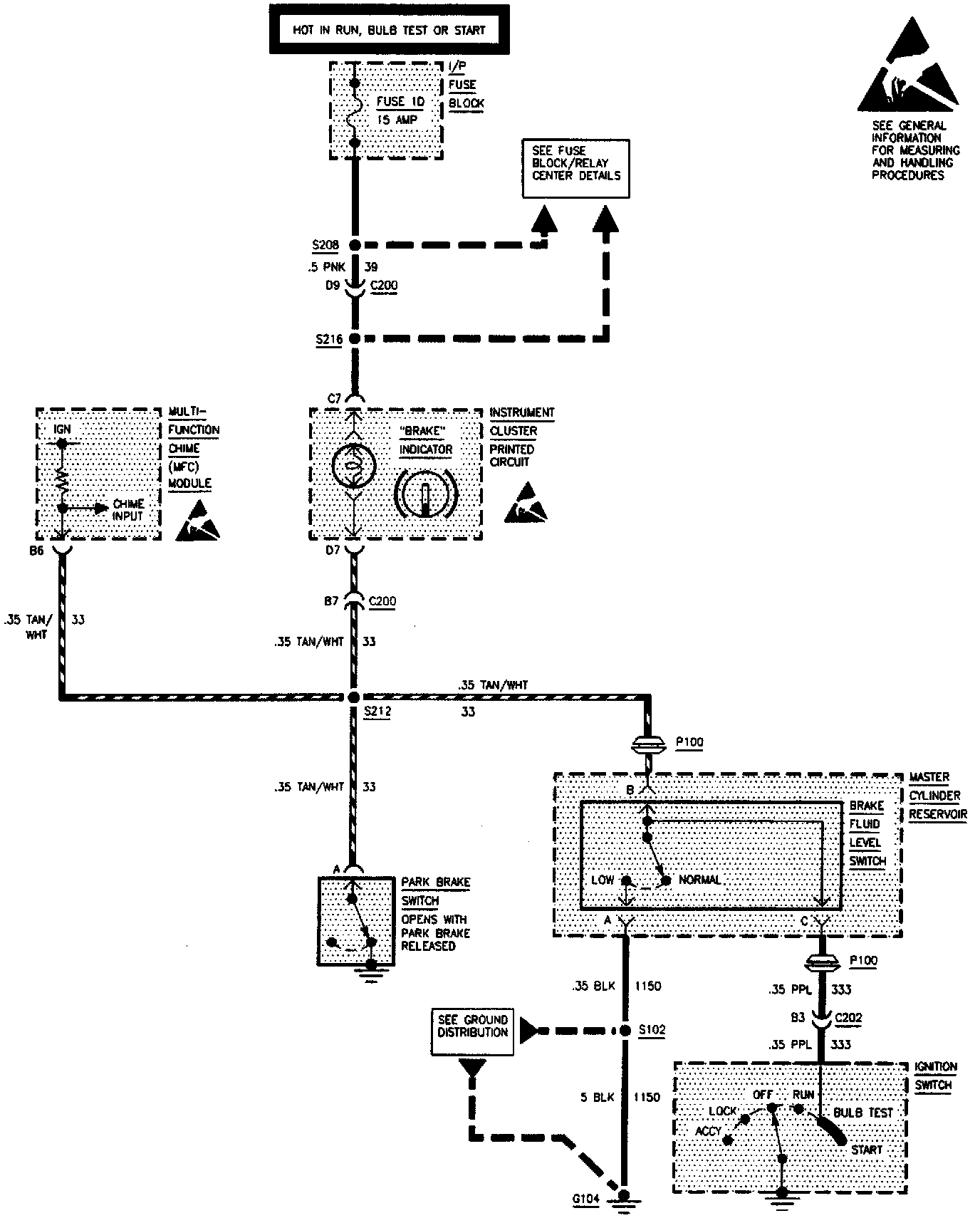

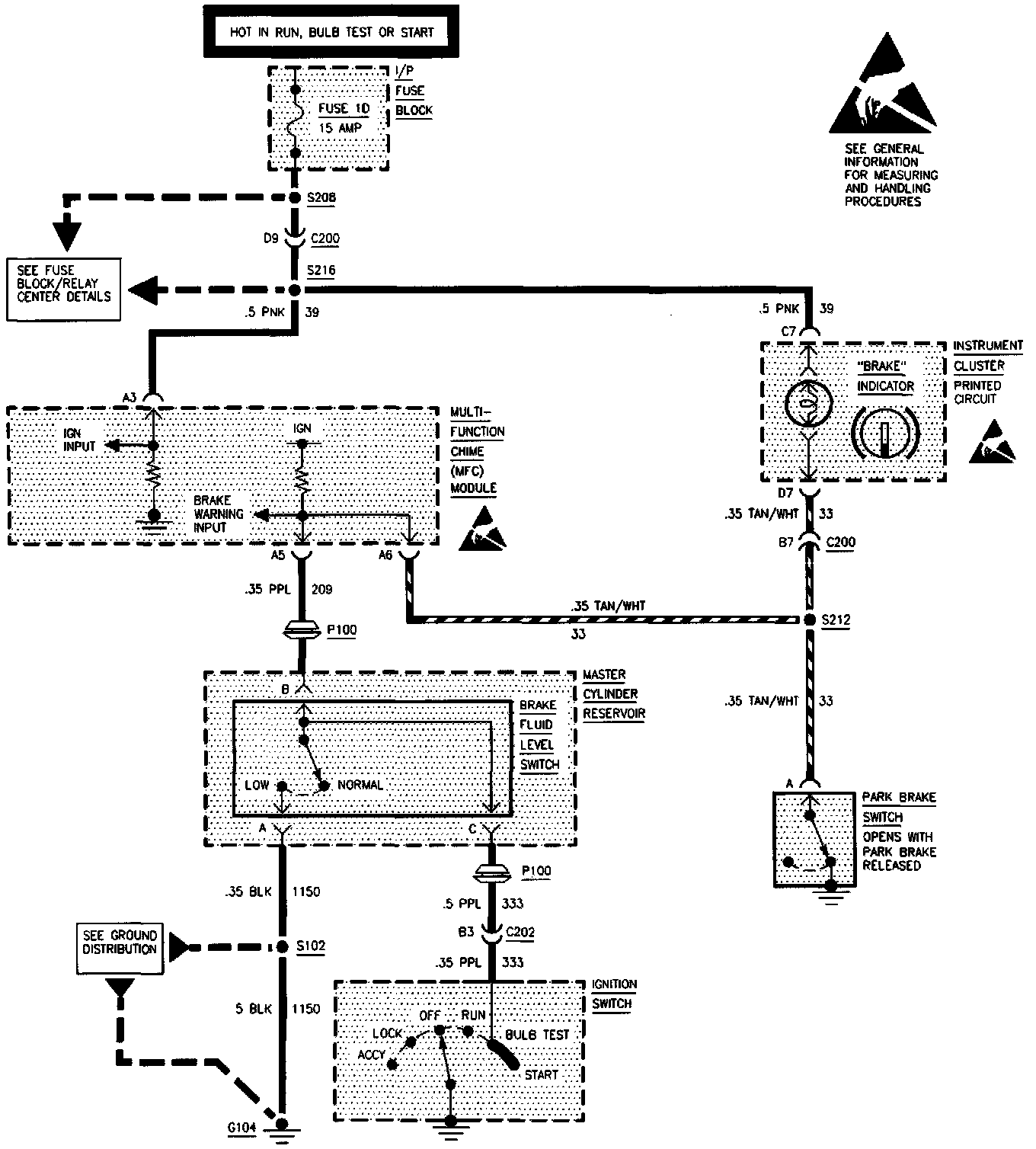

Brake Warning Indicator
>>
Indicators Cluster
Indicators Cluster
Indicators Cluster:
Indicators Cluster:
