Home >> Oldsmobile >> 1995 >> Eighty-Eight Royale FWD V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Diagrams >> Electrical Diagrams

Electrical Diagrams

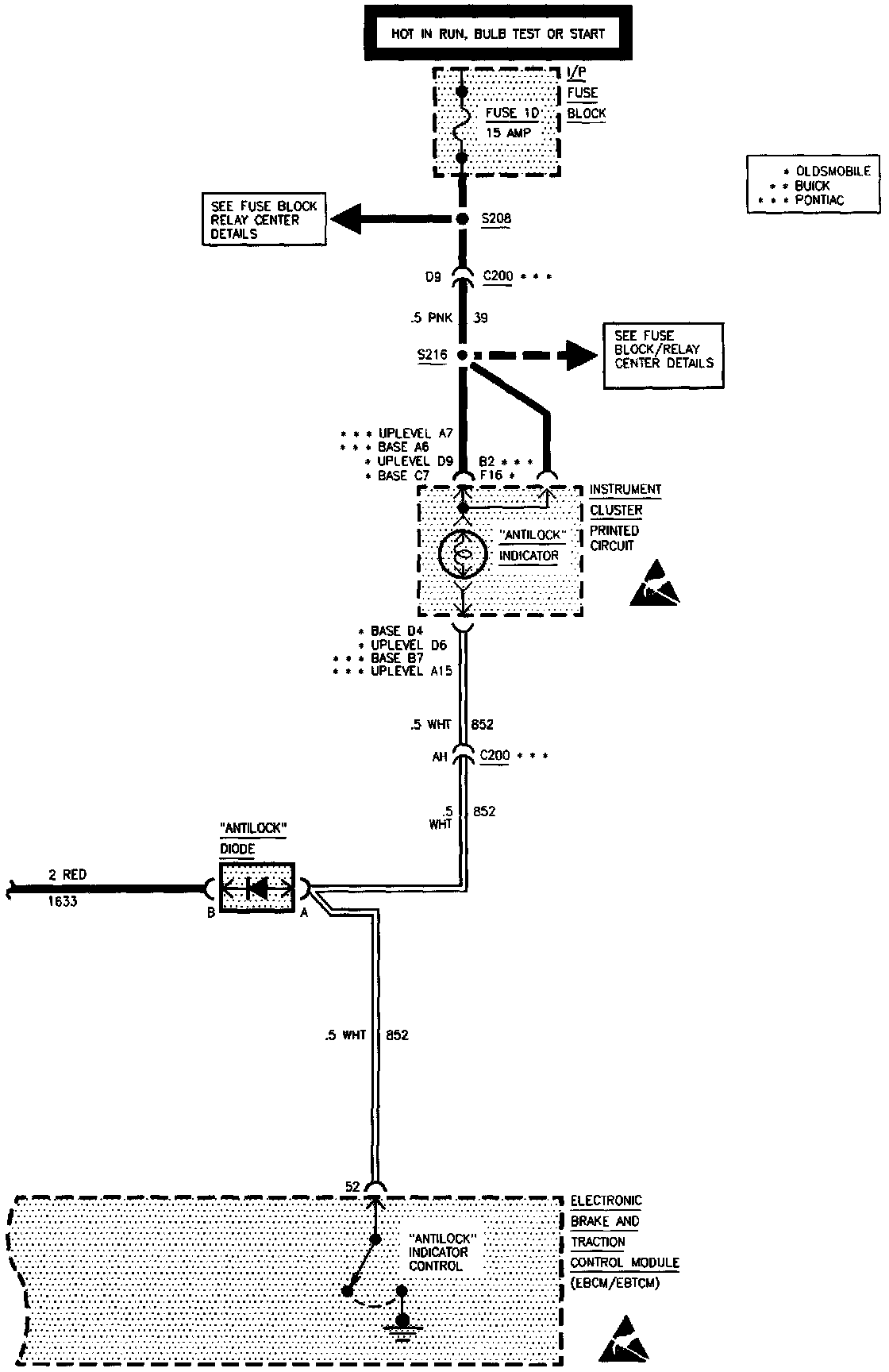

Antilock Brake System/Traction Control System:

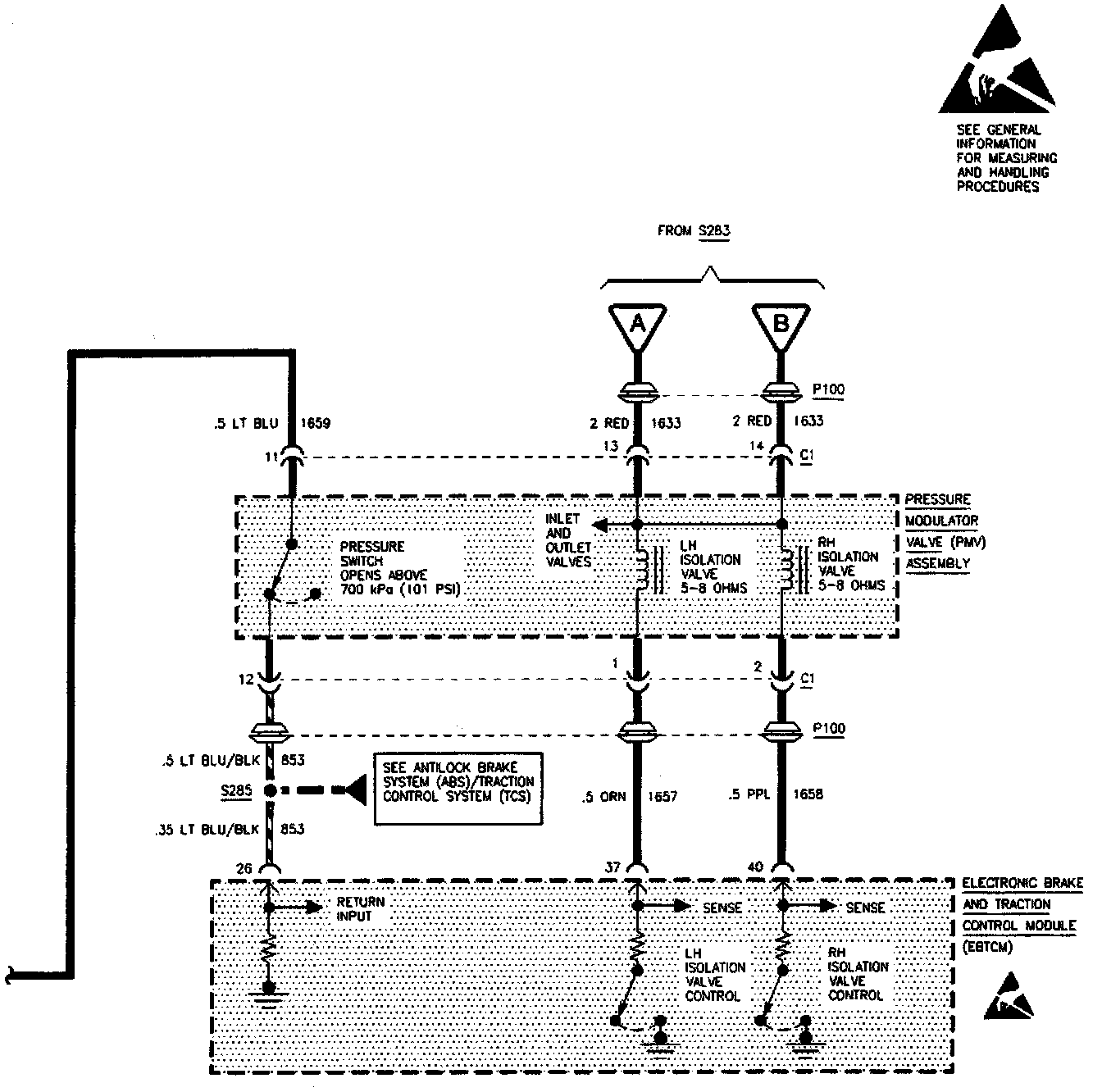

Antilock Brake System/Traction Control System:

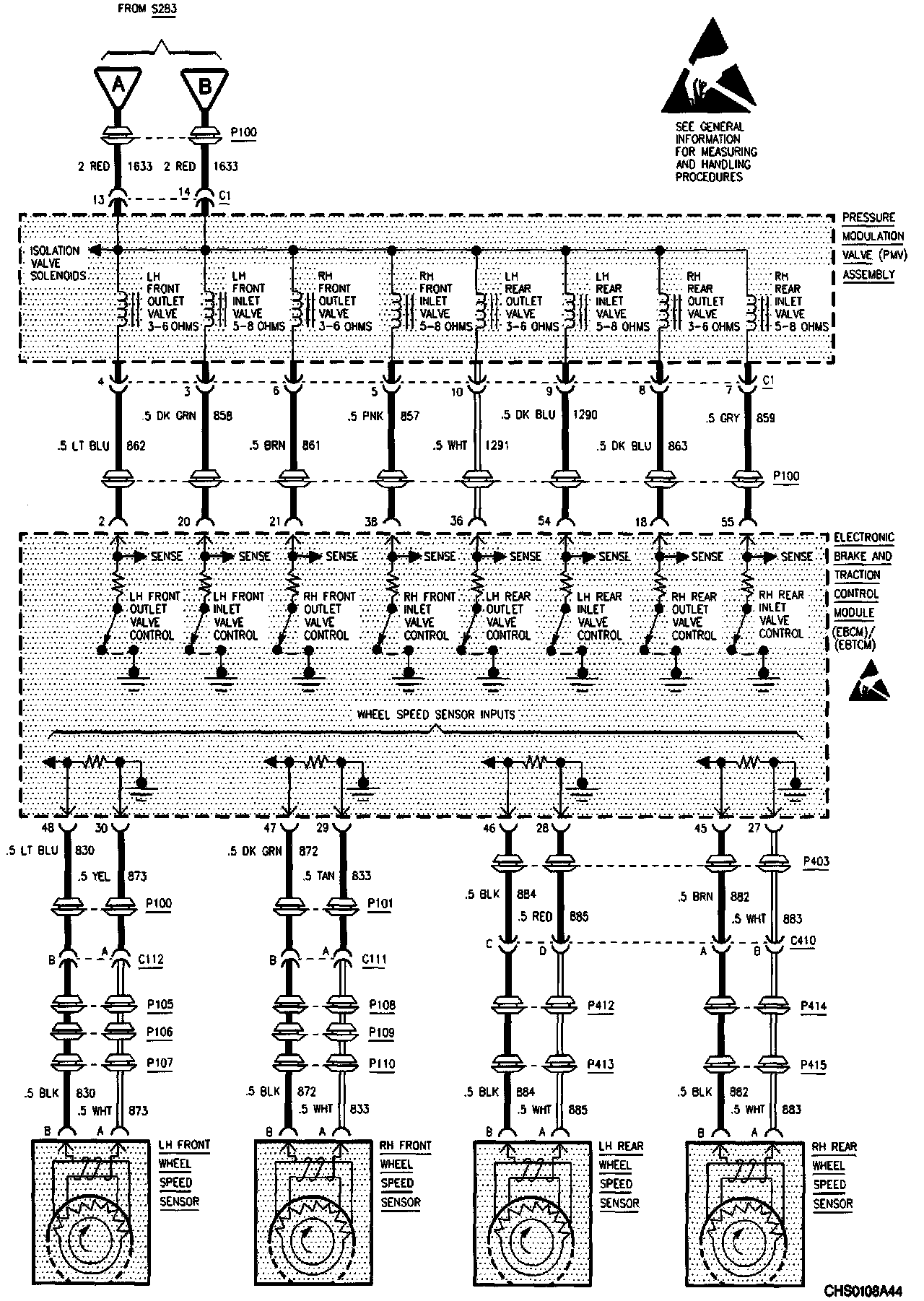

Antilock Brake System/Traction Control System:

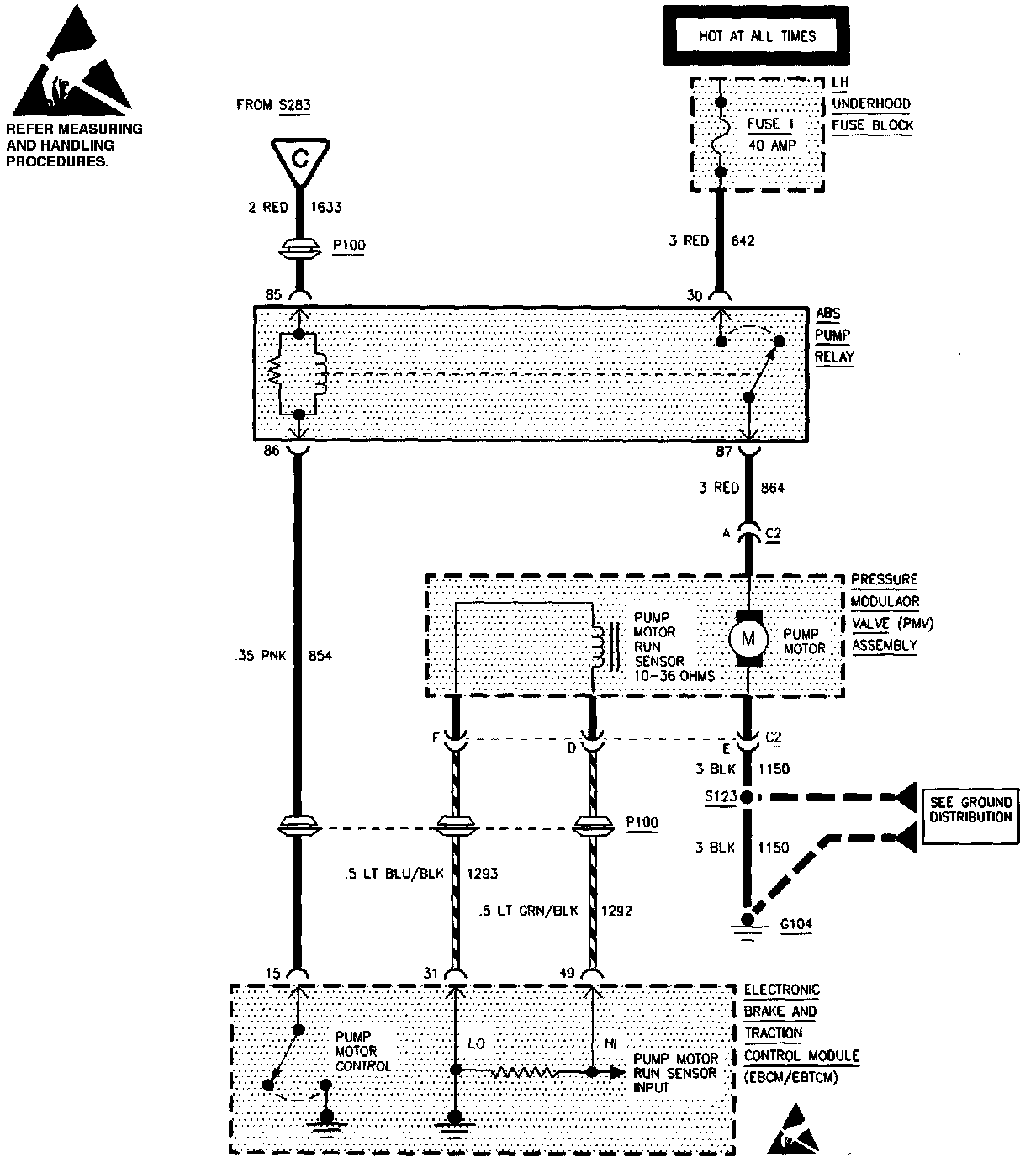

Antilock Brake System/Traction Control System:

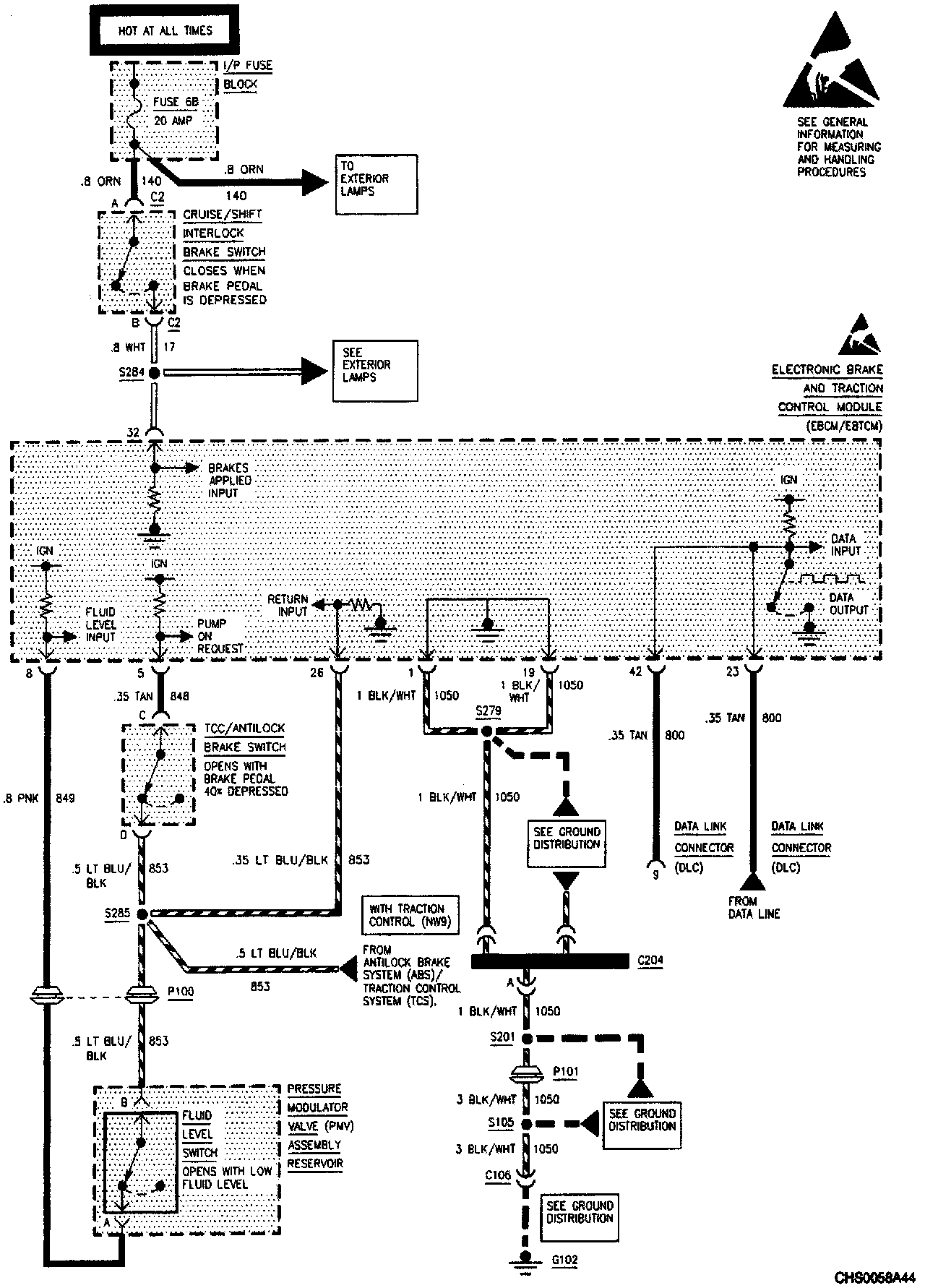

Antilock Brake System/Traction Control System:

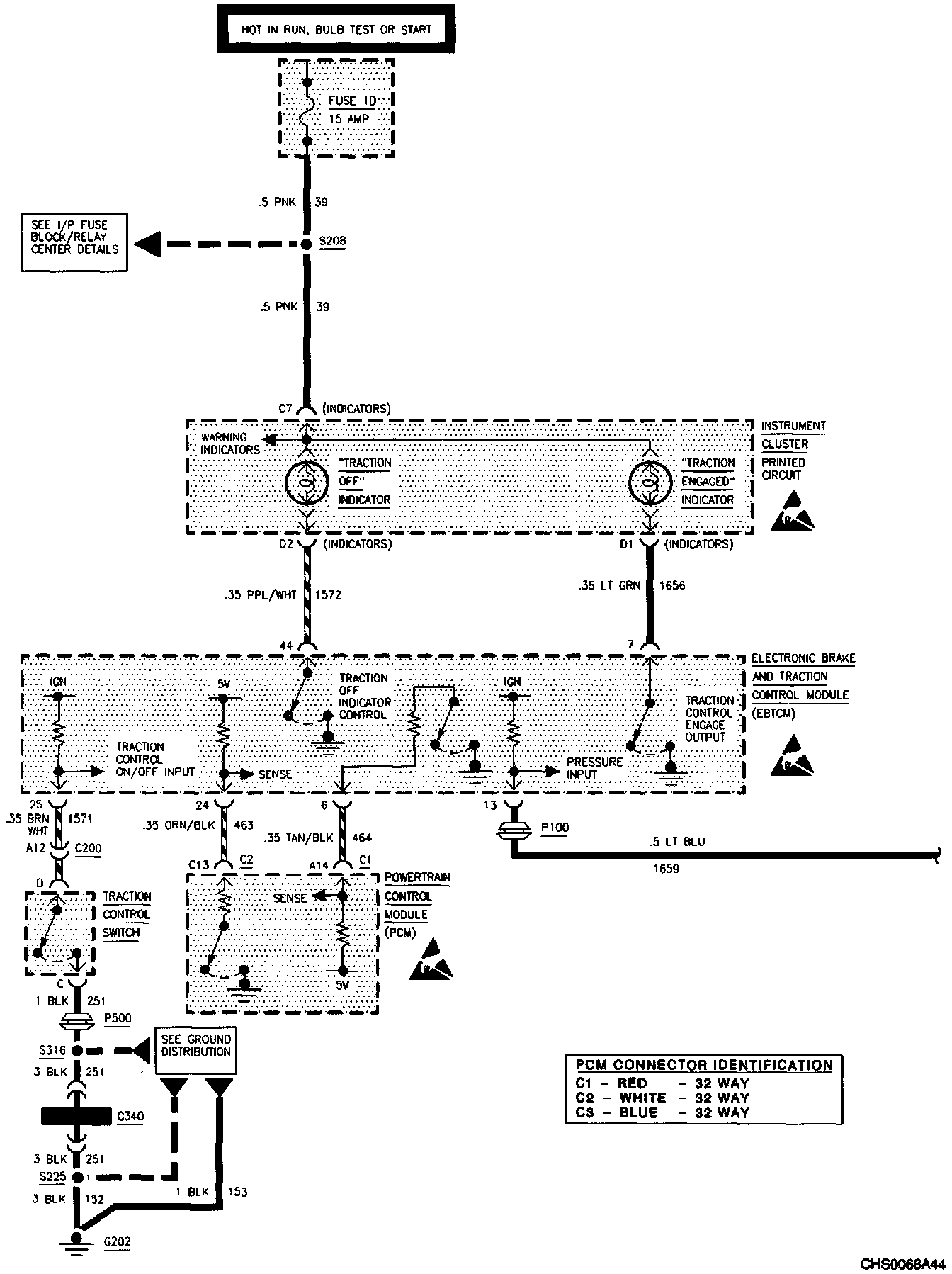

Antilock Brake System/Traction Control System:




Antilock Brake System/Traction Control System:
