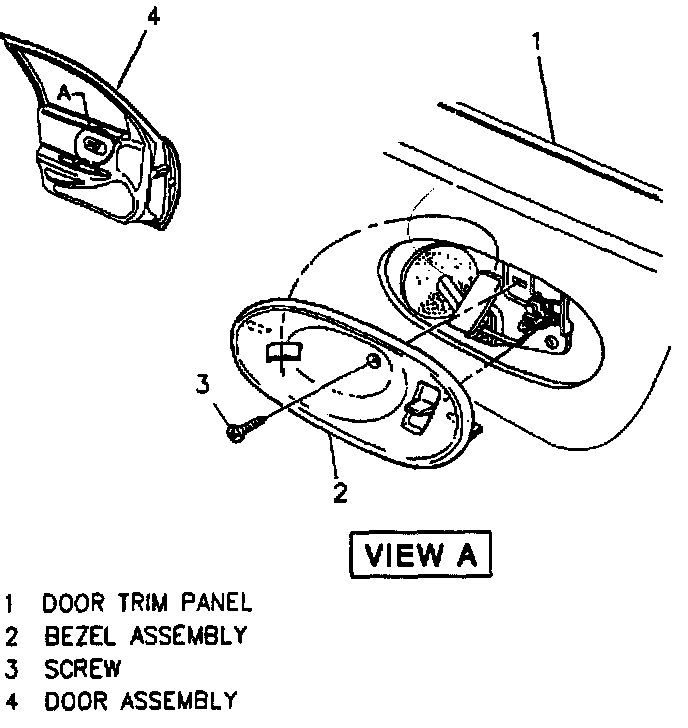

Inside Handle Bezel

Inside Handle Bezel:

Remove or Disconnect

1. Screw.
2. Bezel.
3. Electrical connector.

Install or Connect

1. Electrical connector.
2. Position bezel to trim panel.
3. Screw.

Tighten
- Screw to 1.9 N.m (17 lb in).
