Cutlass Supreme V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body and Frame
>>
System Diagram
>>
Body Harness
Body Harness

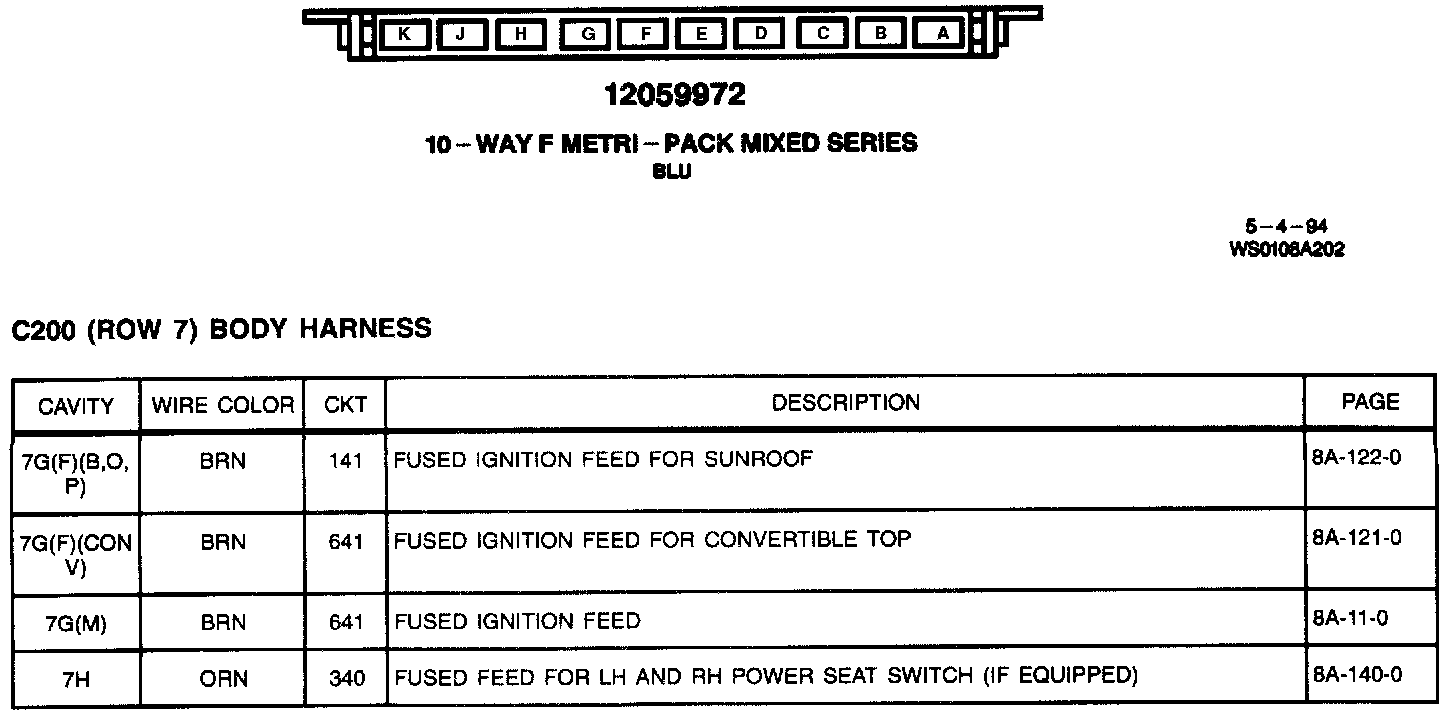

C200 (Row 7): Body Harness:
