Engine - Revised Misfire Diagnosis Chart

File In Section: 6E - Engine Fuel & Emission

Bulletin No.: 61-65-34

Date: July, 1996

SERVICE MANUAL UPDATE

Subject:
Section 6E3 - Driveability and Emissions - Revised Misfire Diagnosis Chart CA

Models:
1994-95 Chevrolet Lumina
1994-95 Oldsmobile Cutlass Supreme
1994-95 Pontiac Grand Prix with 3.4L Engine (VIN X - RPO LQ1)

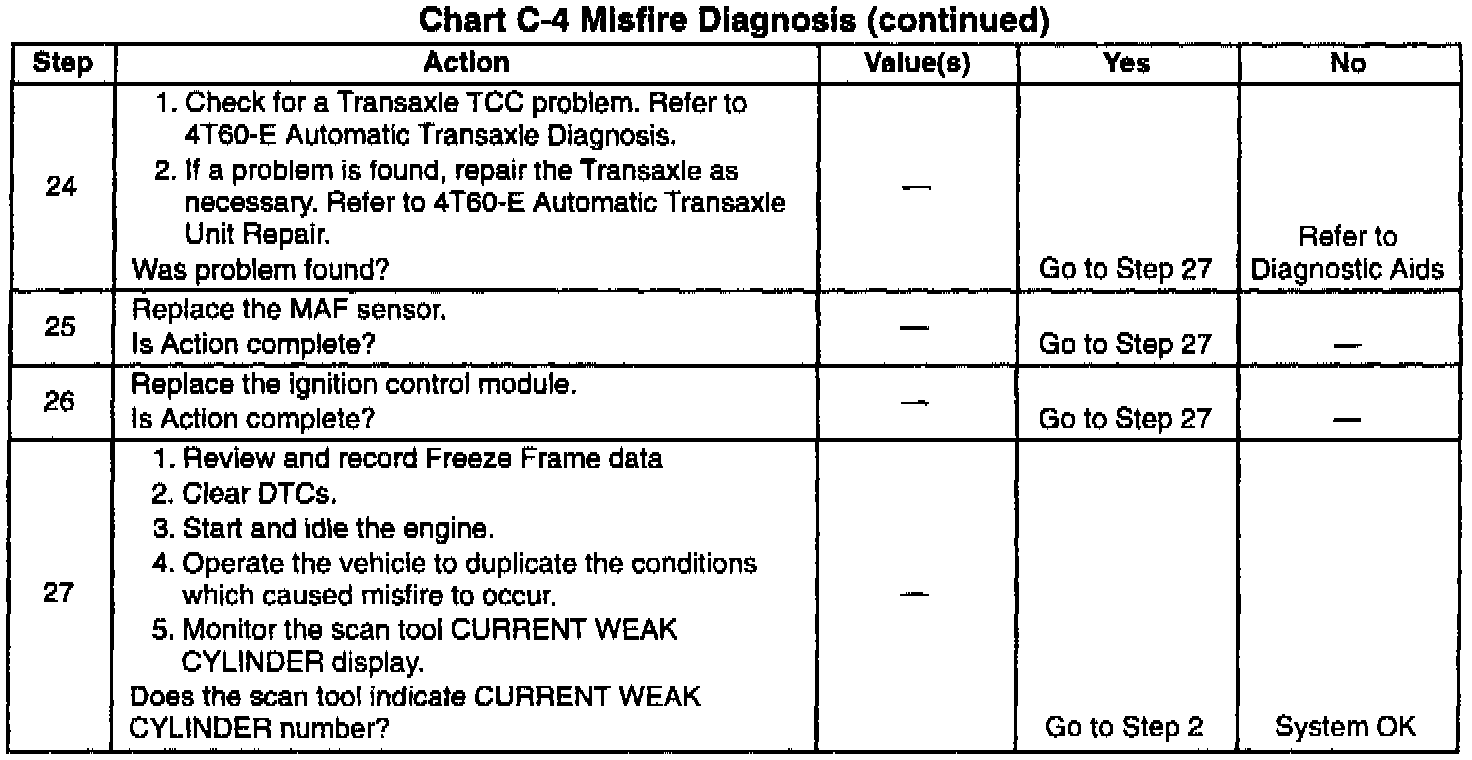

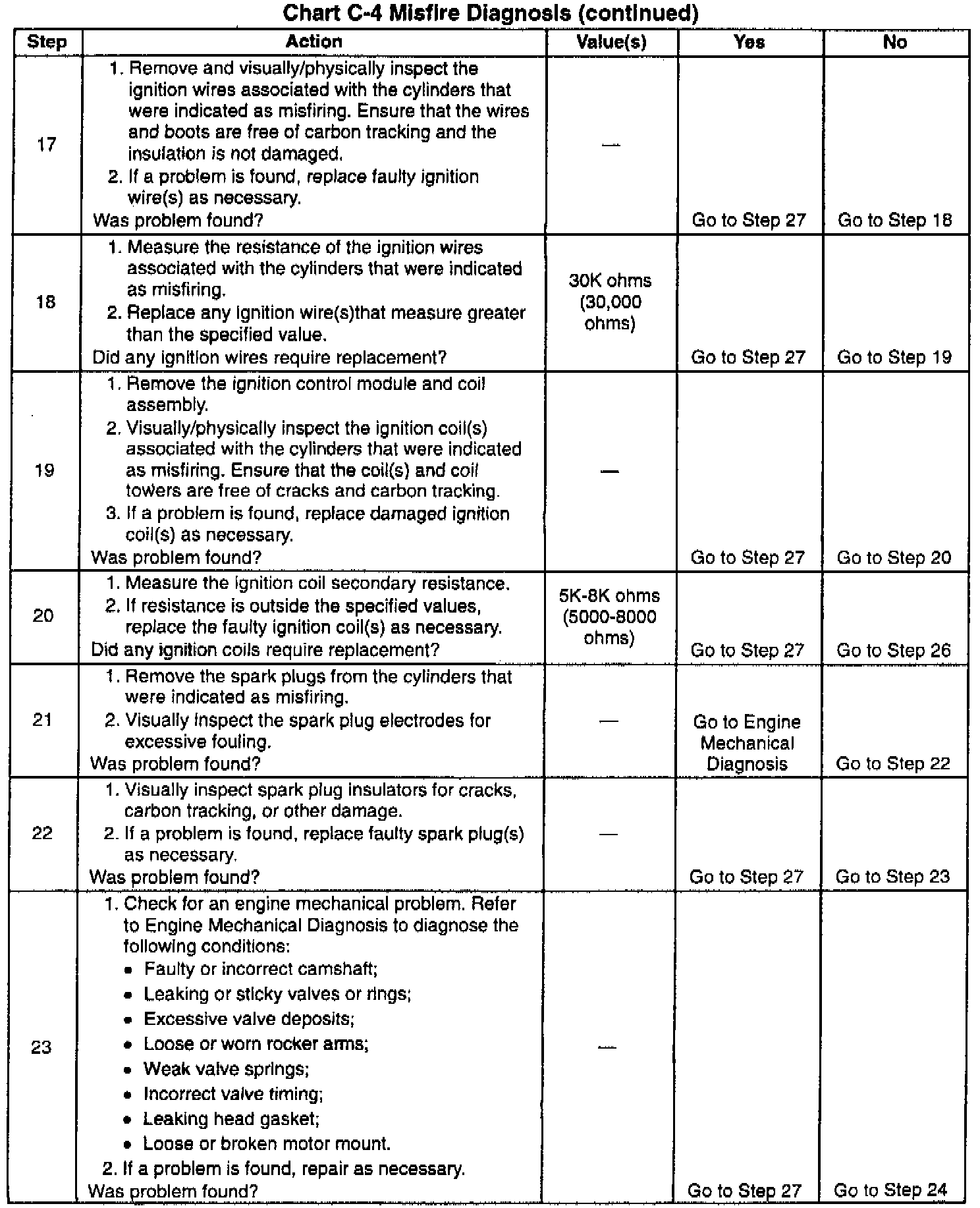

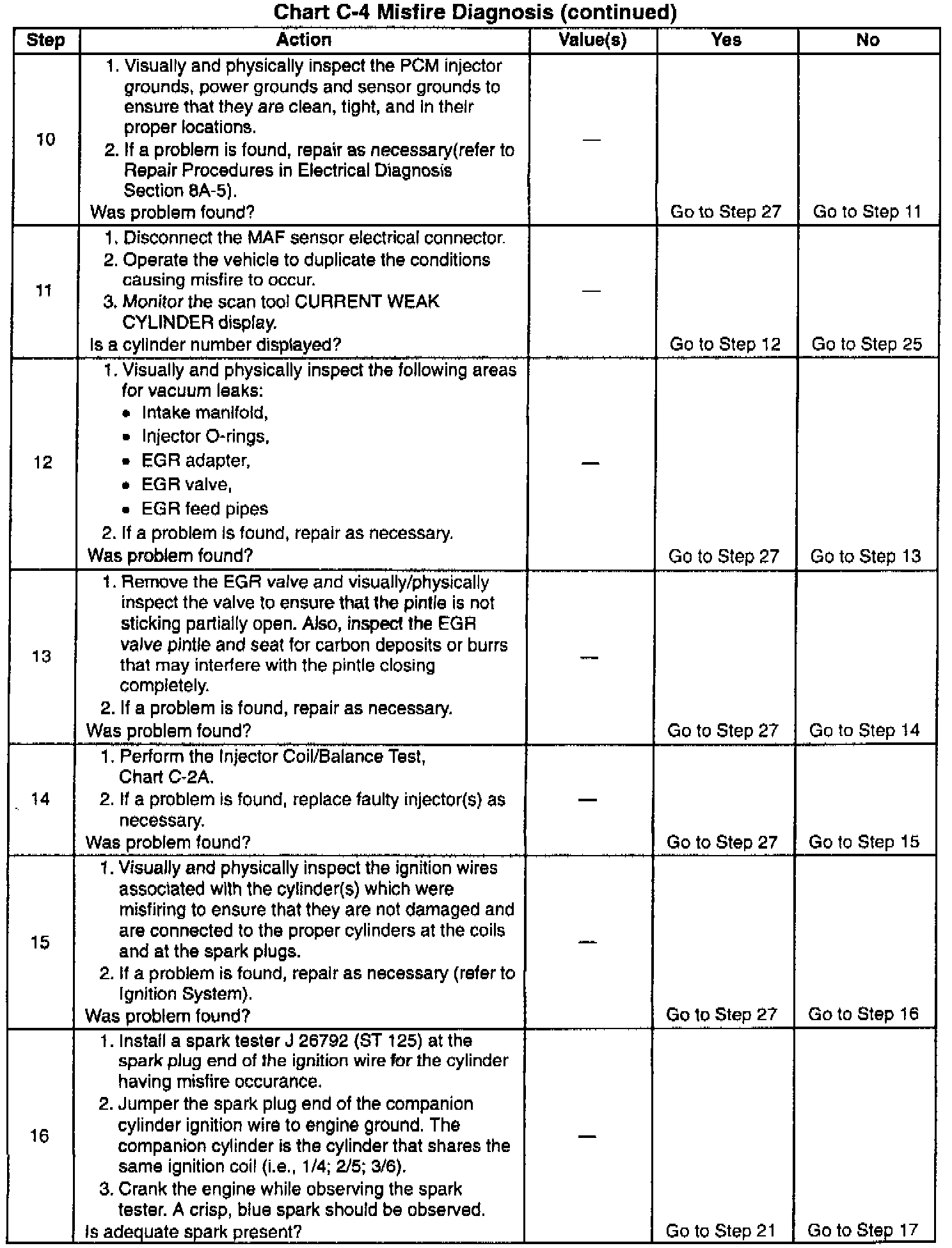

This bulletin is being issued to revise Misfire Diagnosis Chart C-4. The chart replaces the Misfire Diagnosis Chart C-4 for the listed models with 3.4L LQ1 engines (VIN X).
