Home
>>
Oldsmobile
>>
1995
>>
Cutlass Ciera Cruiser V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
HVAC Controls
HVAC Controls

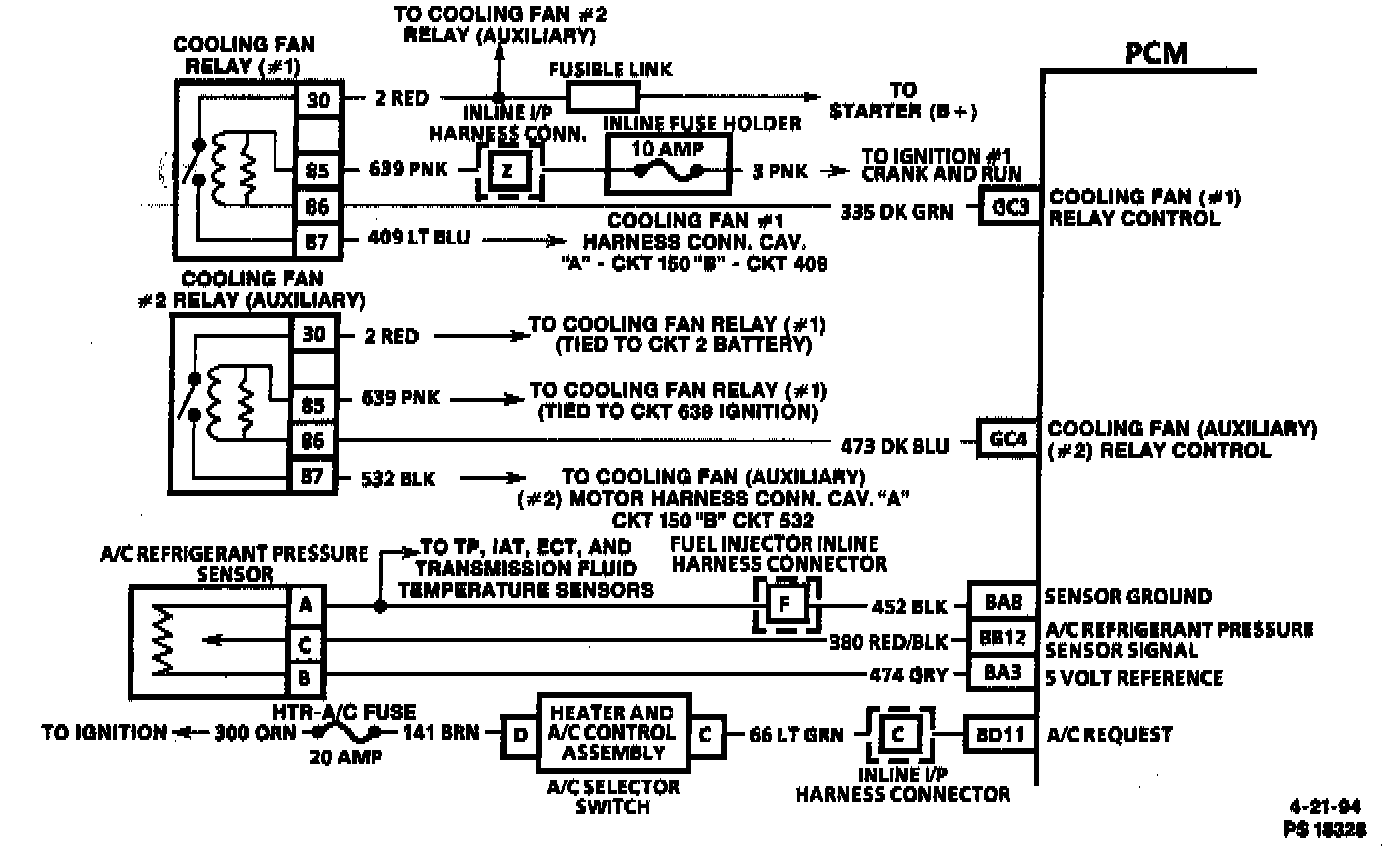

Cooling Fan Schematic:
