Accelerator Cable Bracket

Accelerator Cable Bracket / MAP Sensor Removal:

REMOVE AND INSTALL

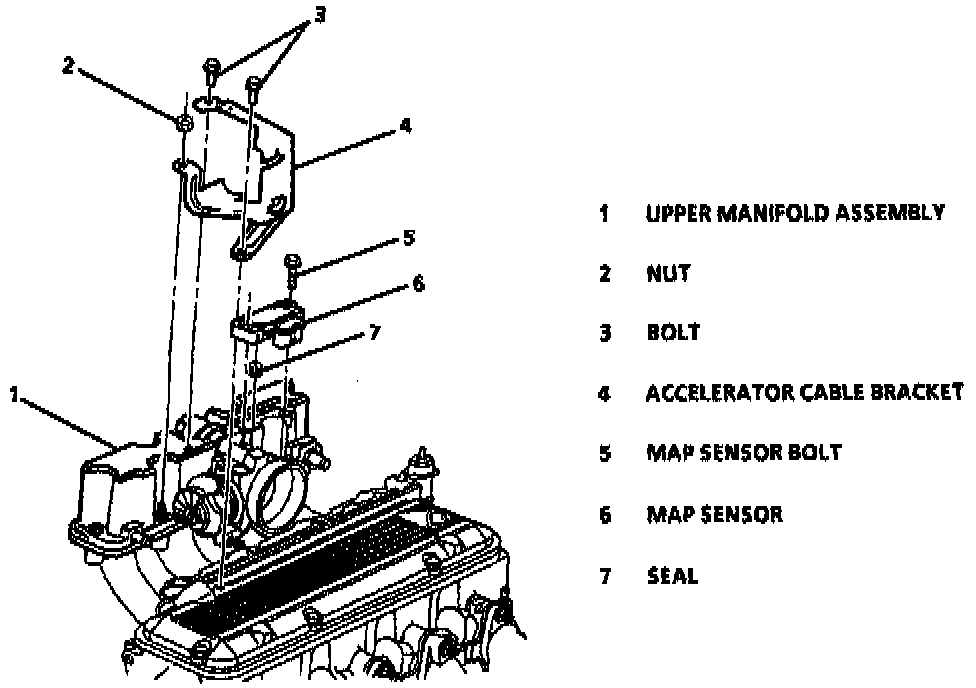

Remove and install bracket and attaching hardware as shown in image.

Tighten
Bracket bolts and nut to 25 Nm (18 lb. ft.).
