Evaporative Emission Control Canister: Service and Repair

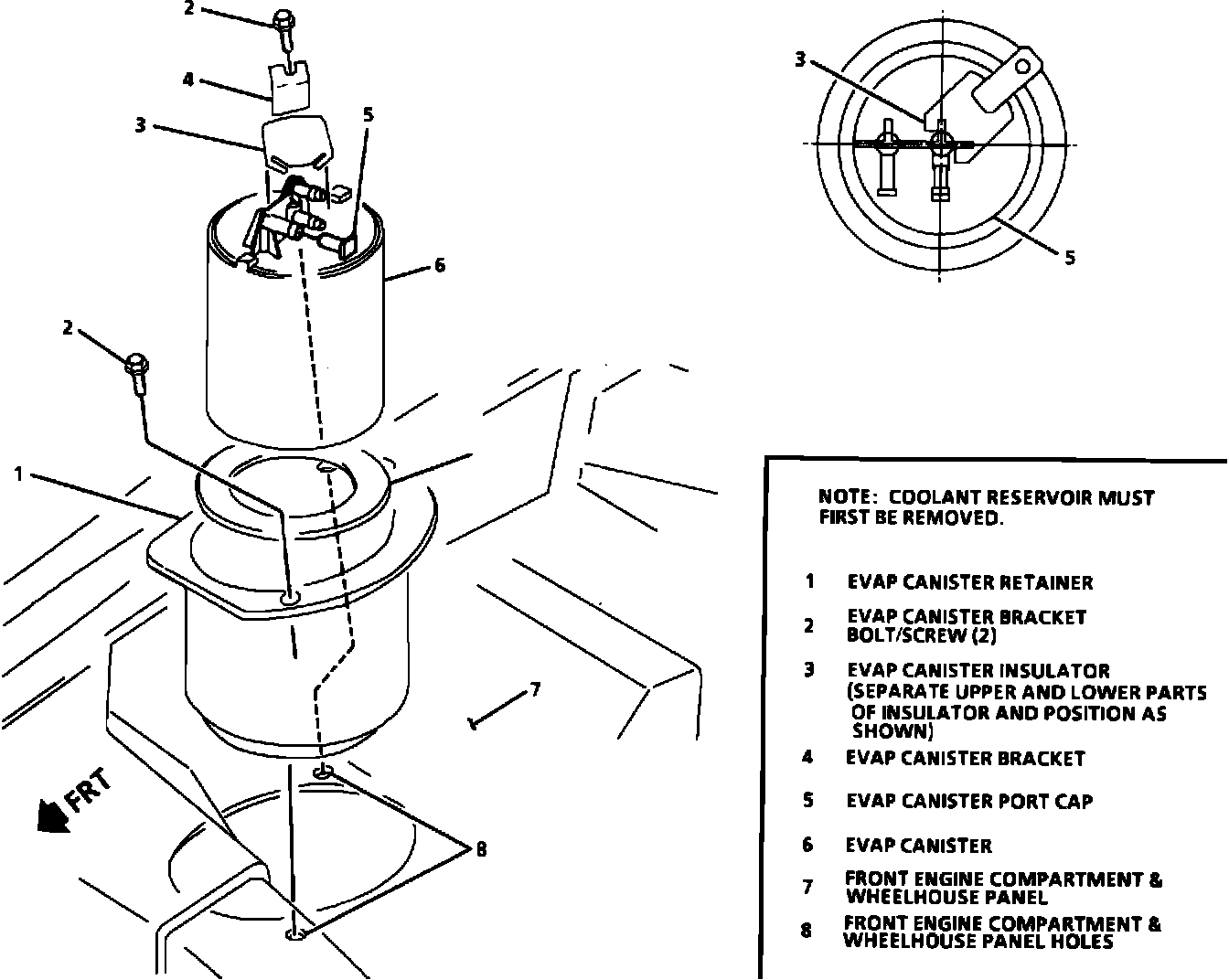

Evaporative Emission Canister:

REMOVE OR DISCONNECT
1. Radiator surge tank.
2. Vacuum hoses from Evaporative Emissions (EVAP) canister.
3. EVAP canister.

INSTALL OR CONNECT
1. EVAP canister.

Tighten
EVAP canister bolts / screws to 4 Nm (35.5 lb. in.).

2. Vacuum hoses.
3. Radiator surge tank.
