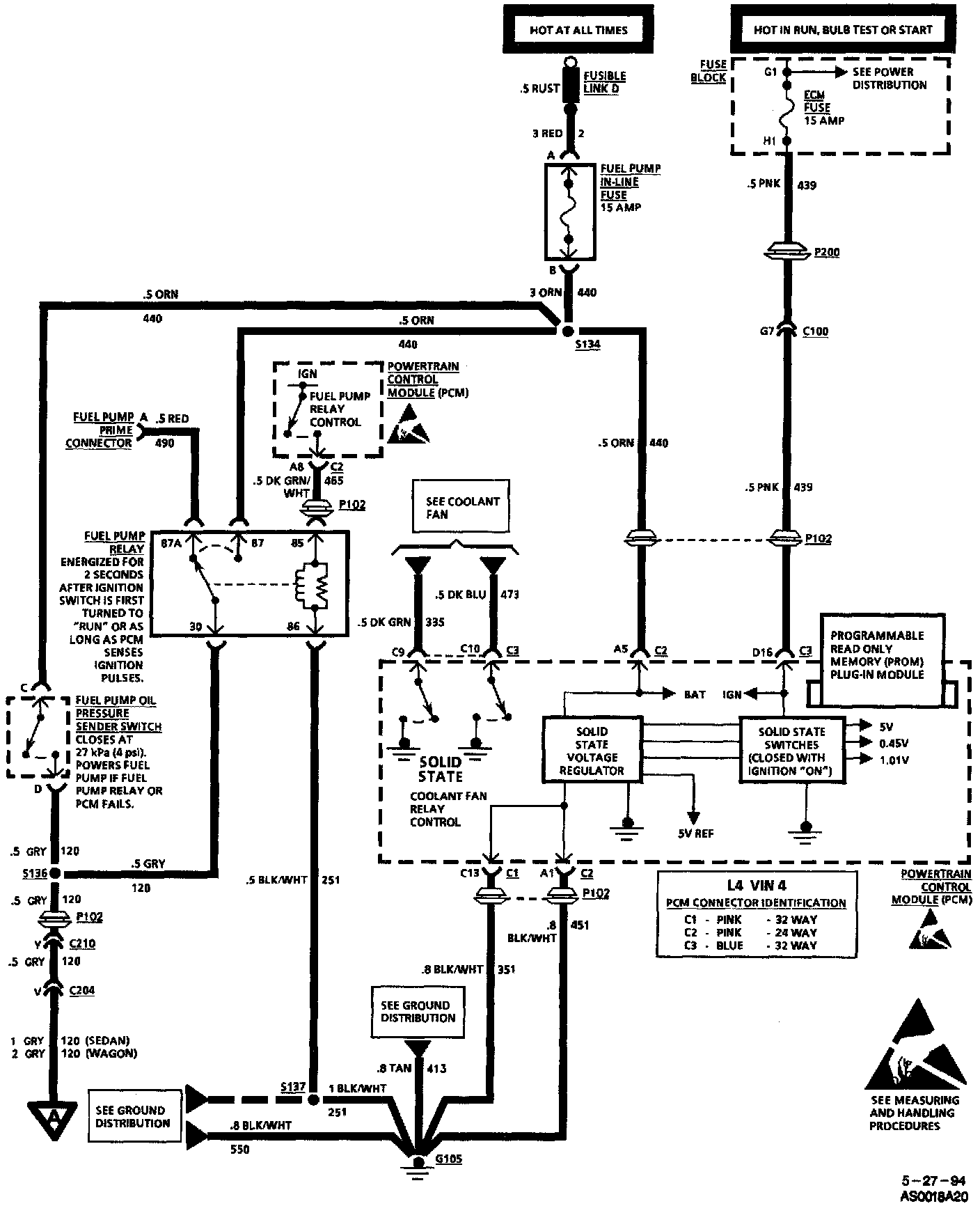

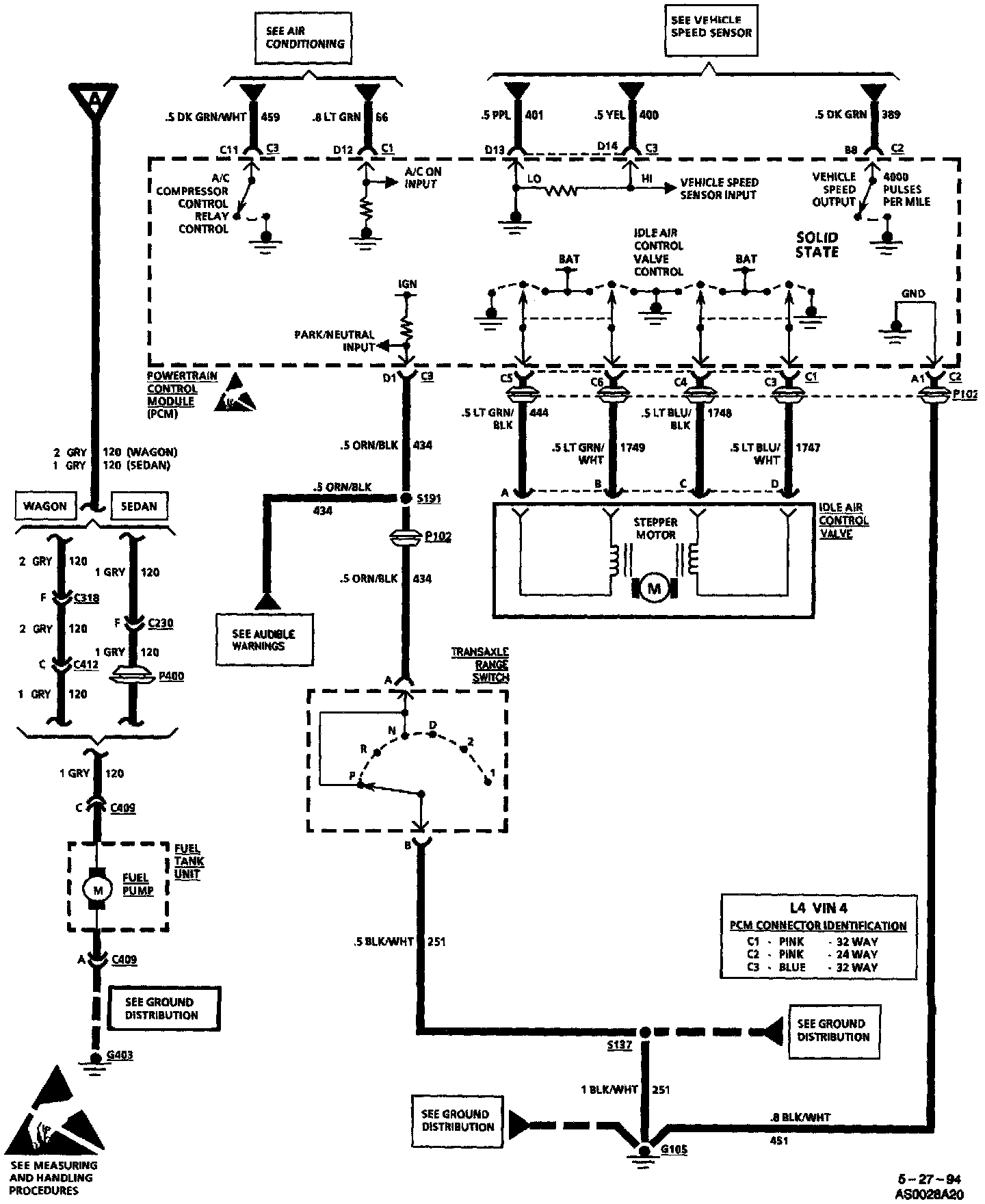

Power, Grounds and Fuel Control

Power, ground And Fuel Control:

Power, ground And Fuel Control:

This diagram is one part of the Complete set of Powertrain Wiring Diagrams located under Powertrain Management. Refer to this area if you need the accompanying diagrams. Powertrain Management
