Home >> Oldsmobile >> 1995 >> Cutlass Ciera Cruiser L4-2.2L VIN 4 >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Fuses >> INST LPS Fuse

INST LPS Fuse

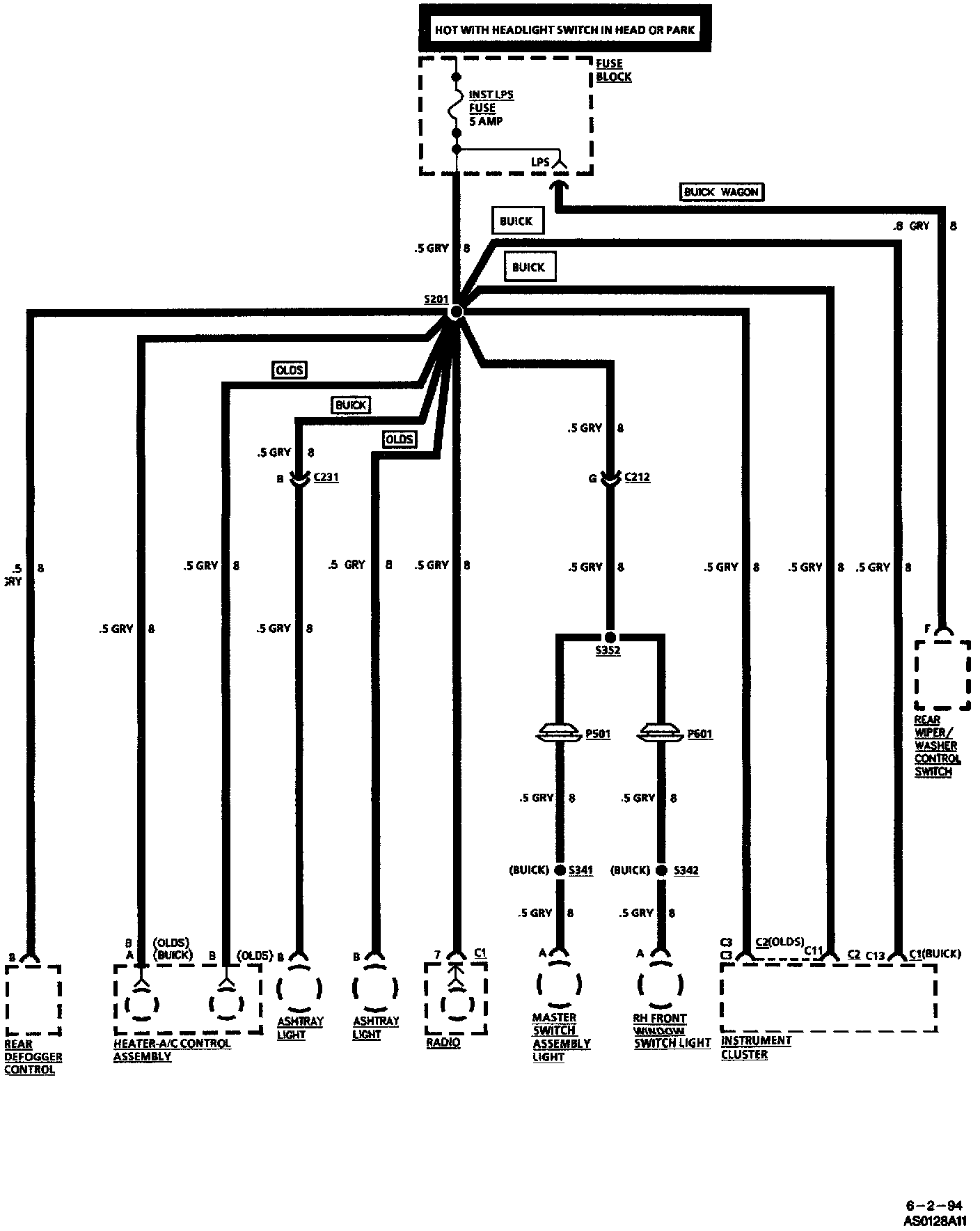

Inst Lps Fuse:
