Home >> Oldsmobile >> 1995 >> Cutlass Ciera Cruiser L4-2.2L VIN 4 >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Fuses >> CTSY Fuse

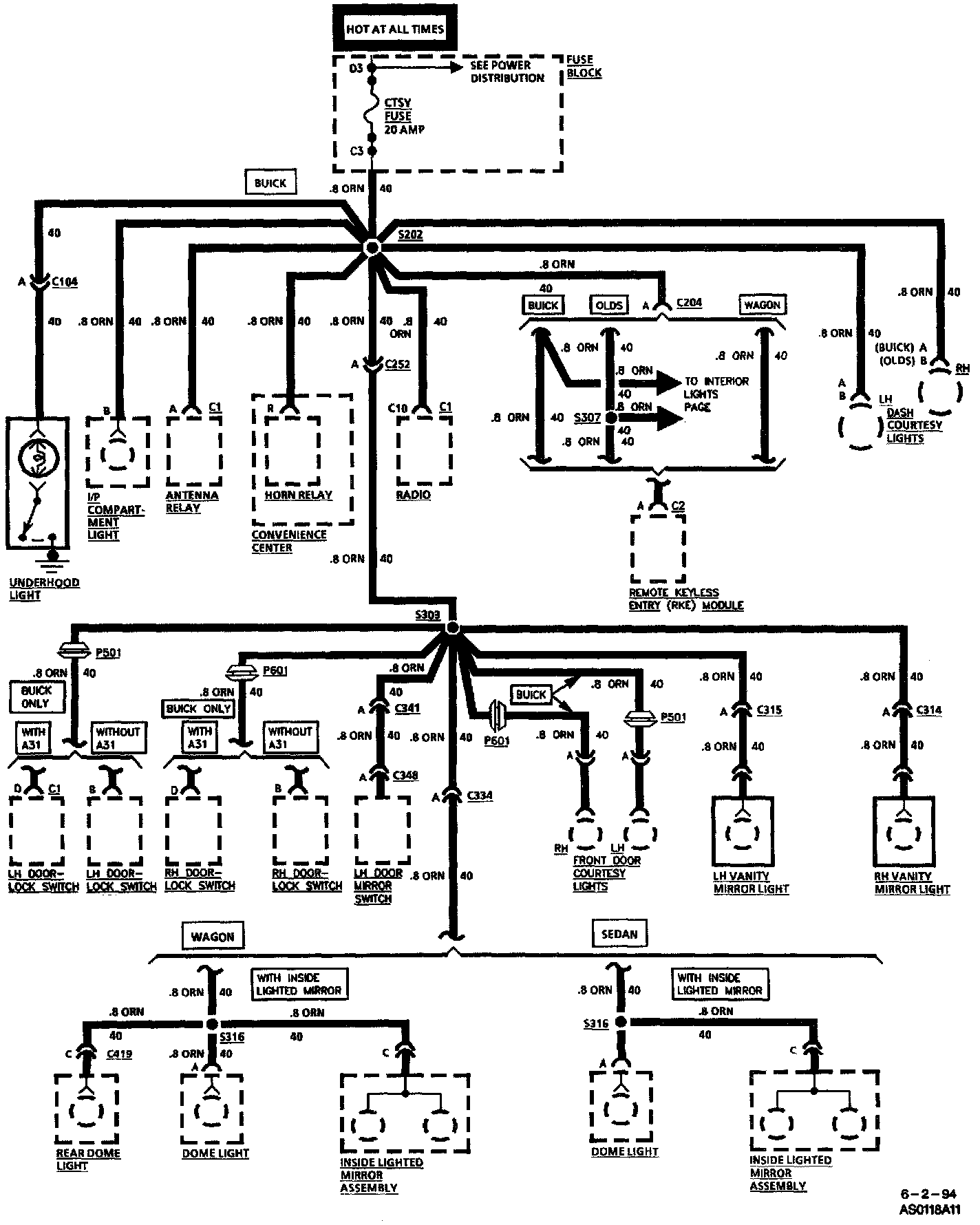

CTSY Fuse

CTSY Fuse:
