Fuel Level Sensor Replacement

Fuel Level Sensor:

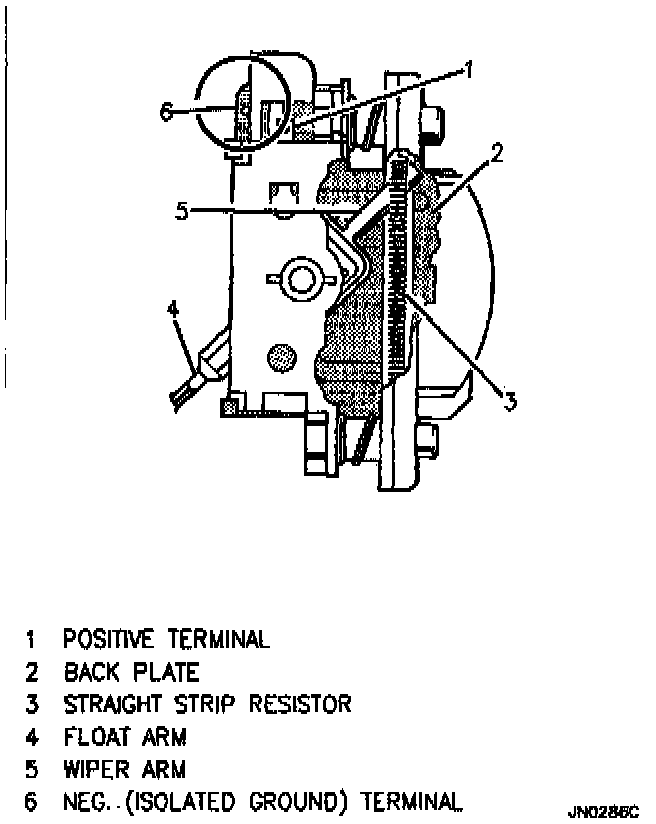

Modular Sender:

REMOVE OR DISCONNECT
1. Relieve fuel system pressure. Refer to Fuel System / Service and Repair.
2. Drain fuel tank.
3. Fuel tank.
4. Modular fuel sender assembly.
5. Fuel level sensor from modular fuel sender.

INSTALL OR CONNECT
1. Fuel level sensor to modular fuel sender.
2. Modular fuel sender assembly.
3. Fuel tank.
4. Refill tank.

INSPECT
Turn ignition to "ON" position for two seconds, then turn to "OFF" for ten seconds. Again turn to "ON" position, and check for fuel leaks.
