Evaporative Emission Control Canister: Service and Repair

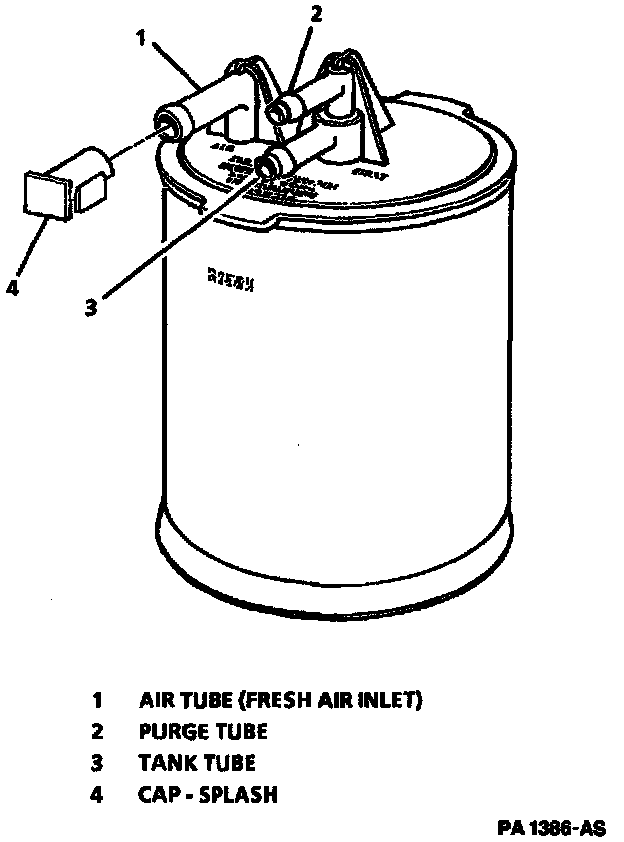

Evaporative Emission Canister:

EVAP Canister Purge Solenoid Valve Assembly:

REMOVE OR DISCONNECT
1. Remove radiator surge tank.
2. Hoses from evaporative emissions (EVAP) canister. Mark hoses to install on new canister.
3. Canister.

INSTALL OR CONNECT
1. EVAP canister as removed.
2. Hoses. Make sure connections are correct.
3. Radiator surge tank.
