Ignition Controls
Ignition Controls
Ignition:

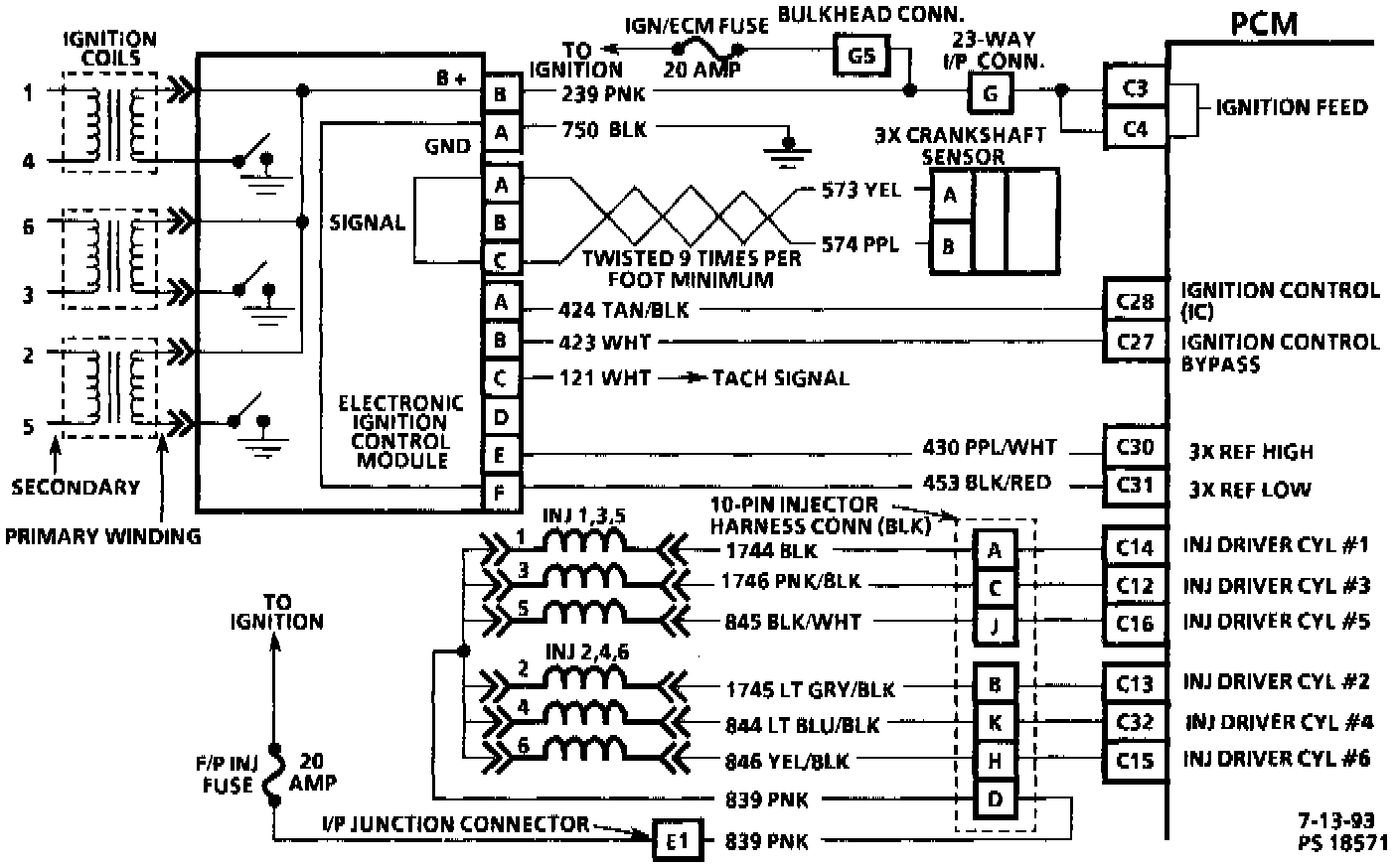

Ignition & Fuel Injection Wiring:

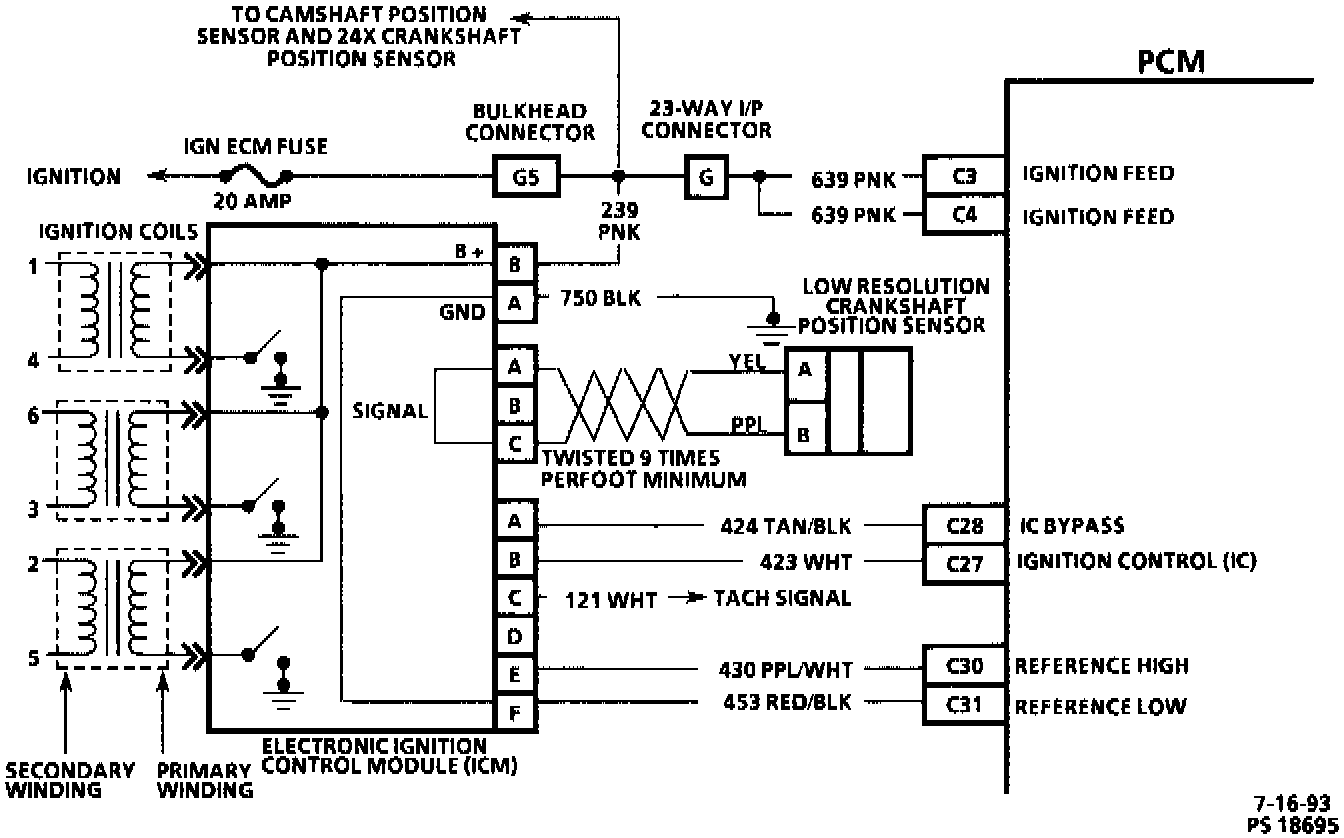

Ignition Wiring Schematic:
