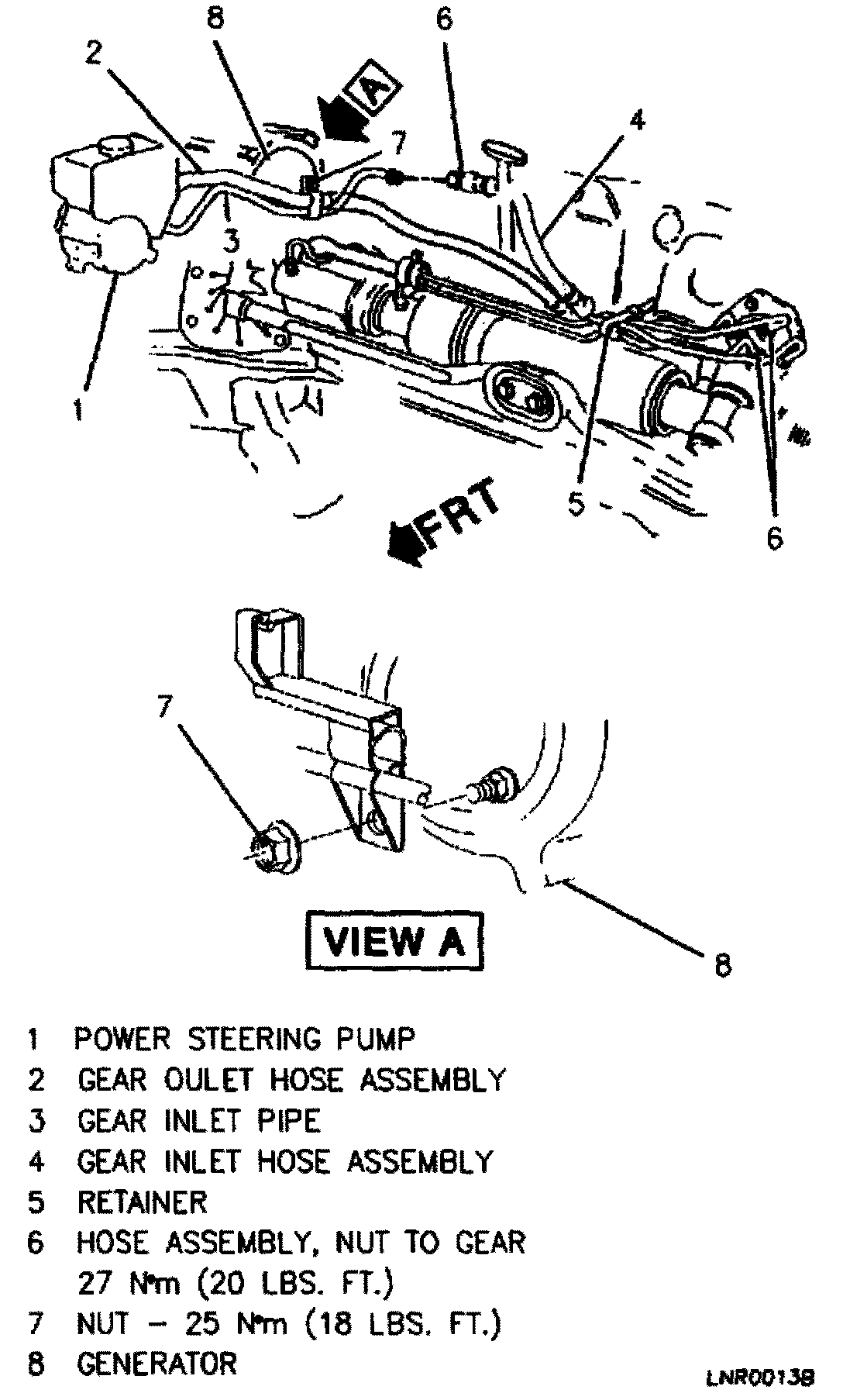

Gear Outlet Hose

GEAR OUTLET HOSE

Remove or Disconnect

1. Gear outlet hose from pump reservoir after sliding spring hose clamp from inlet reservoir tube.
2. Line retainer (if applicable).
3. Gear inlet pipehose from rack and pinion steering gear.
4. Rack and pinion steering gear clamp nuts and slide rack forward.
5. Gear outlet hose from rack and pinion steering gear.
6. Slide outlet hose through clip to remove.
7. Gear outlet hose from vehicle.

Install or Connect

1. Gear outlet hose into position on vehicle.
2. Gear outlet pipe to rack and pinion steering gear.

Tighten
Pipe to 27 Nm (20 lbs. ft.).

3. Rack and pinion steering gear clamp nuts after repositioning rack.

Tighten
Nuts to 30 Nm (22 lbs. ft.).

4. Gear inlet pipehose to rack and pinion steering gear.

Tighten
Pipe to 27 Nm (20 lbs. ft.).

5. Line retainer (if applicable).
6. Gear outlet hose to pump reservoir and spring clamp.

^ Bleed air from system.

Inspect
^ For leaks.
