Pinout Description

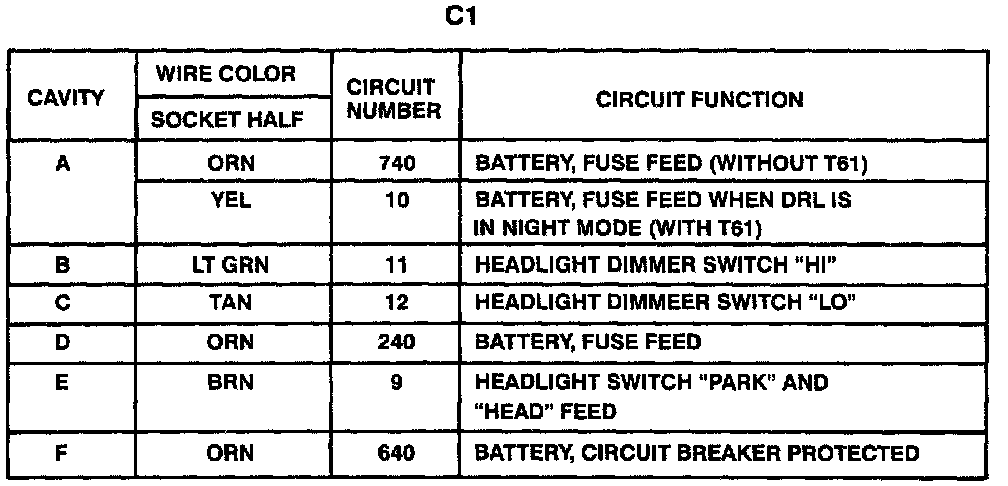

Turn/Hazard-Headlight Switch Assembly : C1:

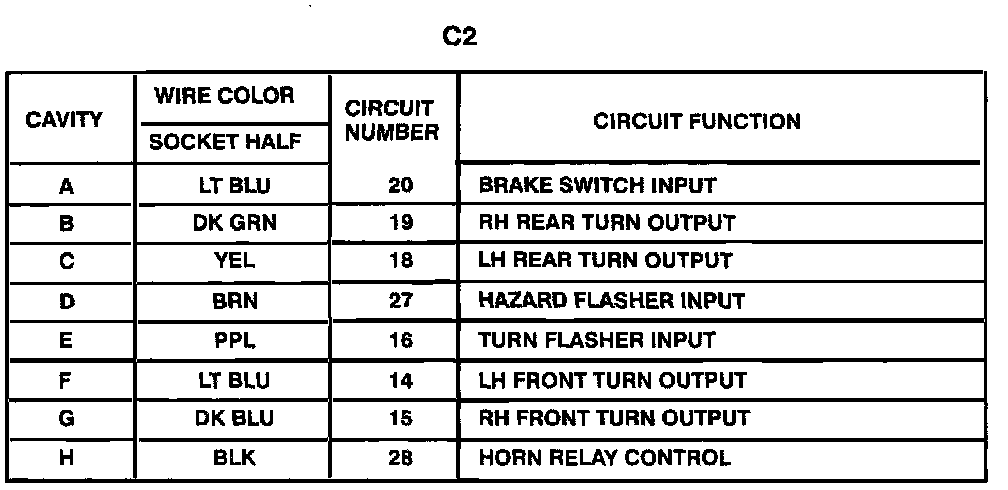

Turn/Hazard-Headlight Switch Assembly : C2:
