Achieva V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Generator
Generator

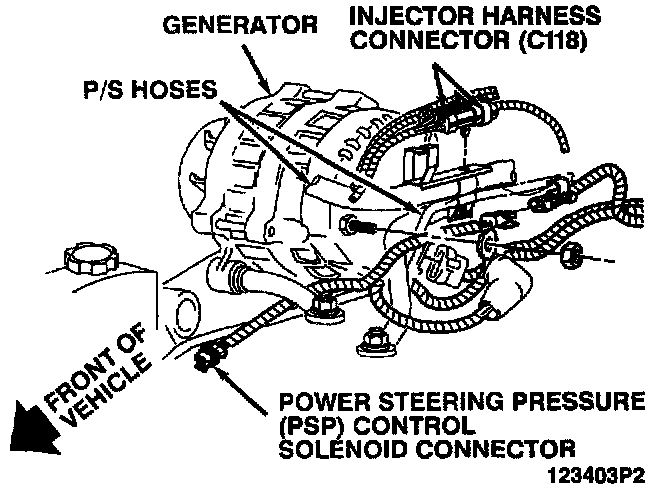

RH Rear Of Engine Compartment:

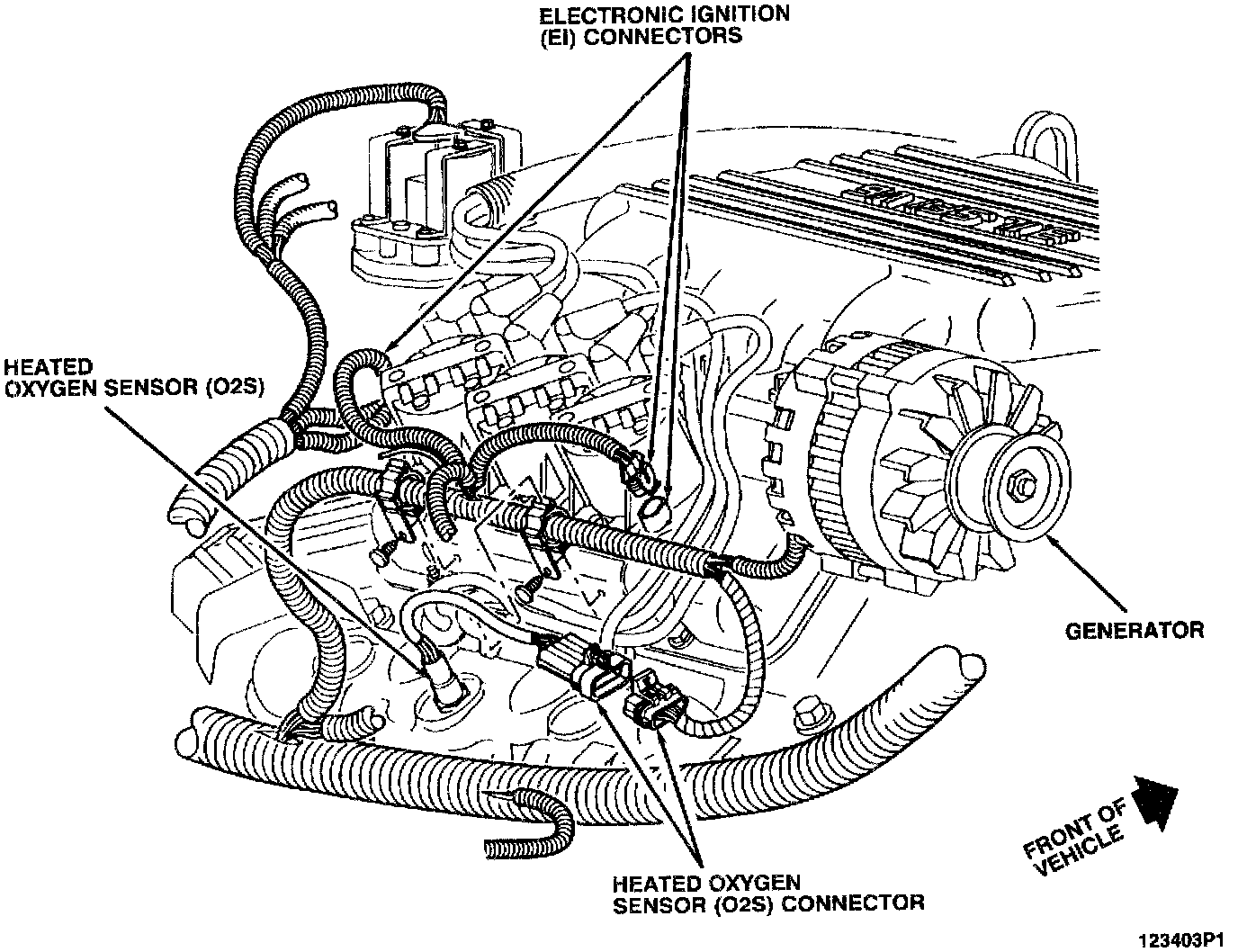

RH Front Of Engine Compartment:
