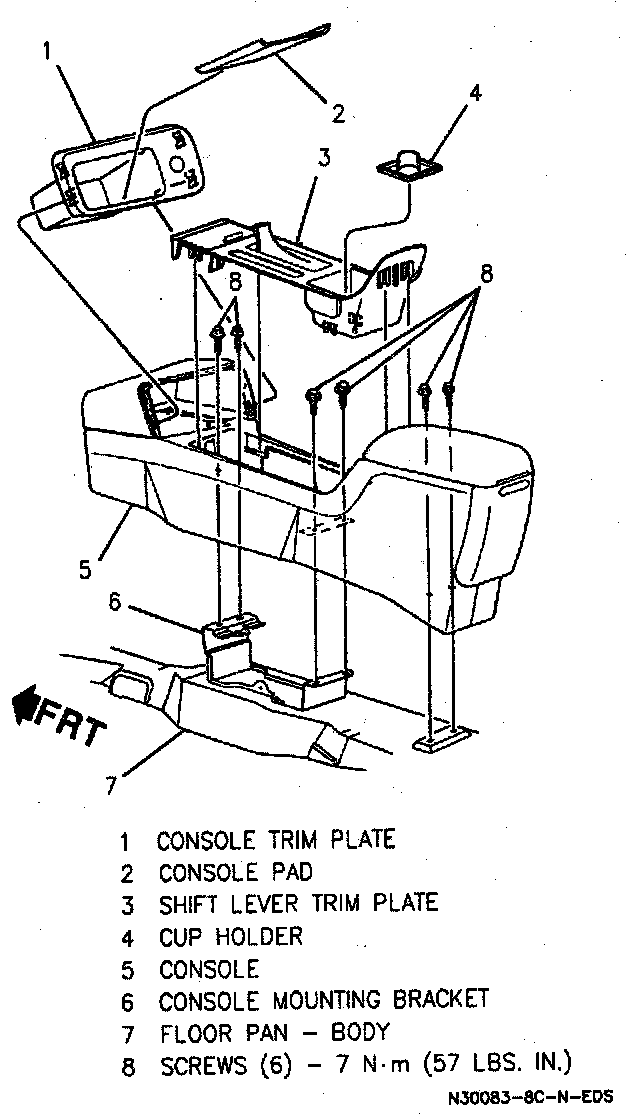

Console Trim Plate

Console Trim:

Remove or Disconnect

1. Block wheels and set parking brake.
2. Shift lever to "Neutral".
3. Negative battery cable.
4. Shift lever handle.
5. Carefully pry upward on outside edges of trim plate.

Install or Connect

1. Align console retainers to console boles. Press downward.
2. Shift lever handle.
3. Negative battery cable.
4. Shift lever to "Park".
5. Wheel blocks.
