Ninety-Eight V6-3800 3.8L Supercharged
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Harness Connector
Harness Connector

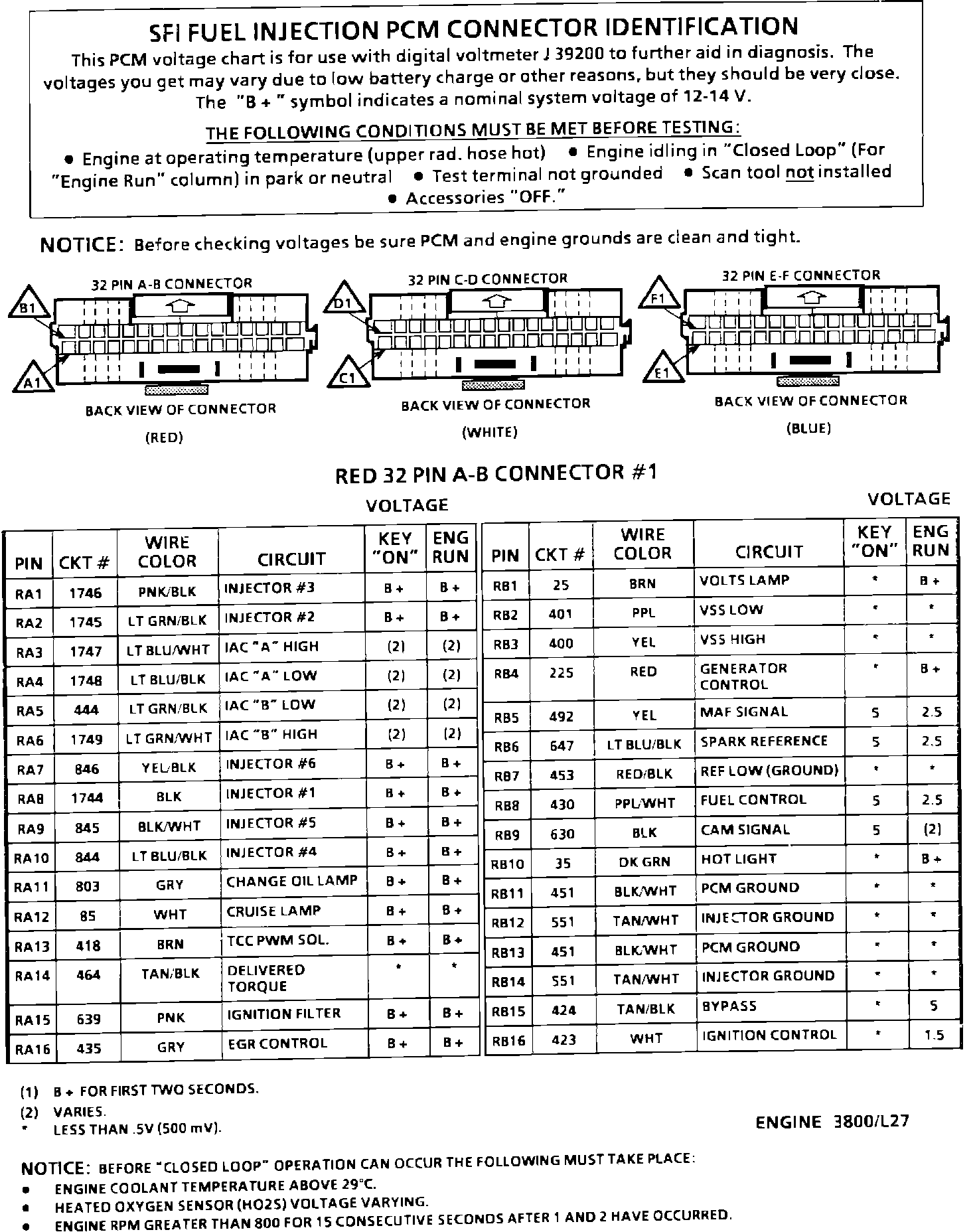

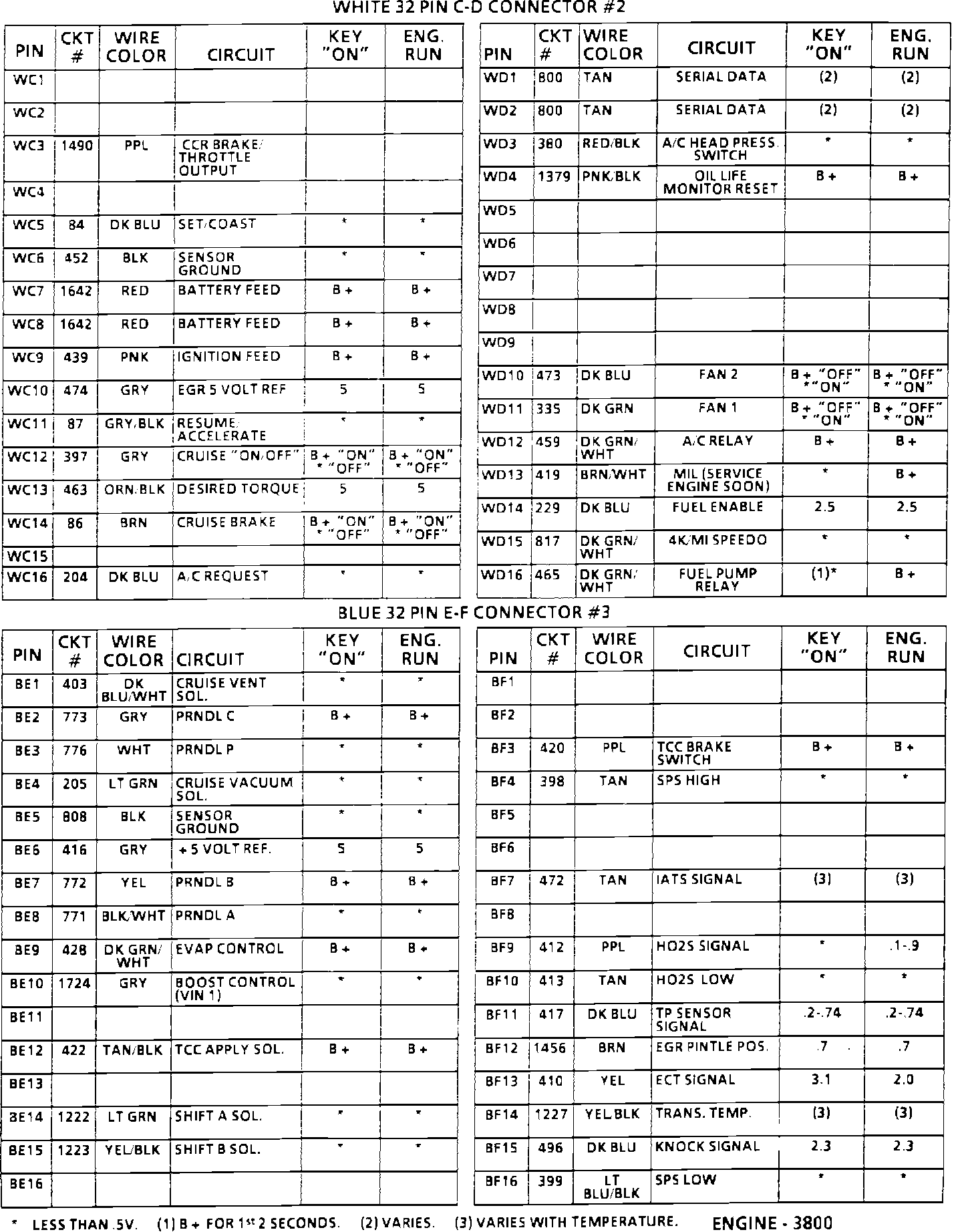

PCM Terminal Voltages:
PCM Terminal Voltages:
