Home >> Oldsmobile >> 1994 >> Ninety-Eight V6-3800 3.8L Supercharged >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector C3 >> Pinout Description

Pinout Description

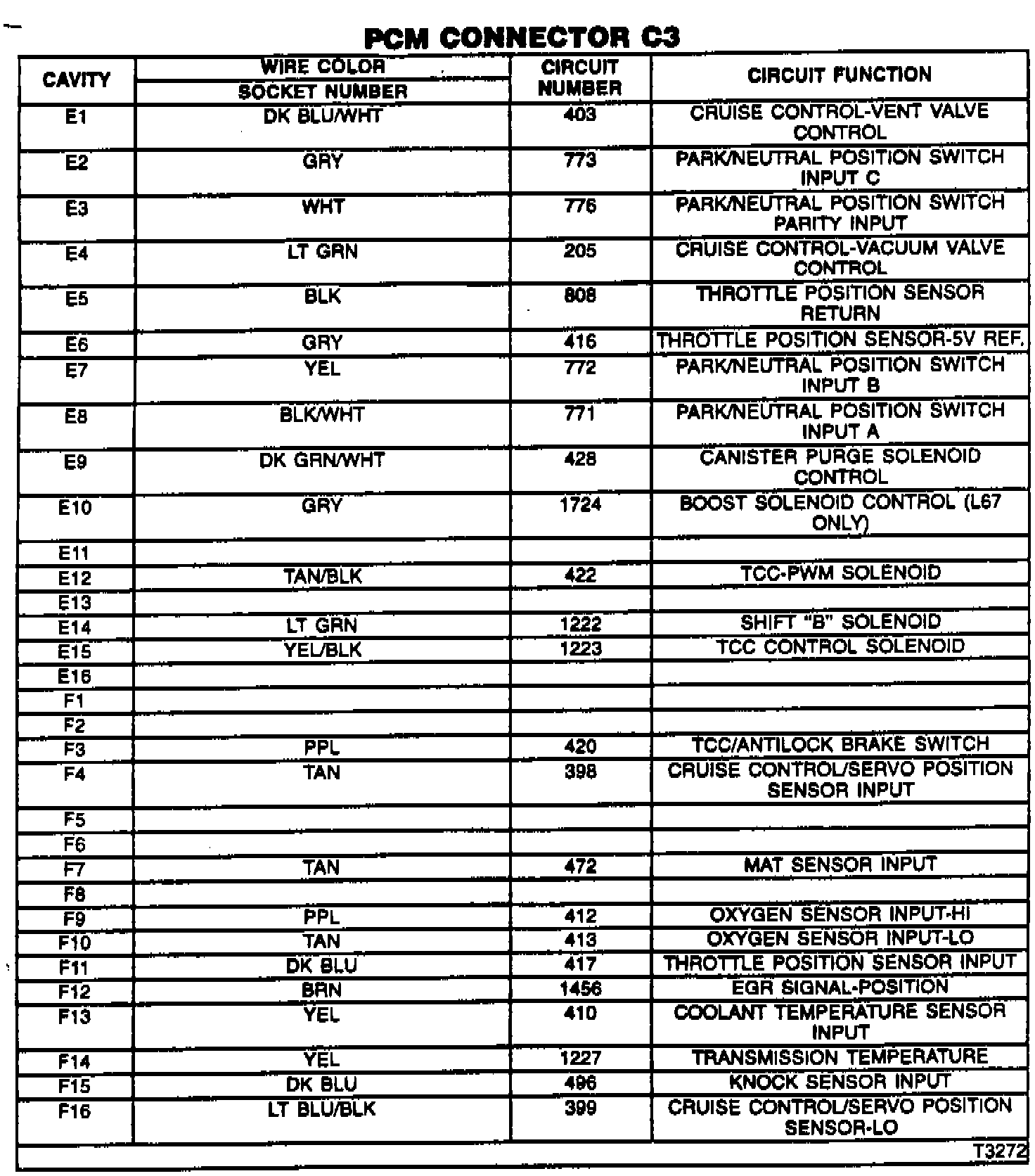

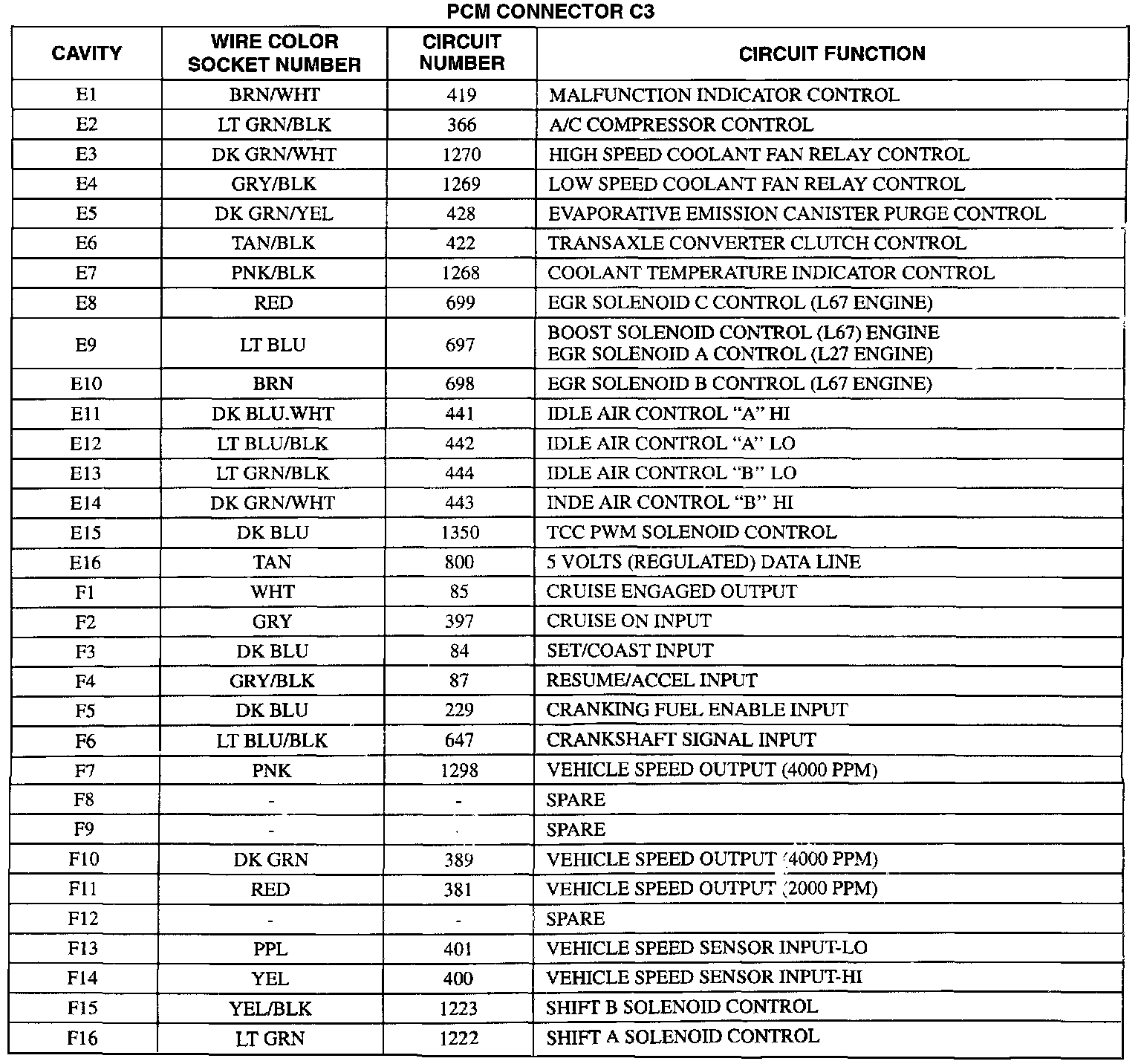

PCM Connector: C3:
