Expansion Block/Orifice Tube: Locations

Expansion Orifice Tube:

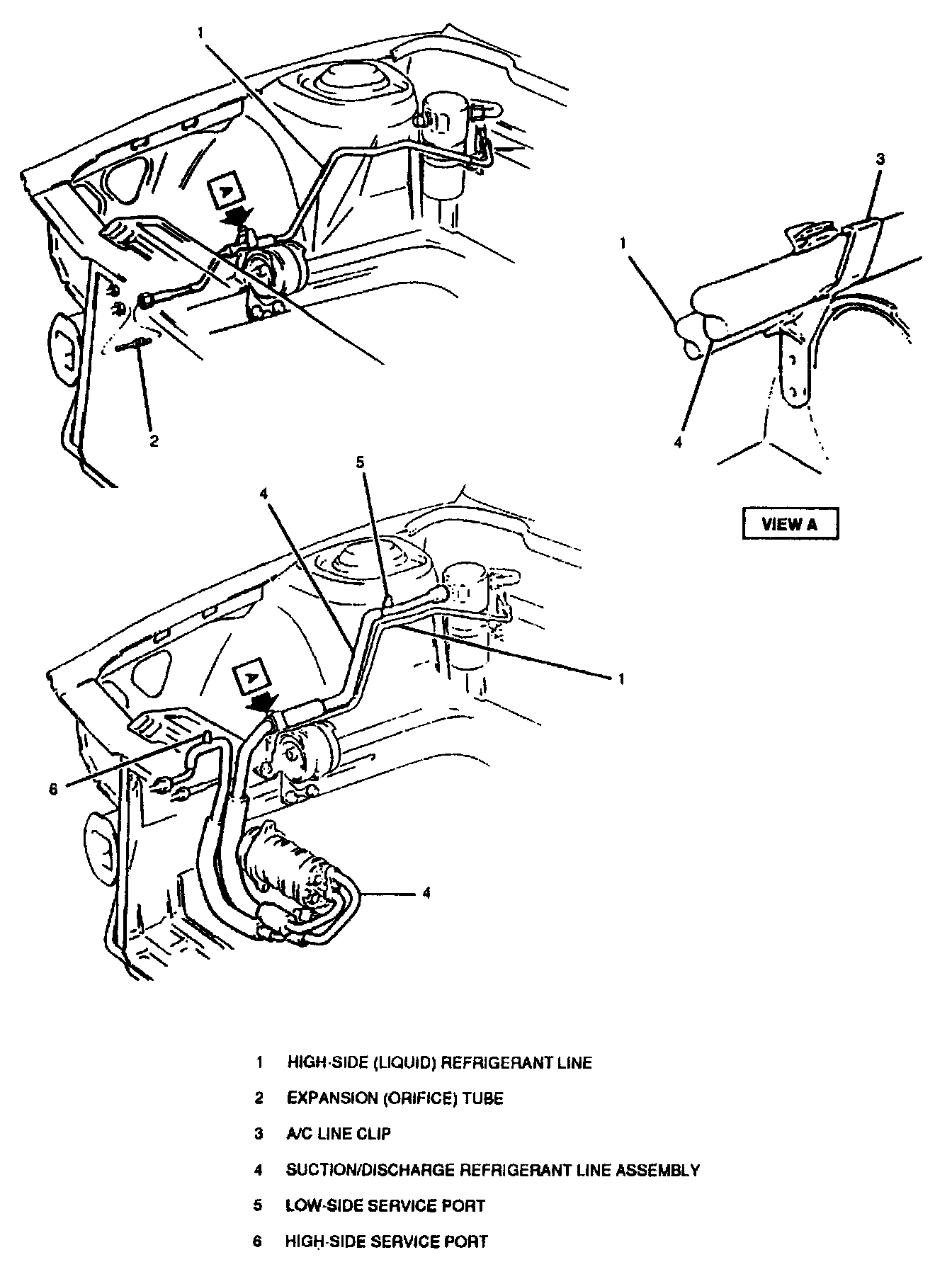

A/C Line Routing:

The expansion tube is installed inside the evaporator inlet refrigerant line where it connects to the condenser outlet.
