Service Procedure, Campaign ID Label, Claim Information

SERVICE PROCEDURE

INSPECTION
1. Write down the owner's preset memory settings, which will be lost when the battery is disconnected, for reference later when resetting the memory functions. If a memory retention device is plugged into the cigarette lighter socket (such as "Memor-Eze", Snap-On Tool YA960, or Kent Moore Tools KS295A or BT 9027), this step can be omitted. Then, with the ignition in the "off" position, disconnect the negative battery cable.
2. Carefully pry one side of head/park lamp switch outward from trim plate using a .5 mm (0.02 in.) thick plastic card 55 mm (2.1 in.) wide (approximate size of credit card). Use care not to damage trim plate.
3. Pull switch out far enough to read switch build date code on side of plastic switch body. Build date code is stamped in blue on body and is a four (4) digit number below the eight (8) digit production part number.

^ If build date code is 4166 up to and including 4174, switch must be replaced. Proceed to step 4.

^ If build date code is 4165 or lower or 4175 or higher, switch does not need to be replaced. Carefully reset switch and proceed to step 7.

REPLACEMENT
4. To replace switch, pull switch out far enough to disengage connector.
5. Connect new switch to connector and carefully reset switch in trim plate.
6. Check new switch for proper operation.
7. Reconnect the negative battery cable. If a memory retention device was not used, reset (to the extent possible) all devices that lost their memory after the battery was disconnected.
8. Install a Campaign Identification Label.

CAMPAIGN IDENTIFICATION
Each label provides space to print the campaign number and the five (5) digit retailer code of the retailer performing the campaign. Insert this information with a typewriter or ball-point pen. When installing label, clean and dry the surface of the radiator support tie bar and apply the campaign label where it is readily visible.

Each Campaign Identification Label is to be located on the radiator core support in an area which will be visible when the vehicle is brought in for periodic servicing by the owner.





WARRANTY CLAIM INFORMATION

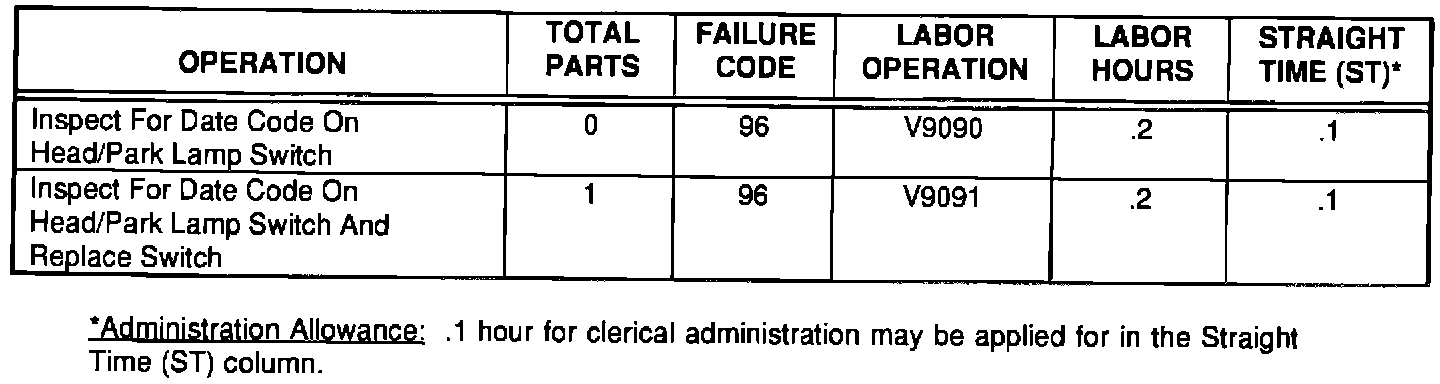

Submit claims using only one of the "V" labor-ops for each vehicle:

Parts Allowance:
Current retailer price, plus 40% allowance for handling.
