Home >> Oldsmobile >> 1994 >> Eighty-Eight Royale FWD V6-3800 3.8L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Power and Ground Distribution >> Relay Box >> Diagrams >> Electrical Diagrams >> Fuses 11, 2

Fuses 11, 2

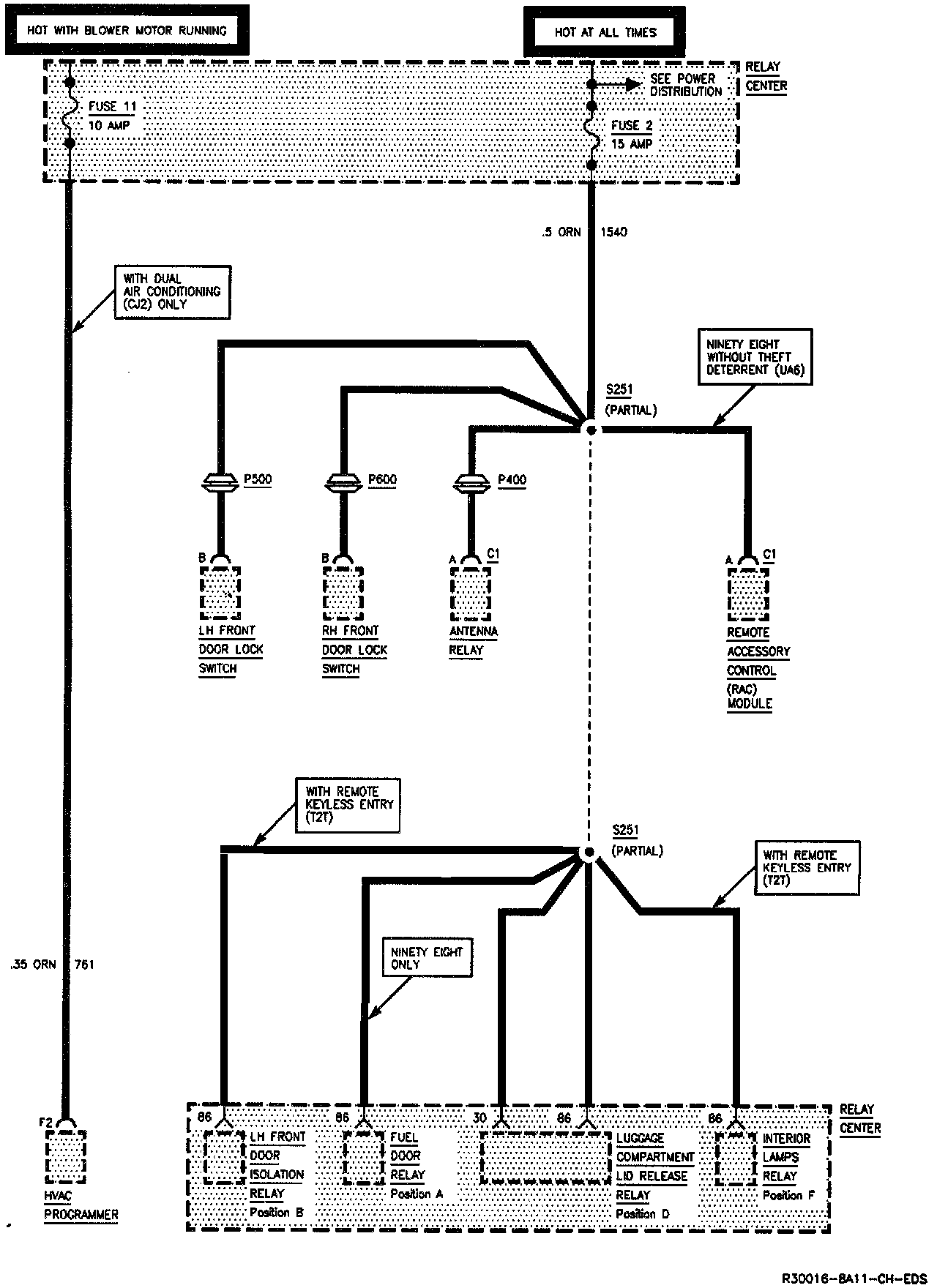

Relay Center Fuses 11 And 2:
