Oldsmobile
>>
1994
>>
Eighty-Eight Royale FWD V6-3800 3.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
I/P Fuse Block/Relay Center Details
>>
Fuses 9A, 9B
Fuses 9A, 9B

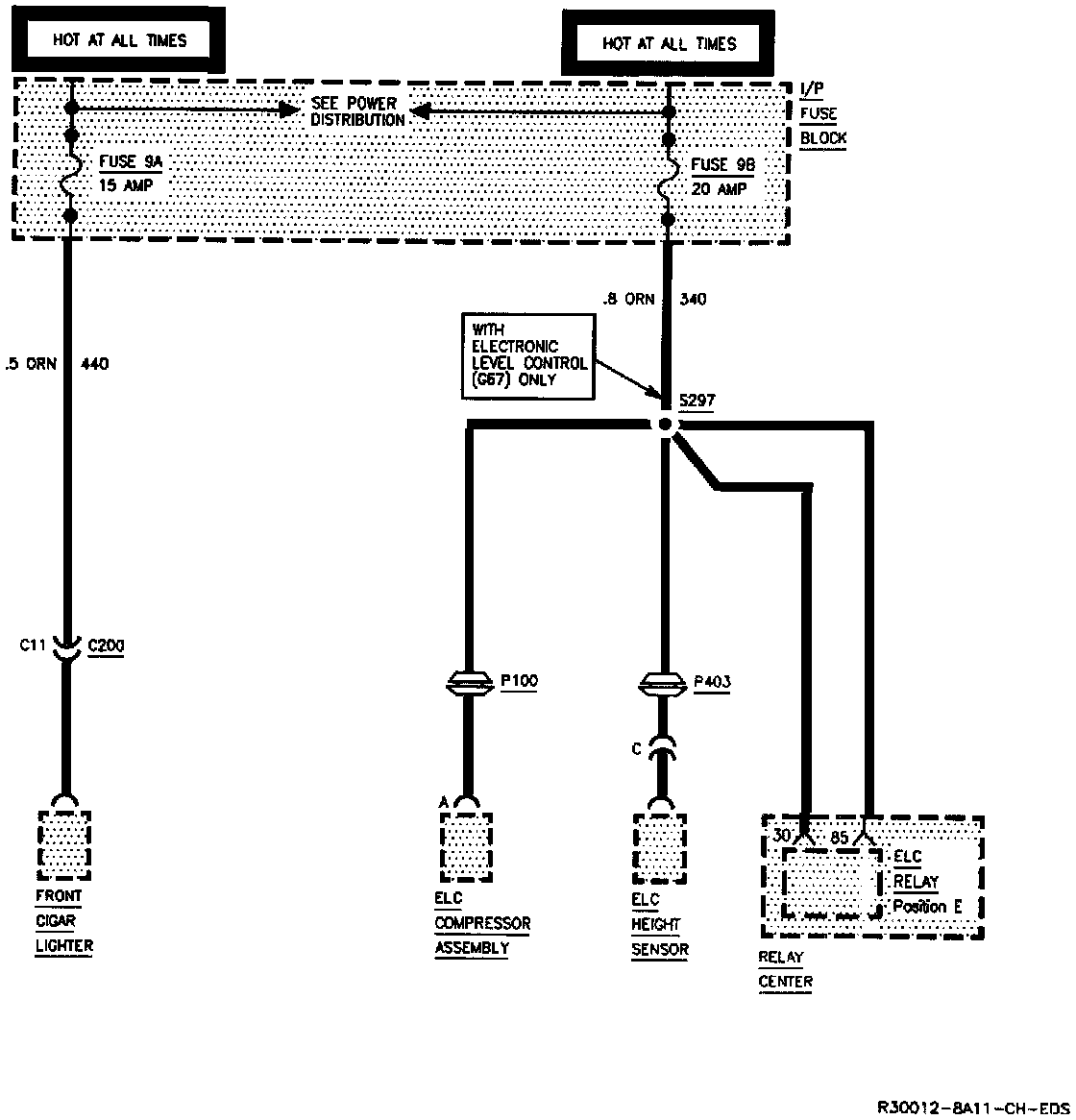

I/P Fuse Block Fuses 9A And 9B:
