Oldsmobile
>>
1994
>>
Eighty-Eight Royale FWD V6-3800 3.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G103
G103

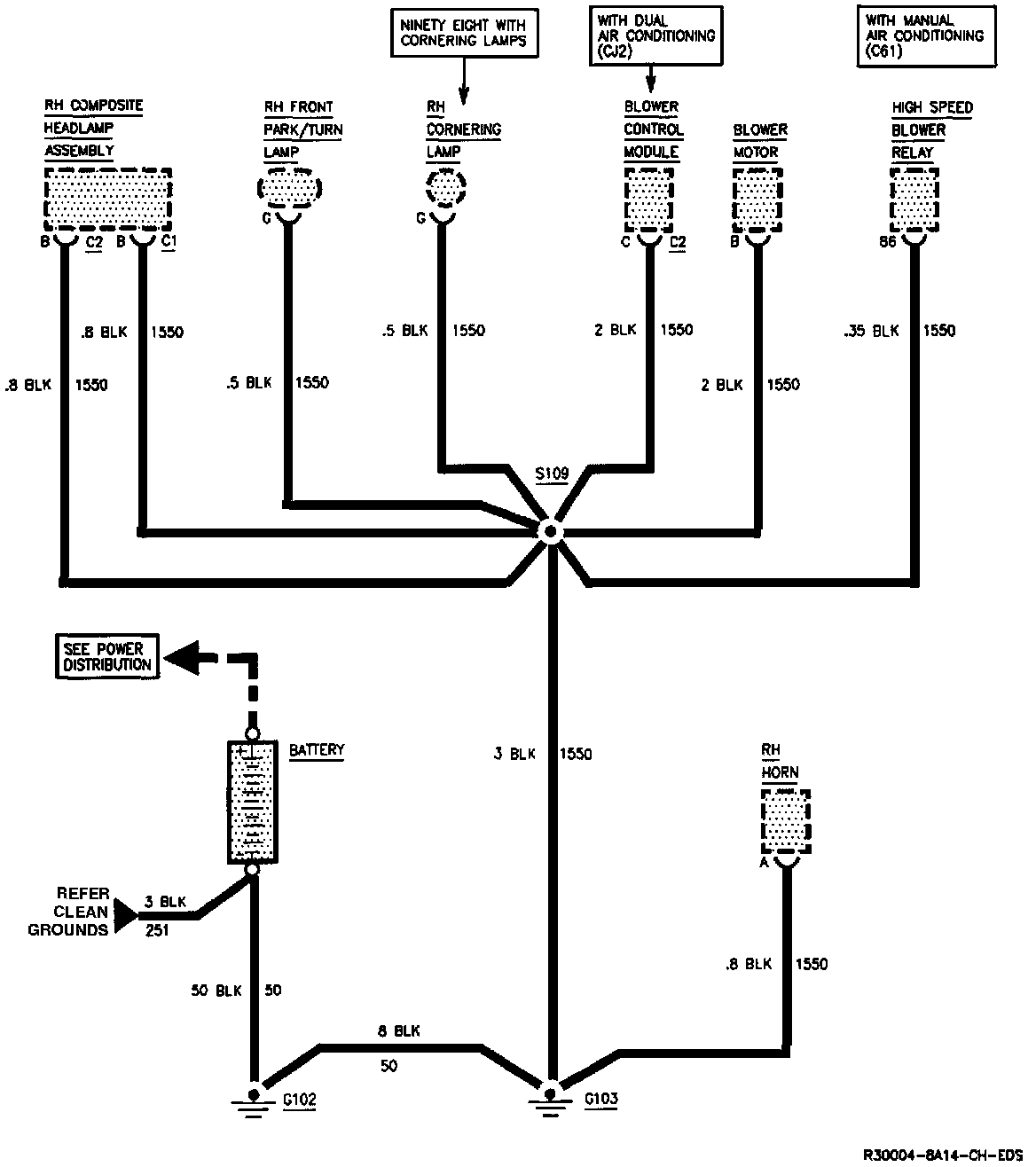

Ground Distribution: G102, G103:
