Oldsmobile
>>
1994
>>
Eighty-Eight Royale FWD V6-3800 3.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Auxiliary Power Outlet
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

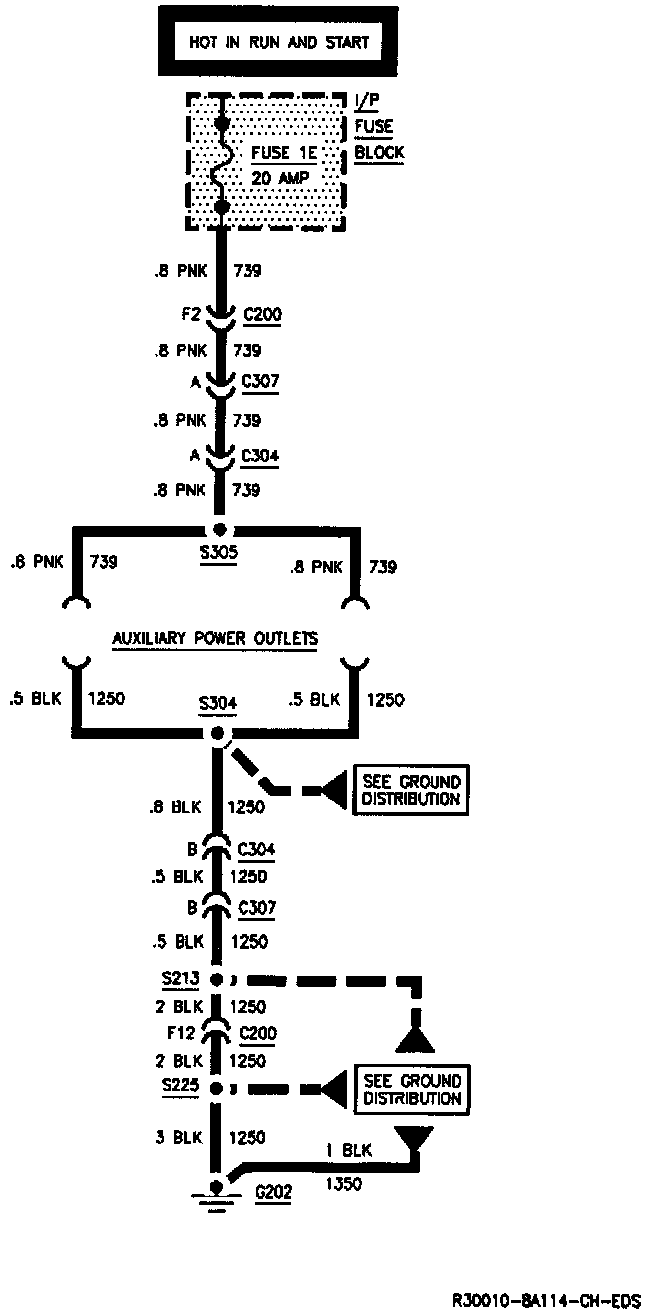

Interior Lamps: Auxiliary Power Outlets:
