Drive Belt: Service and Repair

Serpentine Belt Routing & Replacement:






1. Disconnect battery ground cable.

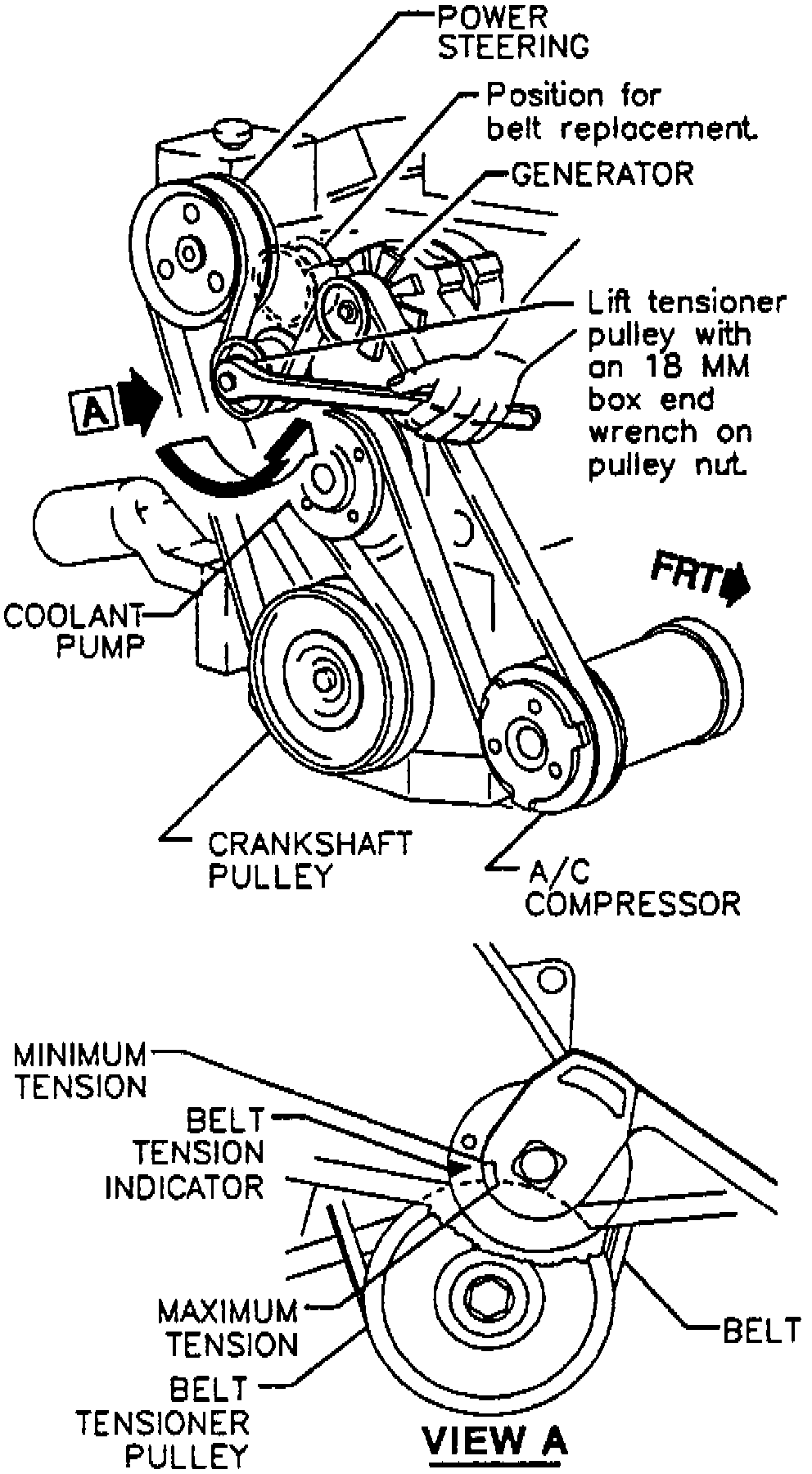

2. Refer to Fig. 23.
3. Reverse procedure to install.
