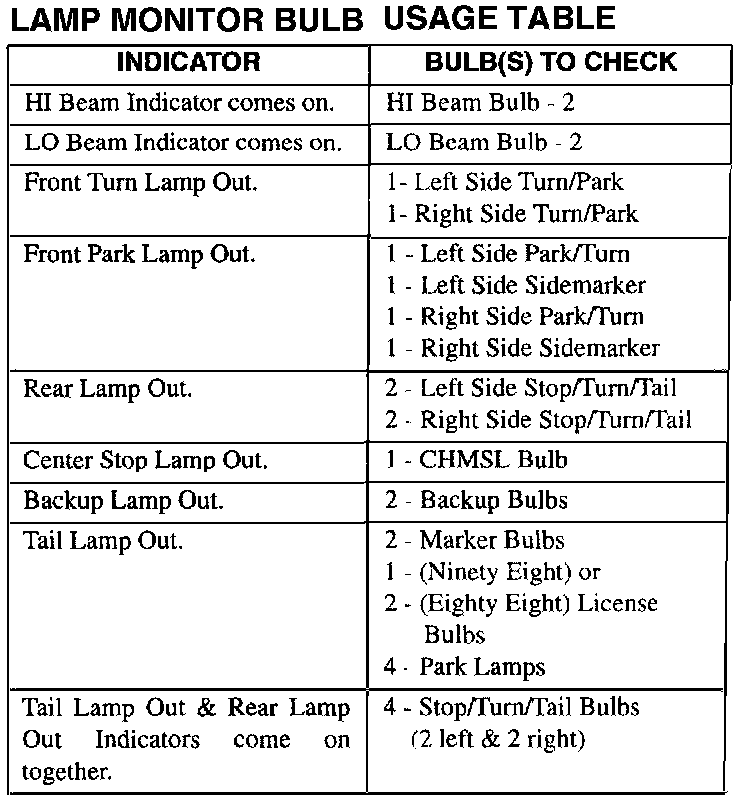

Lamp Monitor Bulb Usage Table

Lamp Monitor Bulb Usage Table:

If bulb indicator outages are displayed on the Driver Information Center (DIC) on the Cluster follow the chart before proceeding with Diagnosis to determine if a bulb is burnt out. Also verify proper bulb type.
