Home >> Oldsmobile >> 1994 >> Eighty-Eight Royale FWD V6-3800 3.8L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Tachometer >> Testing and Inspection

Tachometer: Testing and Inspection

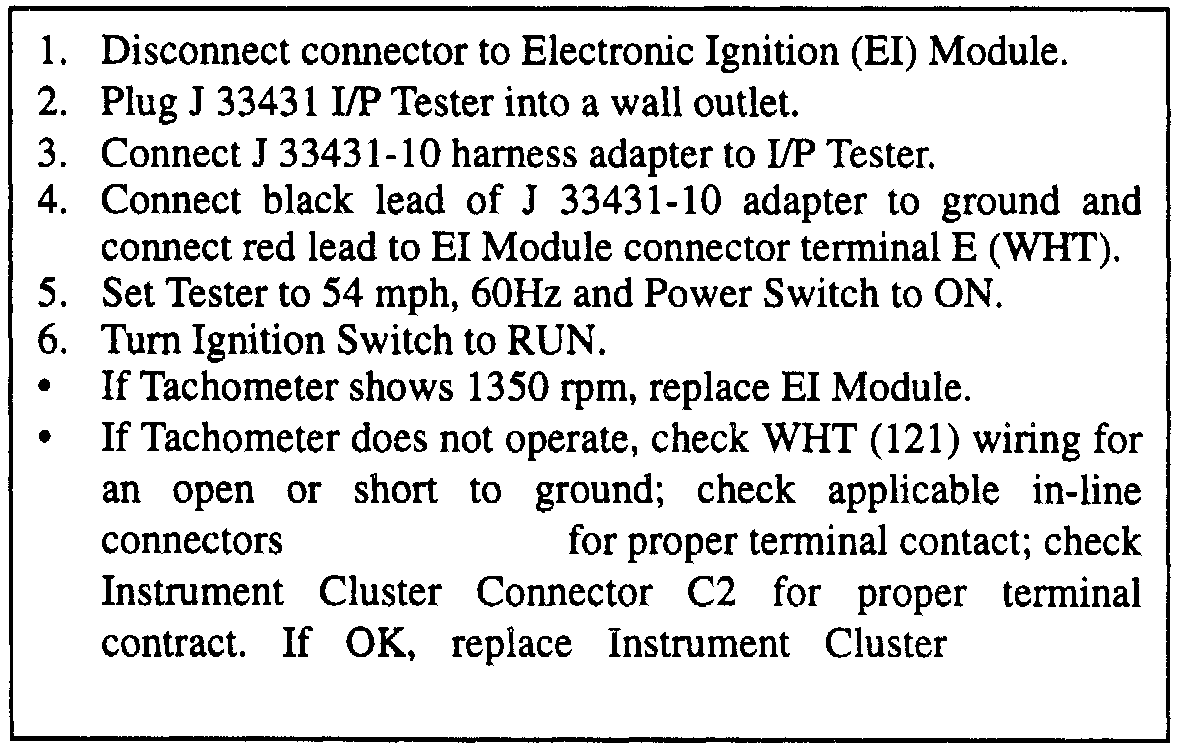

Fig. 52 Test J: Tachometer:
