Power Seats

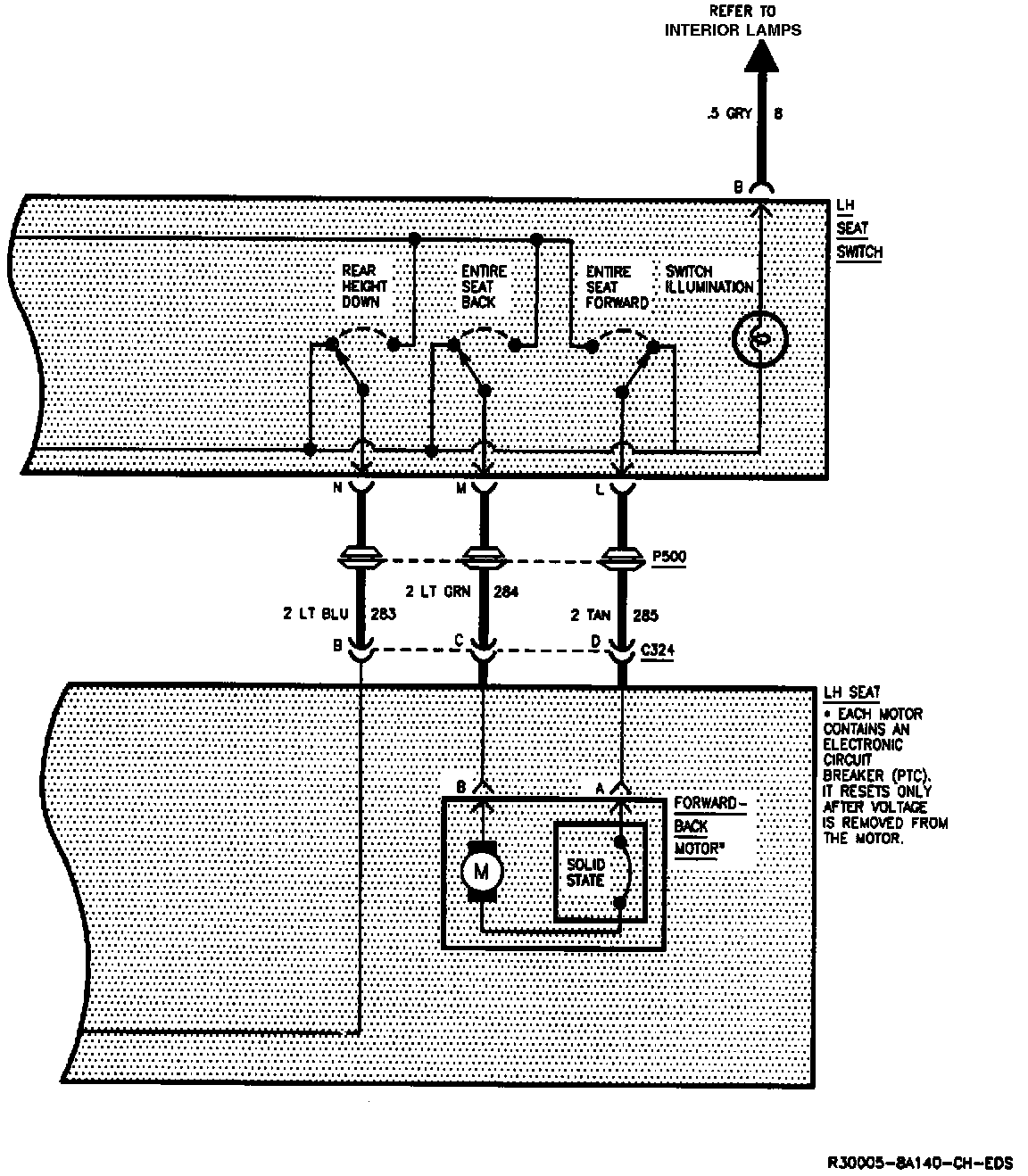

Power Seats (AG1/AQ9) (Part 1 Of 4):




Part 1 of 4

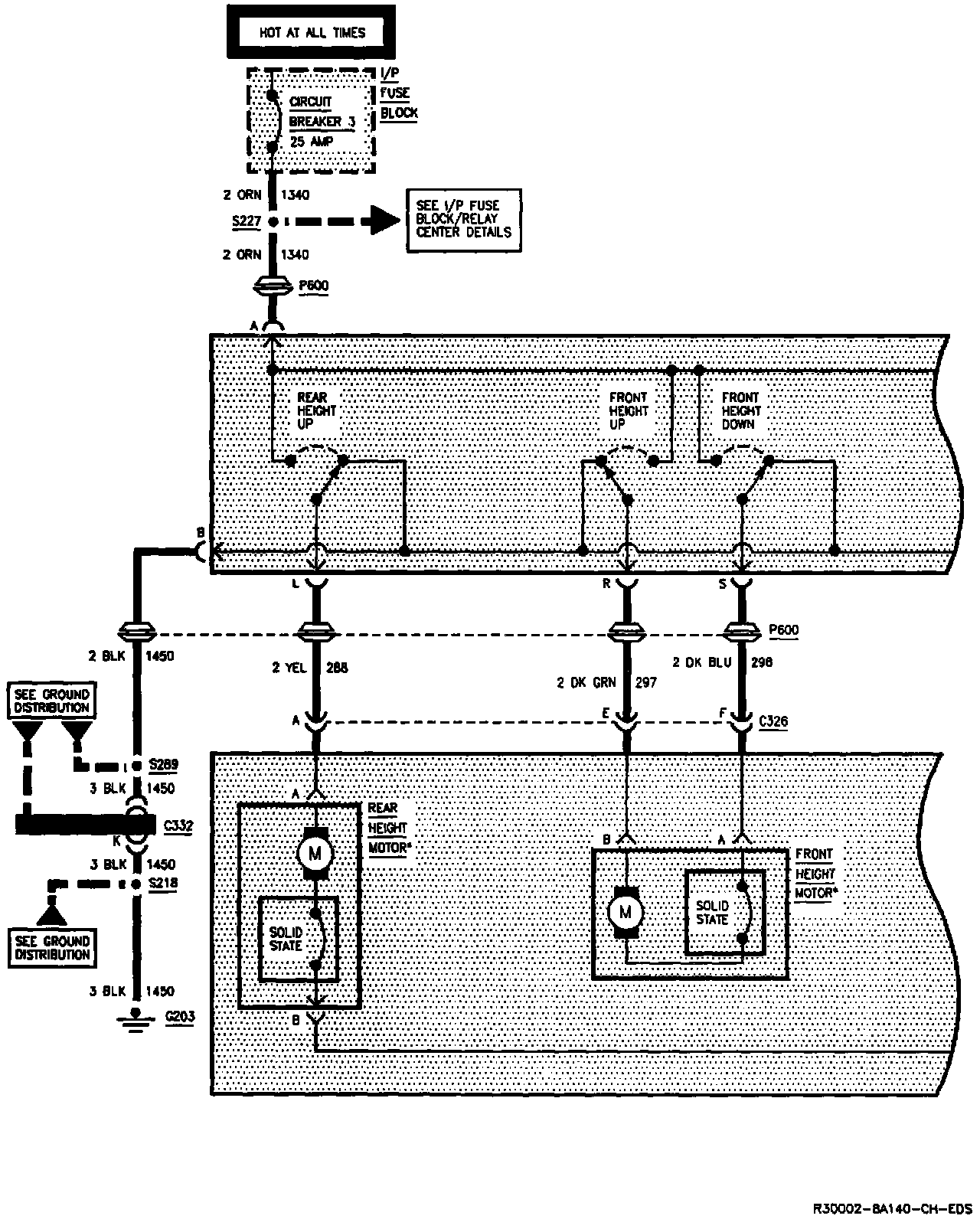

Power Seats (AG1/AQ9) (Part 2 Of 4):




Part 2 of 4

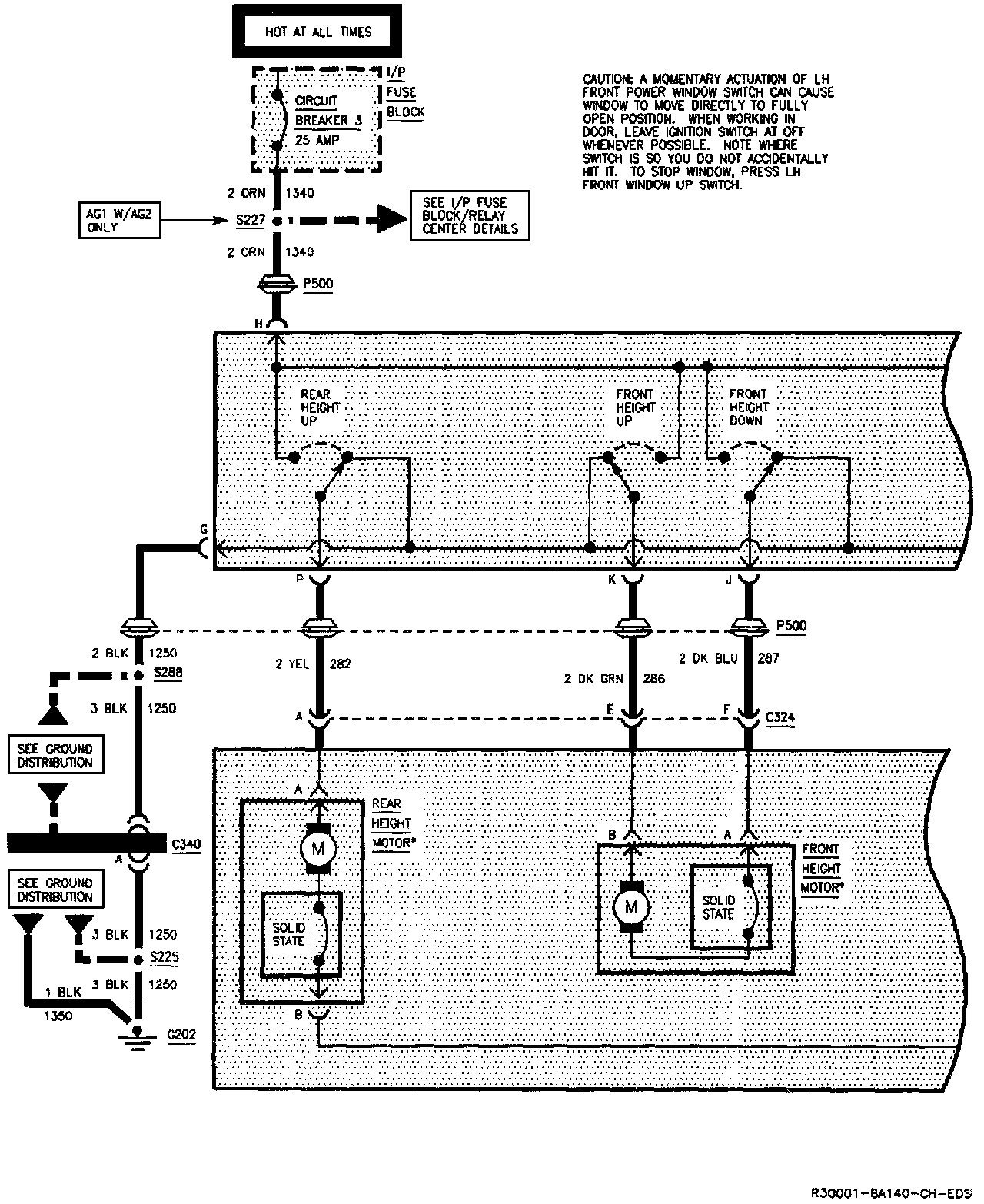

Power Seats (AG2) (Part 3 Of 4):




Part 3 of 4

Power Seats (AG2) (Part 4 Of 4):




Part 4 of 4
