Oldsmobile
>>
1994
>>
Eighty-Eight Royale FWD V6-3800 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Brake Warning Indicator
>>
Indicators Cluster
Indicators Cluster

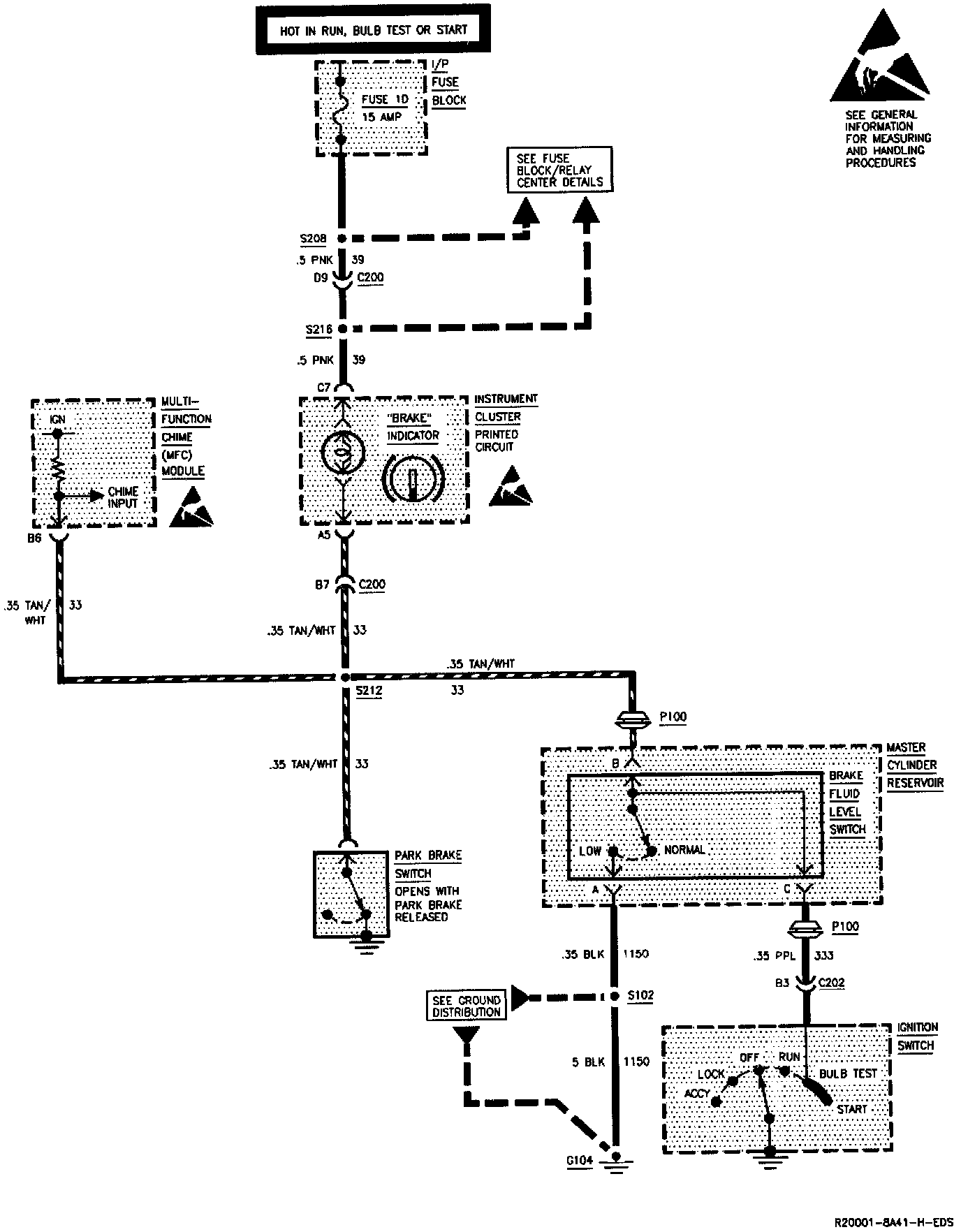

Brake Warning System: Indicators Cluster (U2E):
