Suspension Control - Ride Control

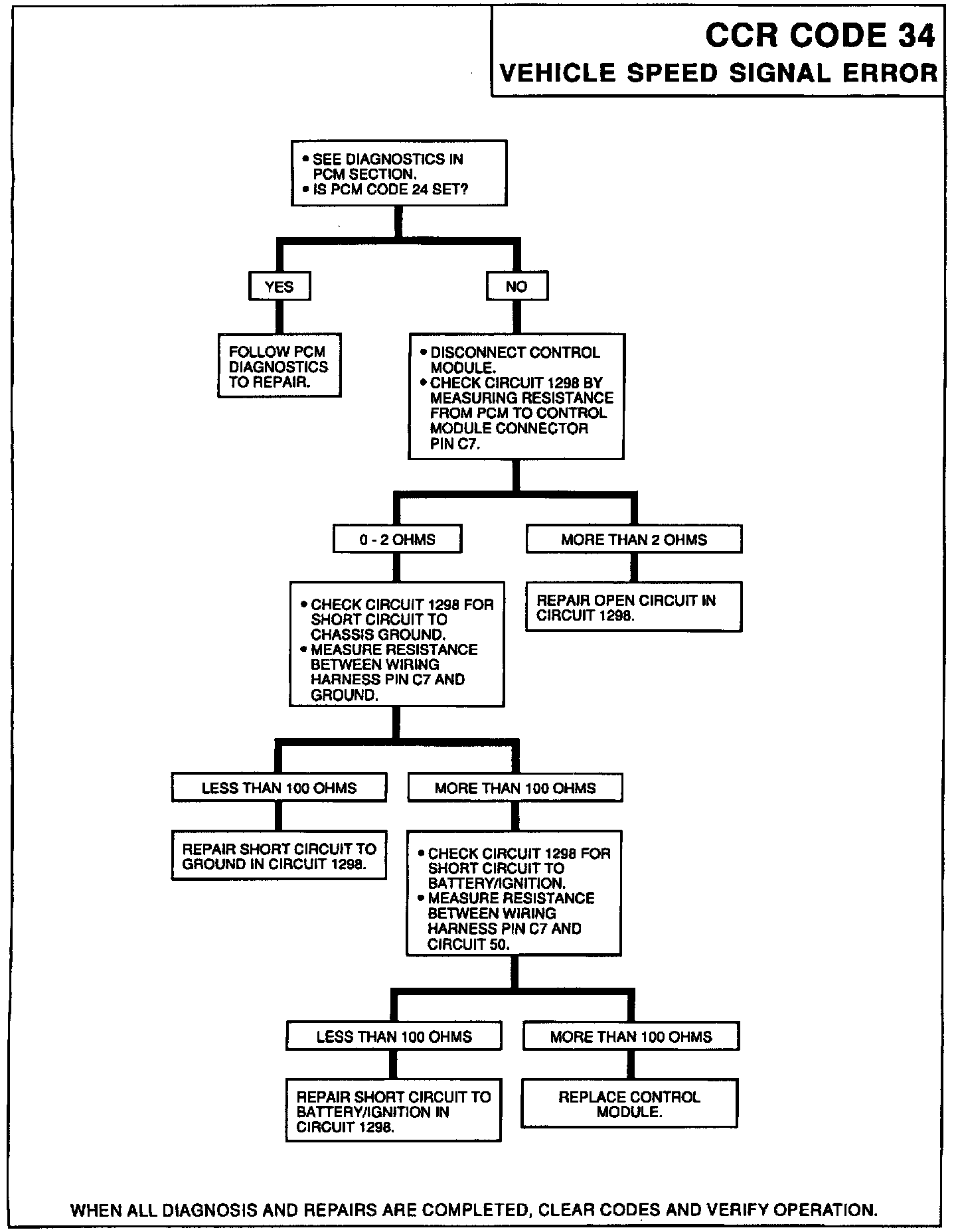

Diagnostic Chart:

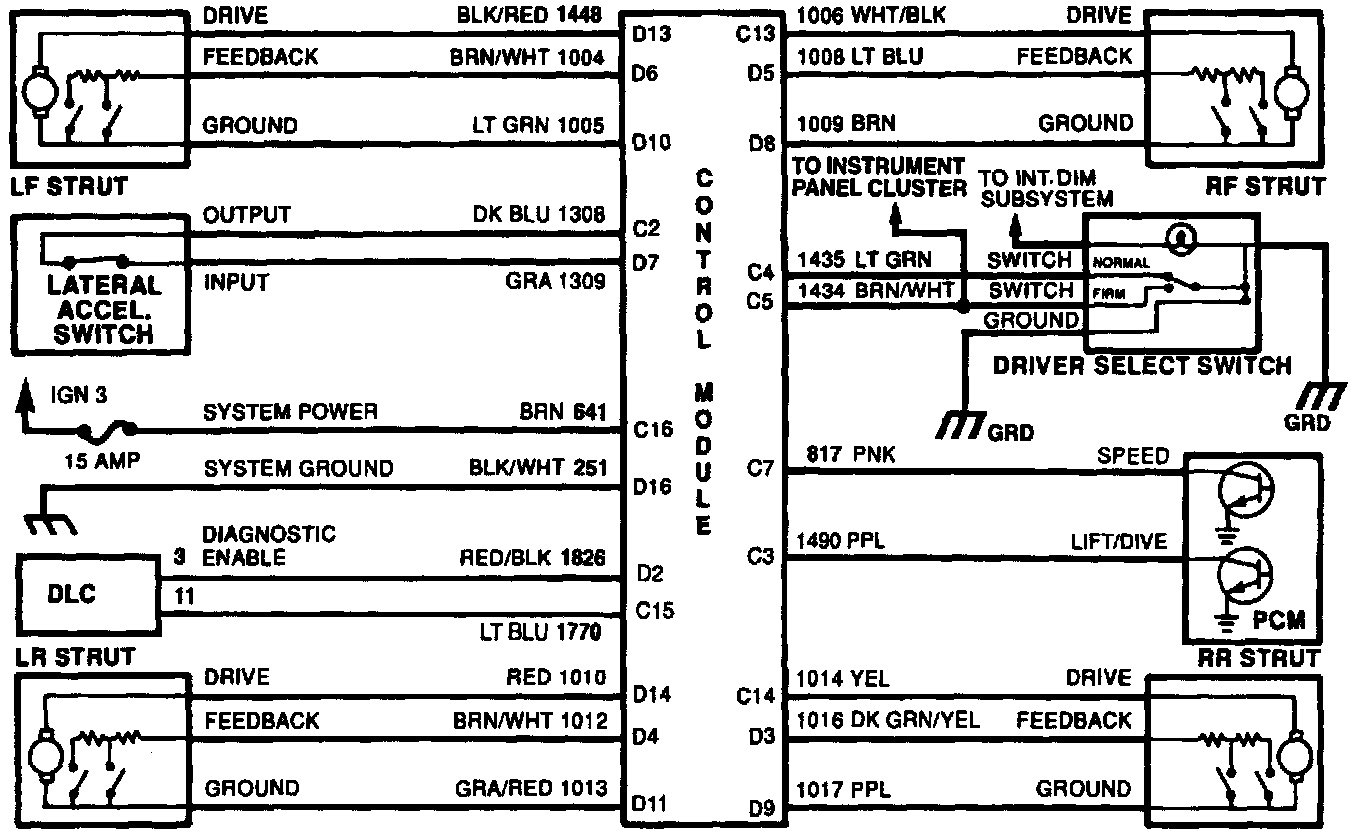

Wiring Diagram:

TEST CONDITIONS
Check for vehicle speed signal during periods when vehicle movement is suspected.

FAULT CONDITIONS
If vehicle speed signal is not detected for 20 seconds, followed by 5 or more transitions in lateral accelerometer input, set code.

ACTION TAKEN
Record vehicle speed signal error. System will continue to default to zero speed damping level (firm).

DESCRIPTION
A vehicle speed signal error occurs when the Control Module detects 5 or more transitions in the lateral accelerometer input after 20 or more seconds without a vehicle speed input. If a fault is detected the system will set error code 34.

NOTES ON INTERMITTENTS
Refer to "Lateral Accelerator Switch Error (Code 32)" in this section, and to diagnostics in the PCM Section.

Also refer to "Notes on Intermittents."
