Cutlass Ciera V6-3100 3.1L MFI VIN M
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Ignition System
>>
Ignition Control Module
Ignition Control Module

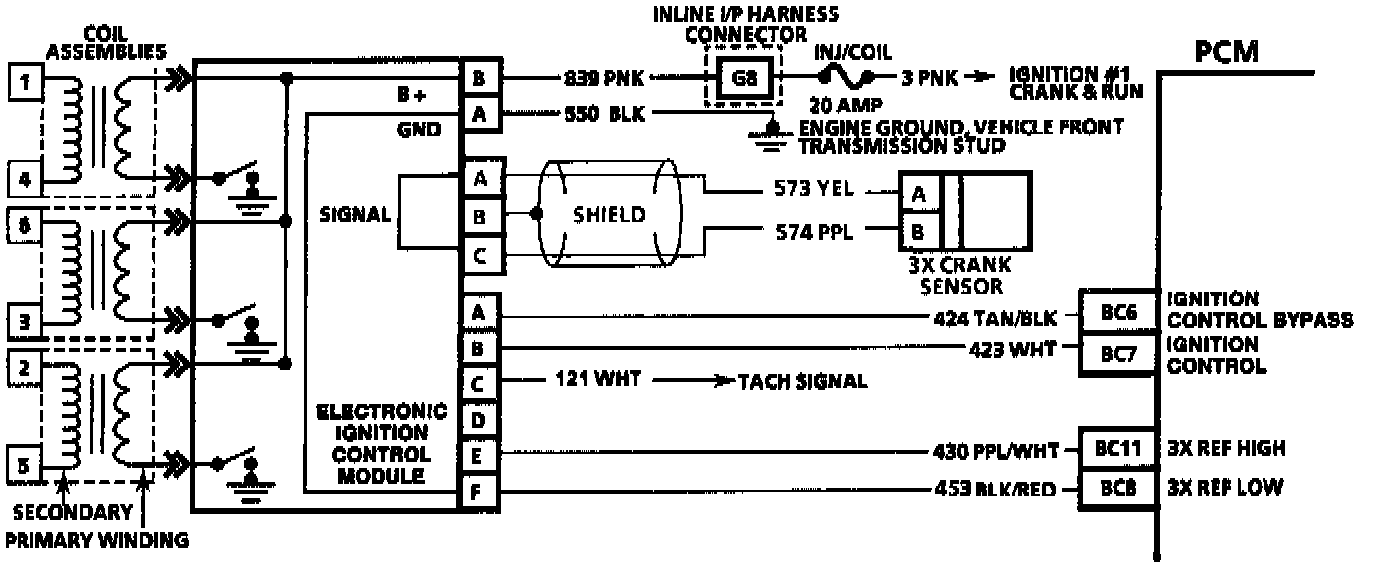

Ignition & Fuel Injection Wiring Schematic:
