Removal and Replacement

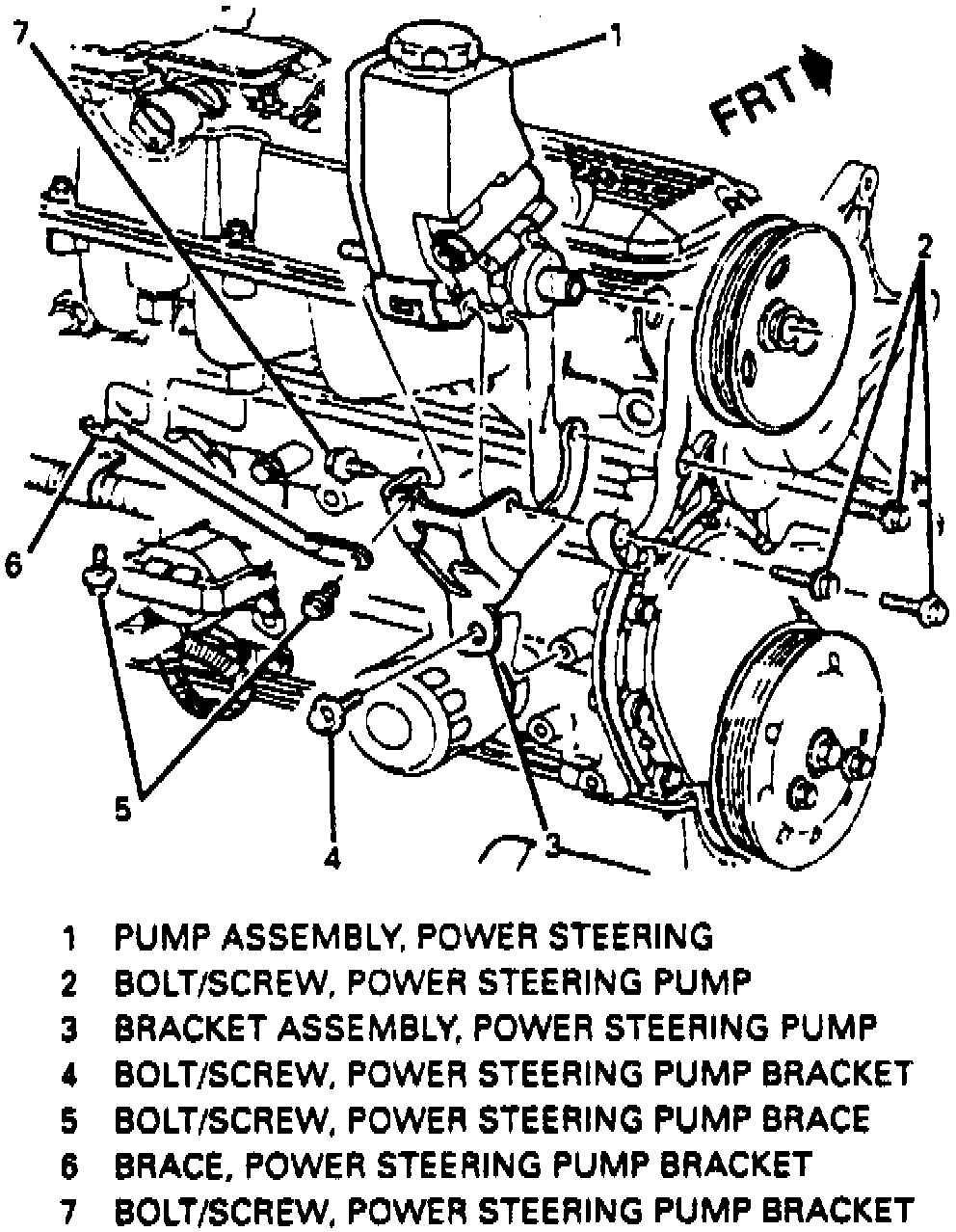

Fig. 9 Power Steering Pump Replacement:

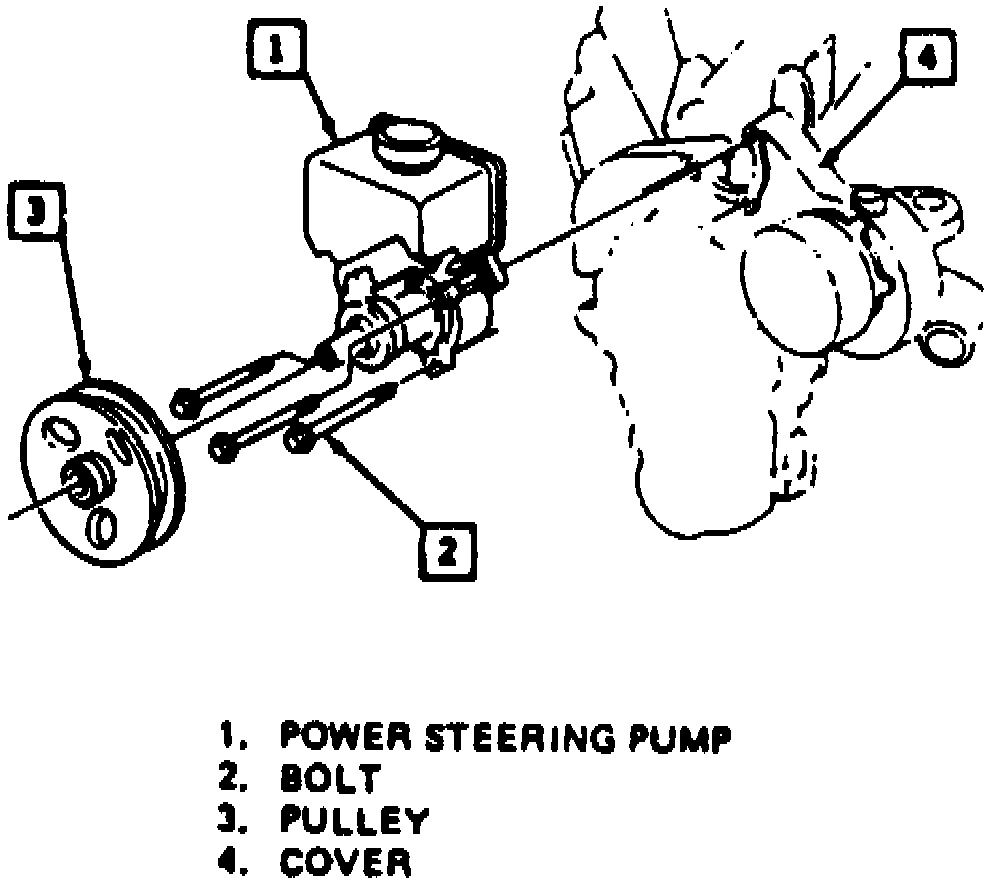

Fig. 10 Power Steering Pump Replacement:

1. Remove serpentine drive belt from pulley, then disconnect power steering lines at pump.
2. Remove pump retaining bolts, then pump, Figs. 9 and 10.
3. Reverse procedure to install. Tighten to specifications.
