Air Bag: Service and Repair

INFLATOR MODULE

Remove or Disconnect






1. Disable the SIR system.
2. Loosen screws from back of steering wheel using a number 30 Torx driver (or equivalent) until the inflator module can be released from the steering wheel.
3. Inflator module from steering wheel.

CAUTION: When carrying a live inflator module, make sure the bag and opening is pointed away from you. Never carry the inflator module by the wires or connector on the underside of the module. In case of an accidental deployment, the bag will then deploy with minimal chance of injury. When placing a live inflator module on a bench or other surface, always face the bag and trim cover up, away from the surface. Never rest a steering column assembly on the steering wheel with the inflator module face down and column vertical. This is necessary so that a free space is provided to allow the air bag to expand in the unlikely event of accidental deployment. Otherwise, personal injury may result. Coil assembly connector and connector position assurance (CPA) from inflator module.

4. Horn lead from steering column.

Install or Connect

1. Horn lead from steering column.

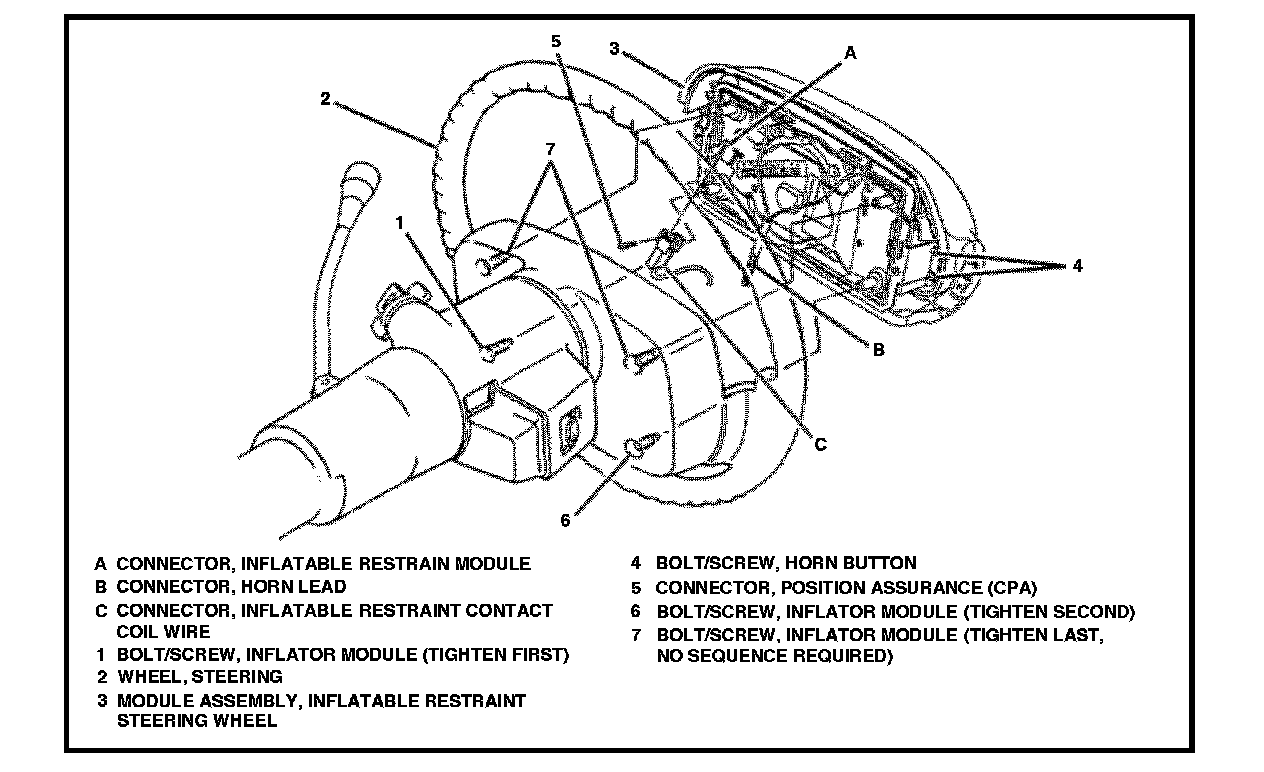

2. Coil assembly connector and connector position assurance (CPA) to inflator module.

^ Route coil assembly lead around mounting post and secure under clip.

3. Inflator module to steering wheel. Do not use inflator module if it has been dropped from a height of 2.5 m (8.2 ft.) or more.

Important
Ensure that wiring is not exposed or trapped between inflator module and steering wheel.

Tighten
Inflator Module Bolts/Screws to 2.8 N.m (24.8 lb. in.).

4. Enable the SIR system
