Horn Relay: Locations

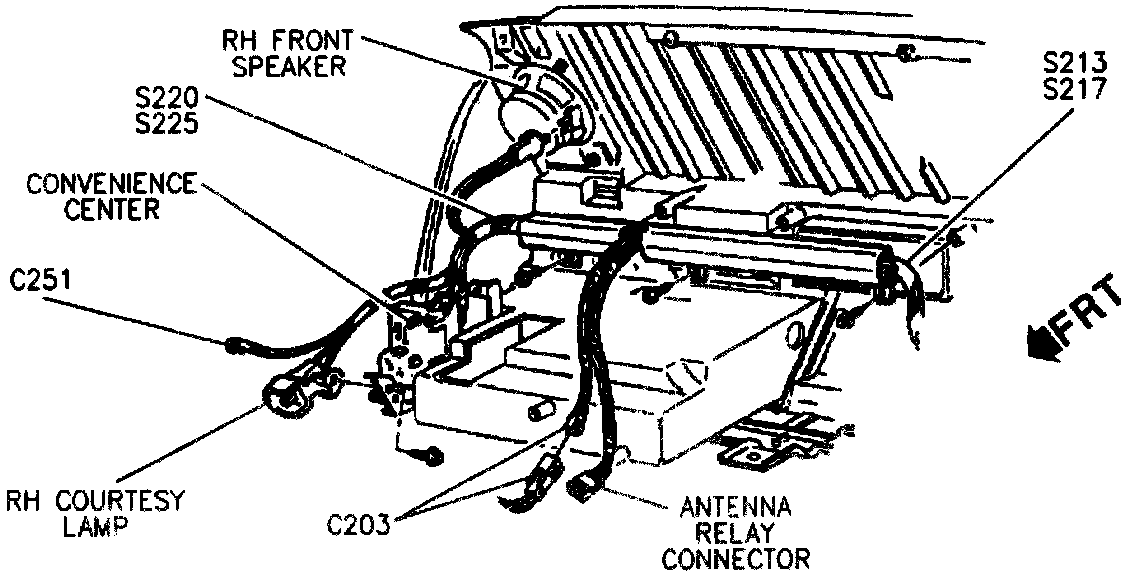

Behind RH Side Of I/P:






The Horn Relay is located in the Convenience Center. the Convenience Center is located behind RH side of I/P, right of instrument panel compartment.
