Home >> Oldsmobile >> 1994 >> Cutlass Ciera Cruiser L4-2.2L VIN 4 >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Ground Distribution >> G103

G103

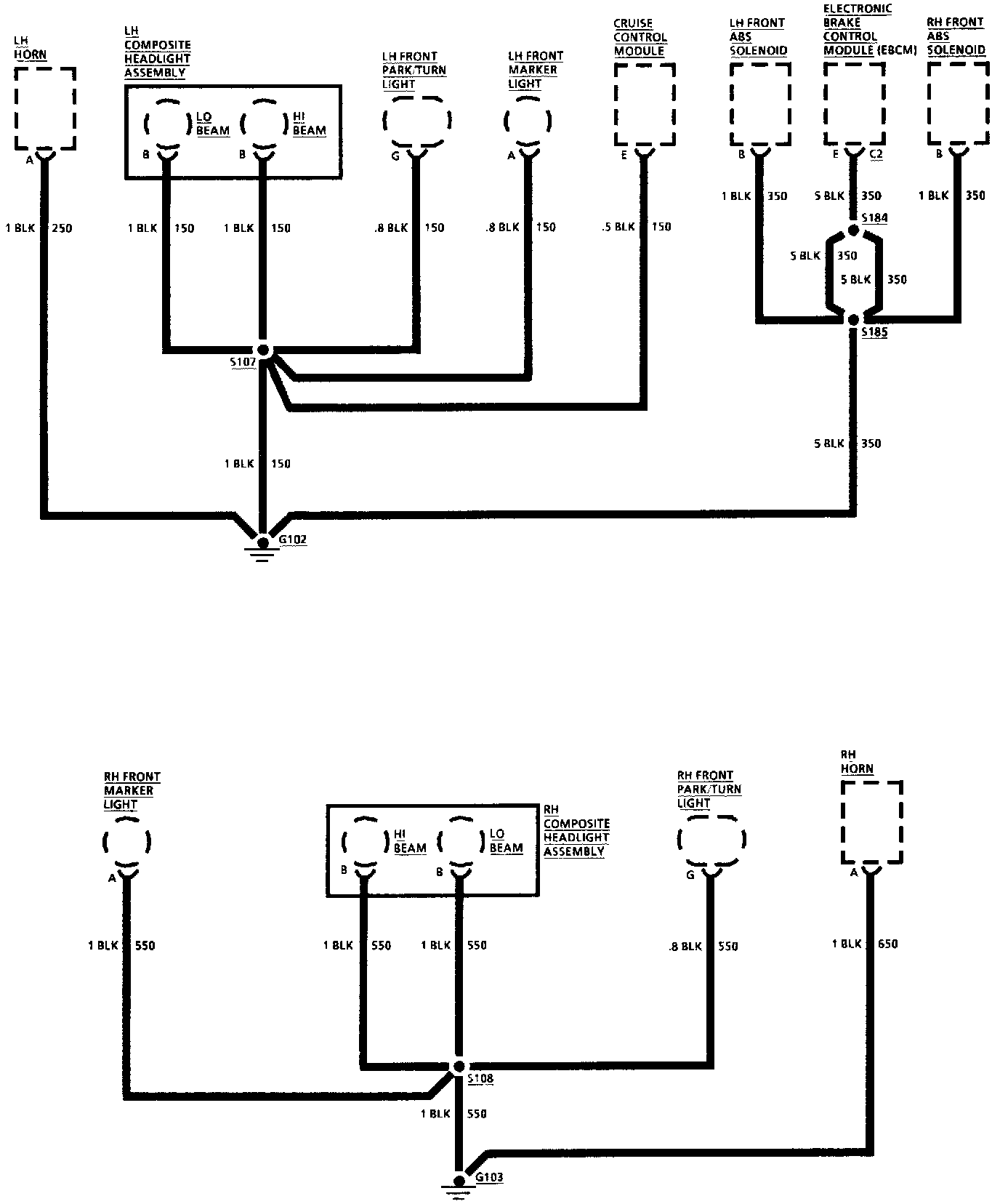

G102 And G103:
