Home >> Oldsmobile >> 1994 >> Cutlass Ciera Cruiser L4-2.2L VIN 4 >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Fuse Block Diagrams >> PWR ACC Circuit Breaker Fuse

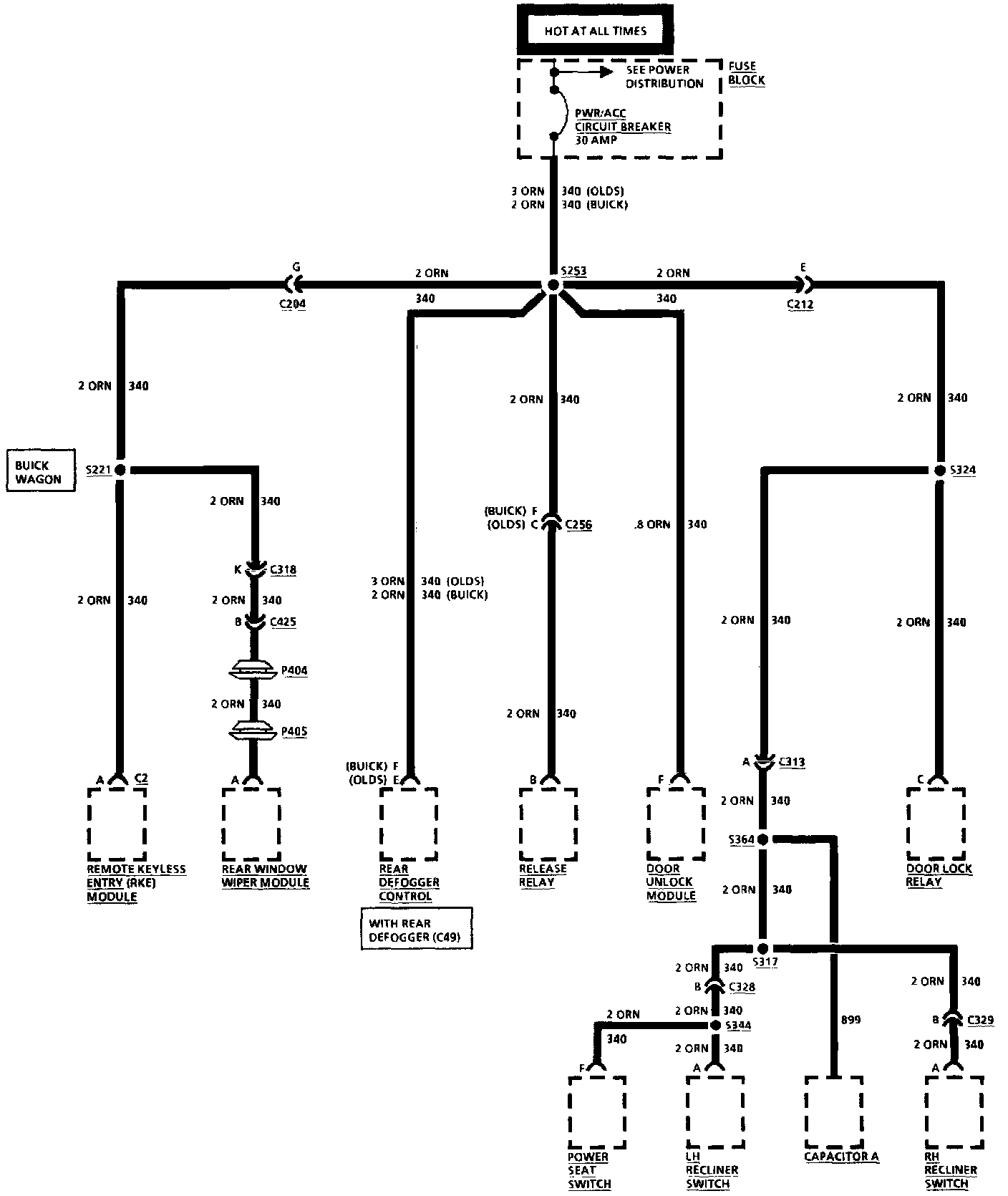

PWR ACC Circuit Breaker Fuse

PWR ACC Circuit Breaker Fuse:
