Home >> Oldsmobile >> 1994 >> Cutlass Ciera Cruiser L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Fuse Block Diagrams >> Unlock, Air Bag and Fuel Pump In-Line Fuses

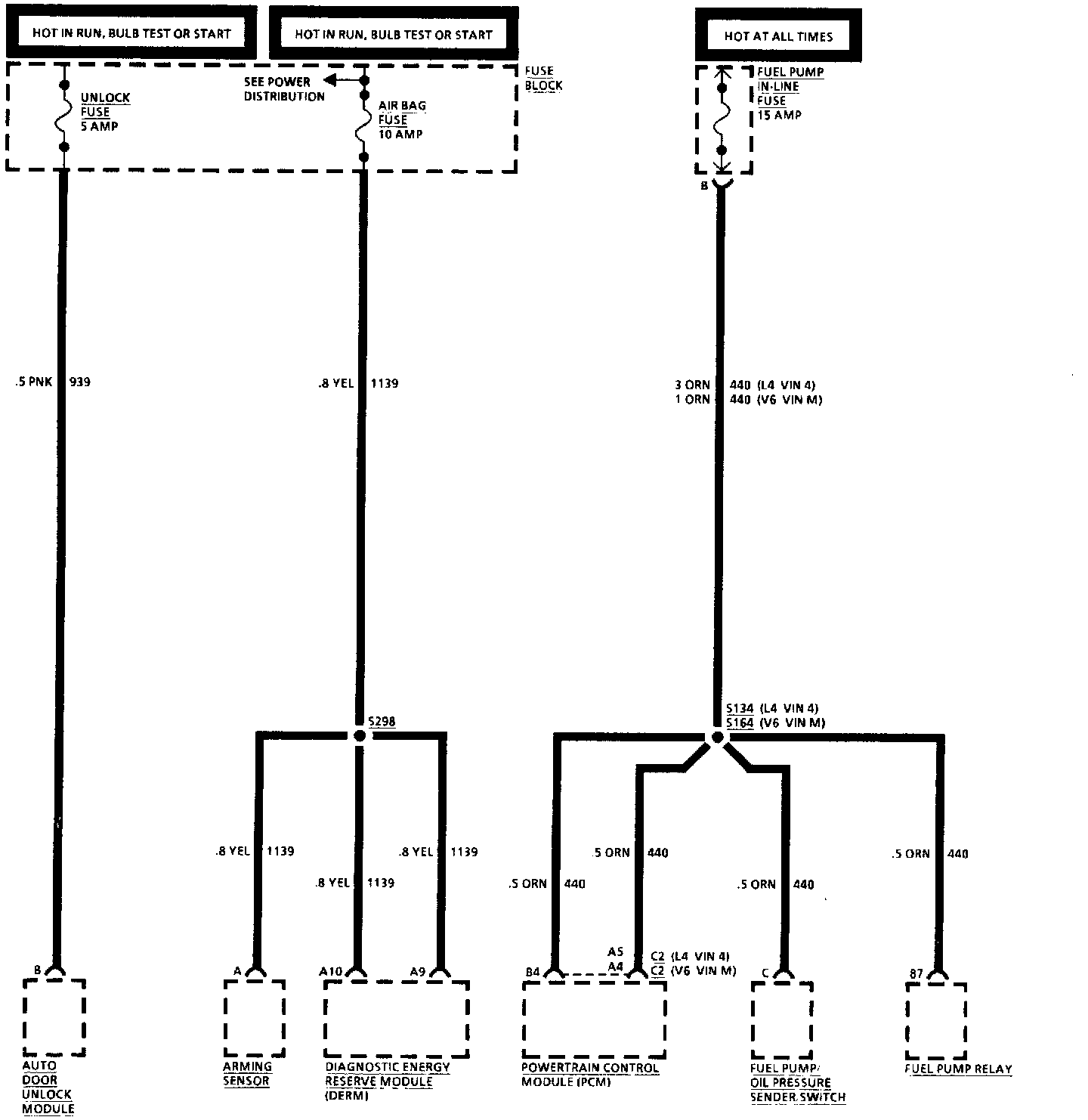

Unlock, Air Bag and Fuel Pump In-Line Fuses

Unlock, Air Bag And Fuel Pump In-Line Fuses:
