Engine Data Sensors & Automatic Transaxle

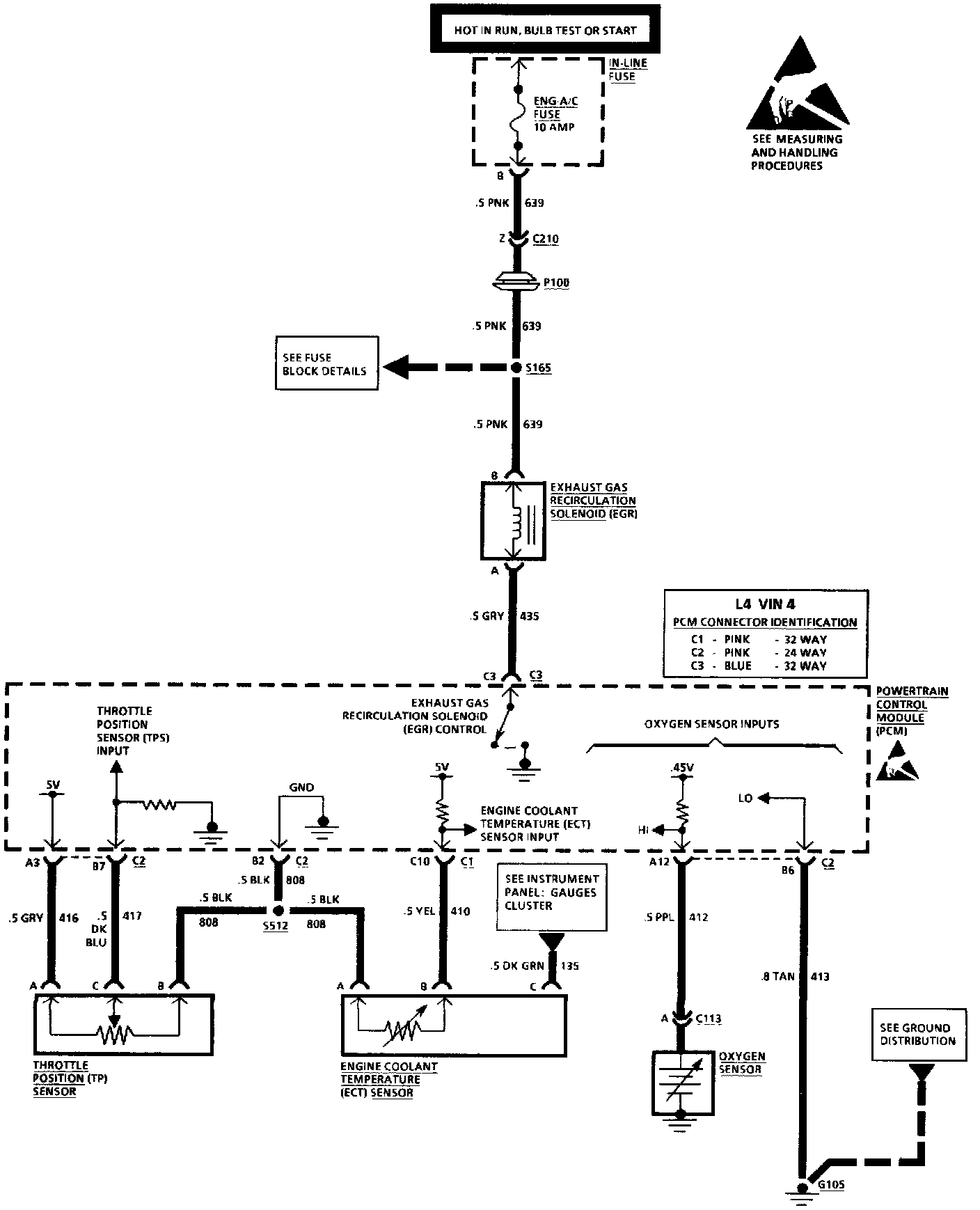

Engine Data Sensors:

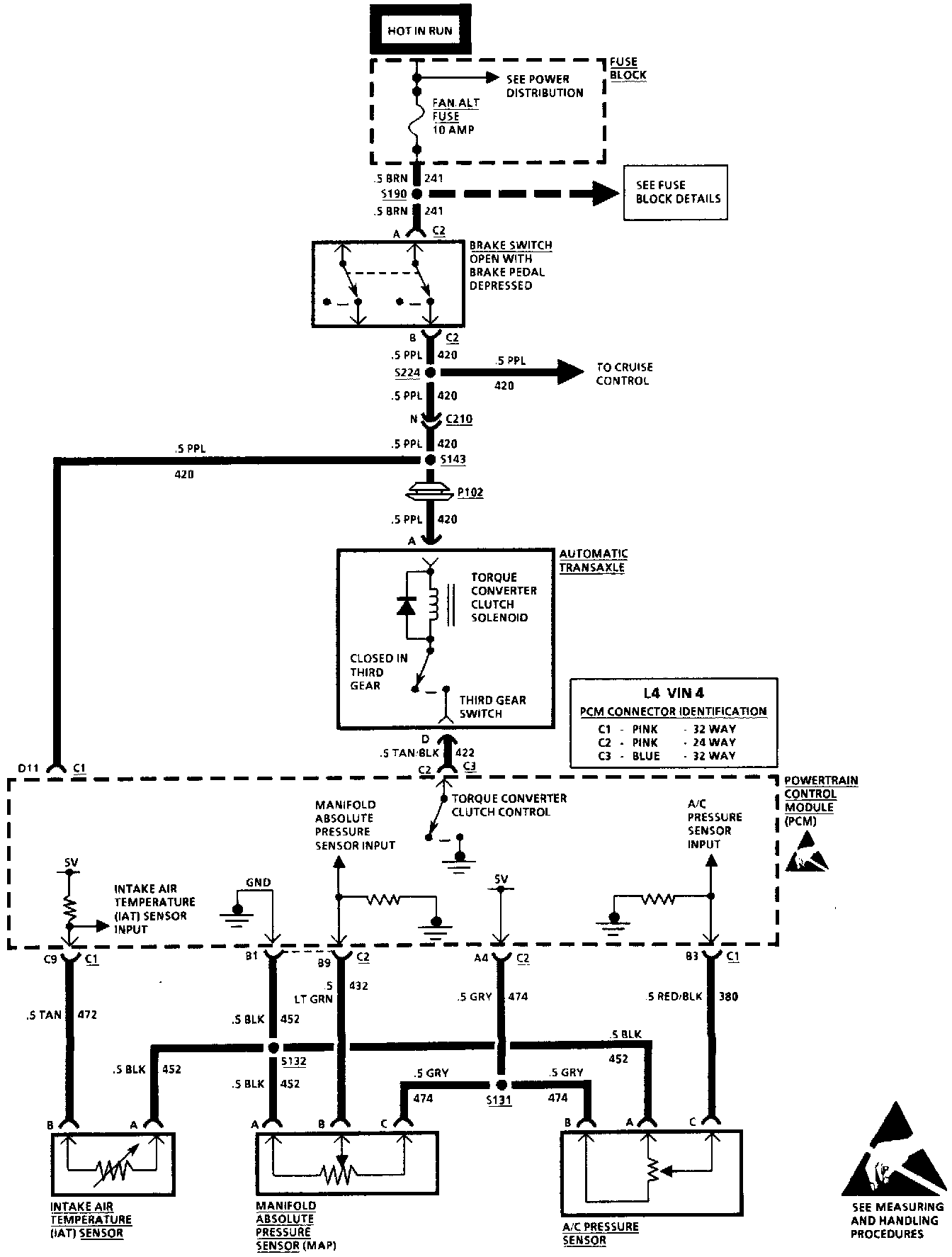

Engine Data Sensors And Automatic Transaxle:
