Cutlass Ciera Cruiser L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Standby Power Supply, Air Bag
Standby Power Supply, Air Bag

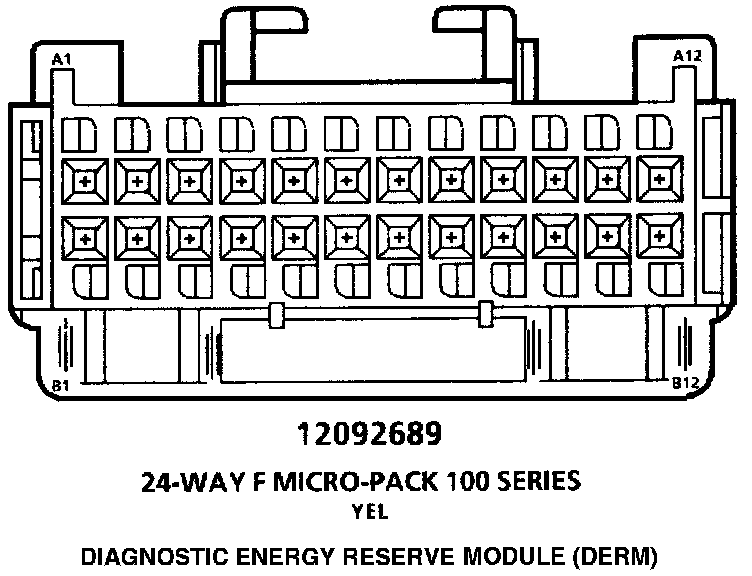

Diagnostic Energy Reserve Module (DERM):

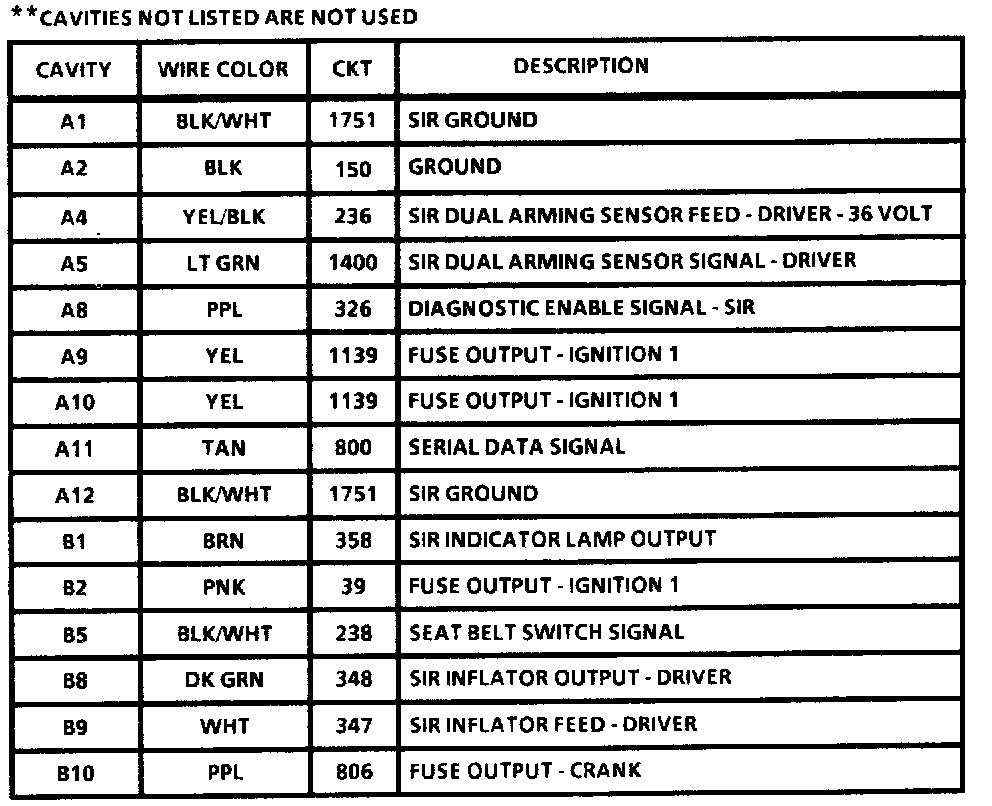

Diagnostic Energy Reserve Module (DERM):
