Home >> Oldsmobile >> 1994 >> Achieva V6-3100 3.1L MFI VIN M >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fusible Link >> Locations >> Fusible Links A,B,C,D,E,F,G

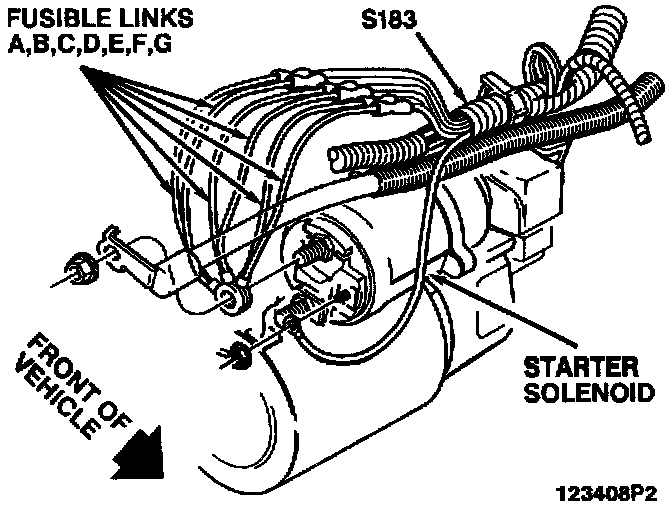

Fusible Links A,B,C,D,E,F,G

LH Front Of Engine Compartment:
