EGR Valve: Service and Repair

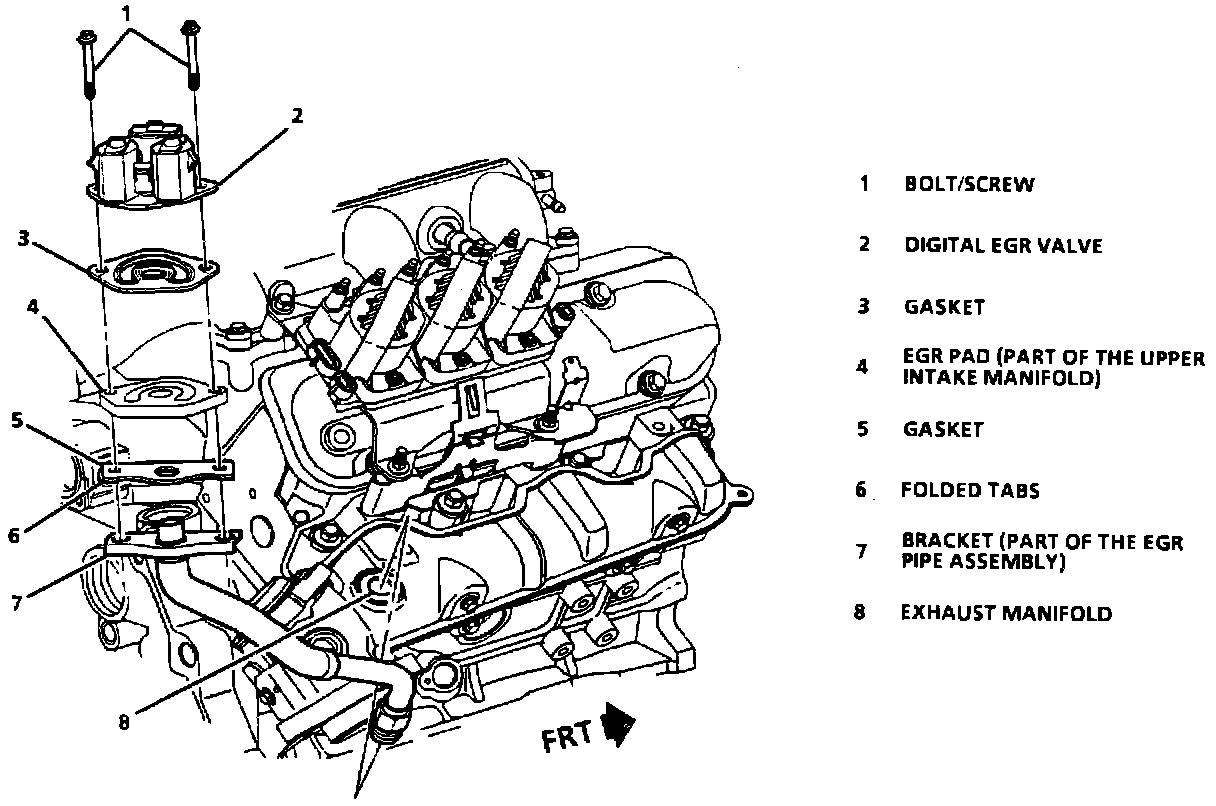

Digital EGR Valve Assembly - Removing/Installing:

REMOVE OR DISCONNECT
- Negative battery cable.
- EGR valve electrical connector.
- EGR valve.


INSTALL OR CONNECT
- EGR valve.
- Thoroughly clean old gasket material from all surfaces and install with new gaskets.
- Torque bolts to 25 Nm (18 ft lb).
- EGR valve electrical connector.
- Negative battery cable.
