Achieva V6-3100 3.1L MFI VIN M
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
A/C Refrigerant Pressure Sensor
A/C Refrigerant Pressure Sensor

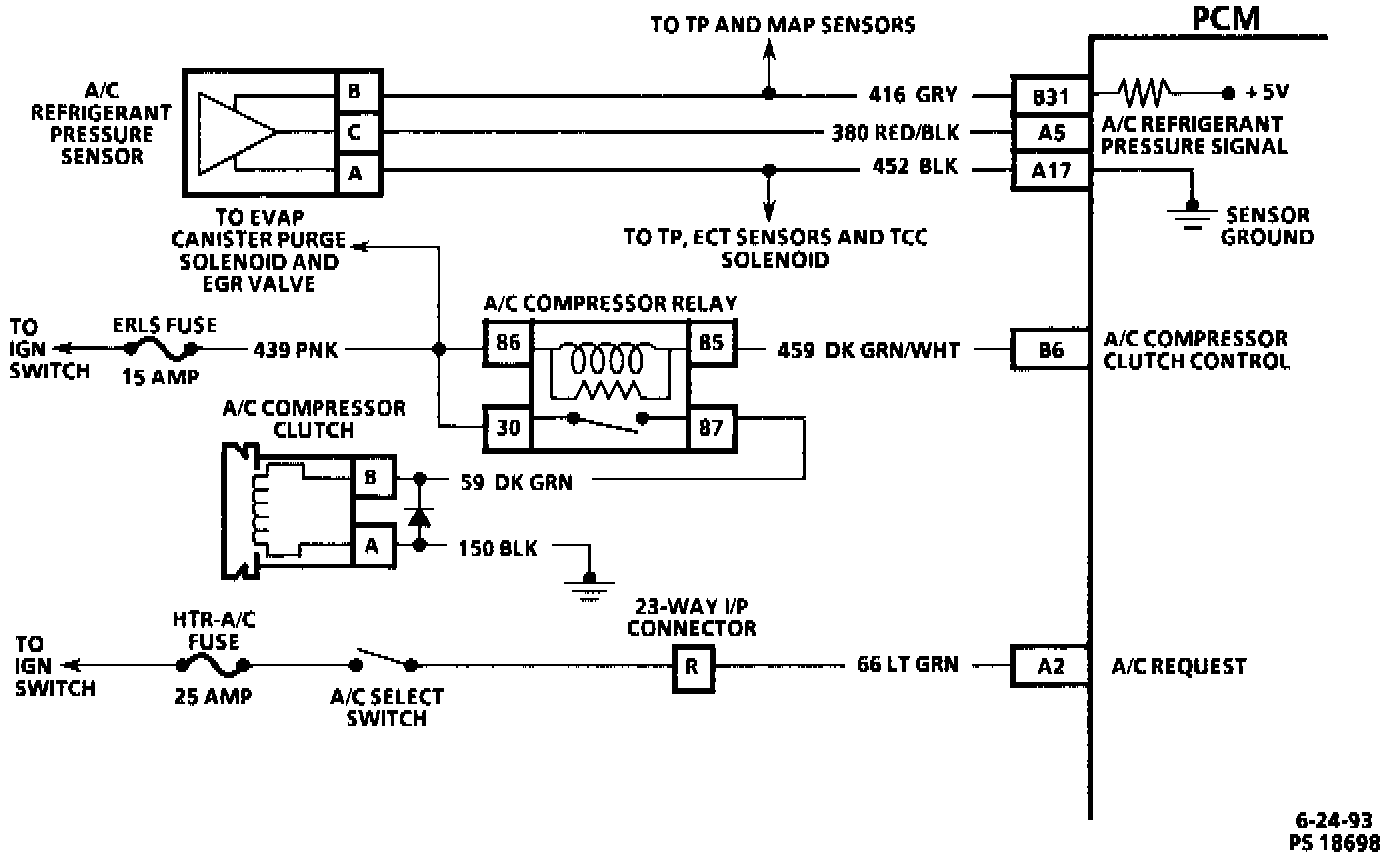

A/C Refrigerant Pressure Sensor:
