Oldsmobile
>>
1994
>>
Achieva V6-3100 3.1L MFI VIN M
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
F/P Inj Fuse
F/P Inj Fuse

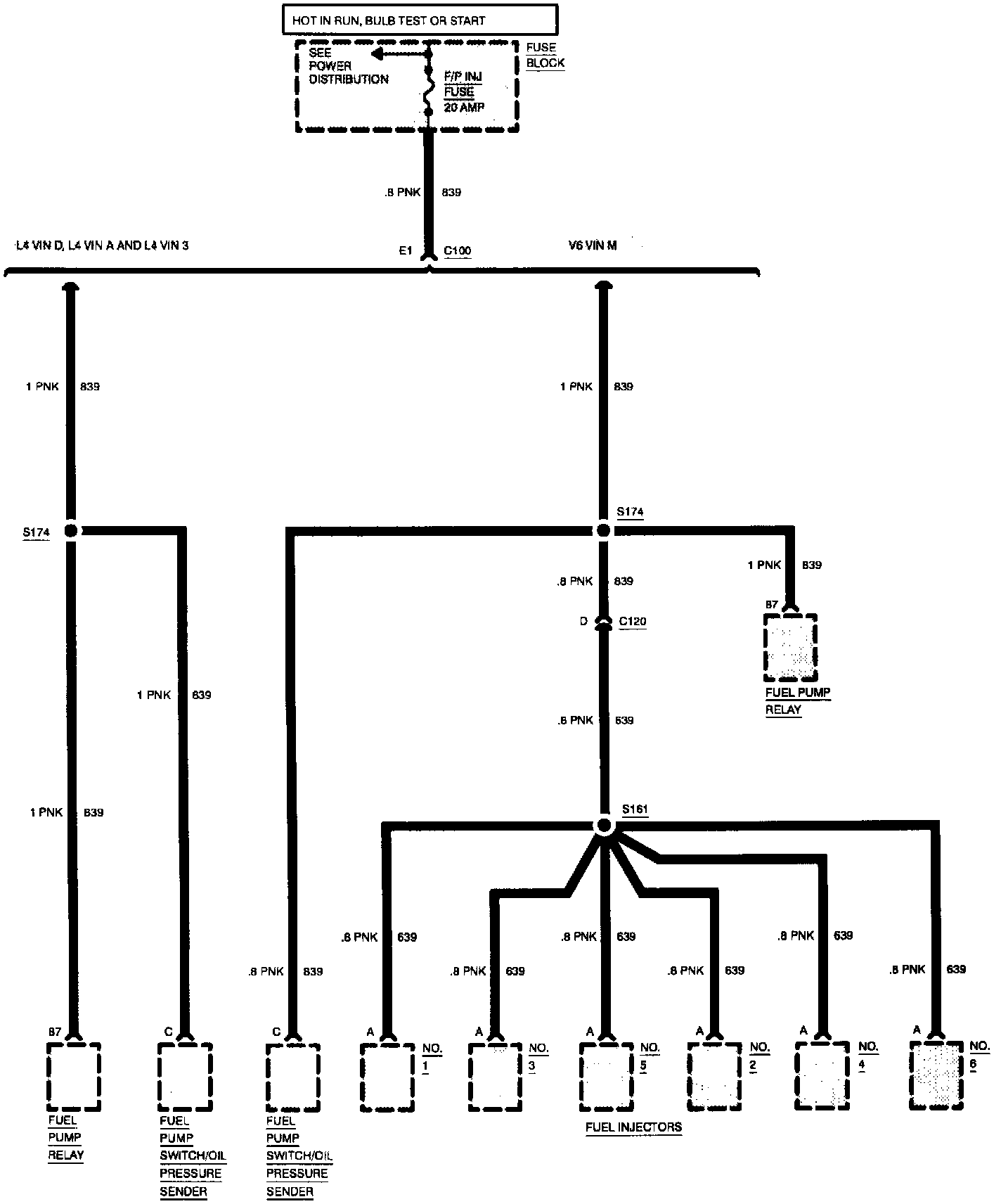

Wiring Diagram: F/P Inj Fuse:
