Home >> Oldsmobile >> 1994 >> Achieva V6-3100 3.1L MFI VIN M >> Repair and Diagnosis >> Heating and Air Conditioning >> Hose/Line HVAC >> Locations

Hose/Line HVAC: Locations

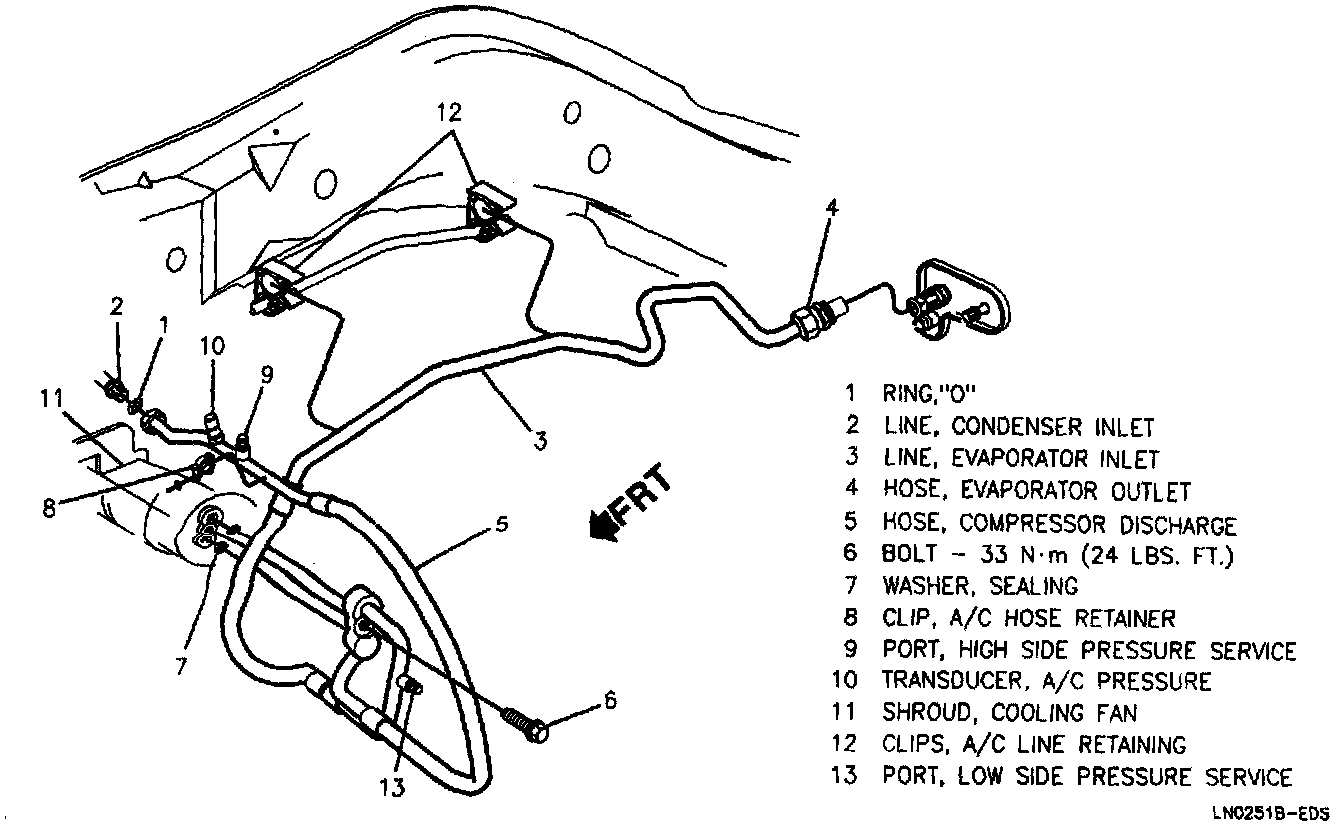

A/C Hose Routing And Service Port Locations - 3.1L:
