Preliminary Instructions

Heater Hoses:

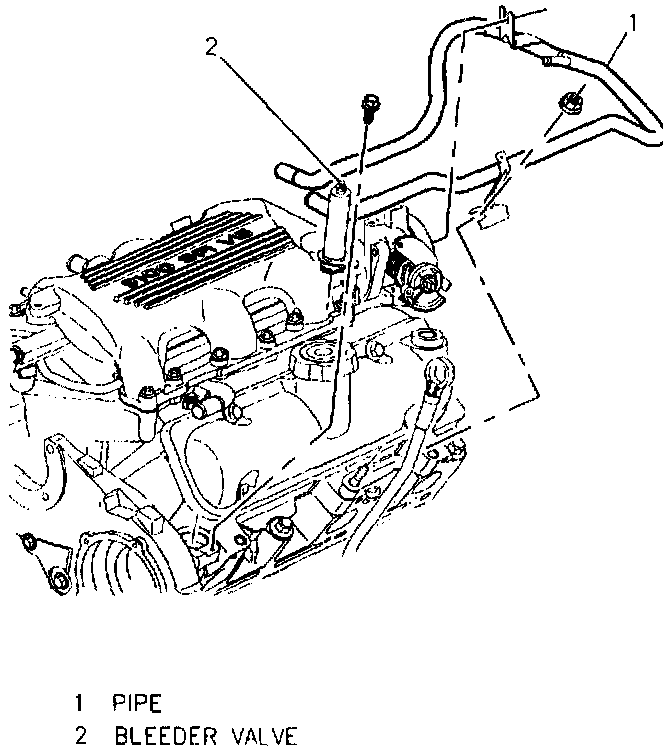

Thermostat Bypass Pipe (Heater Outlet):

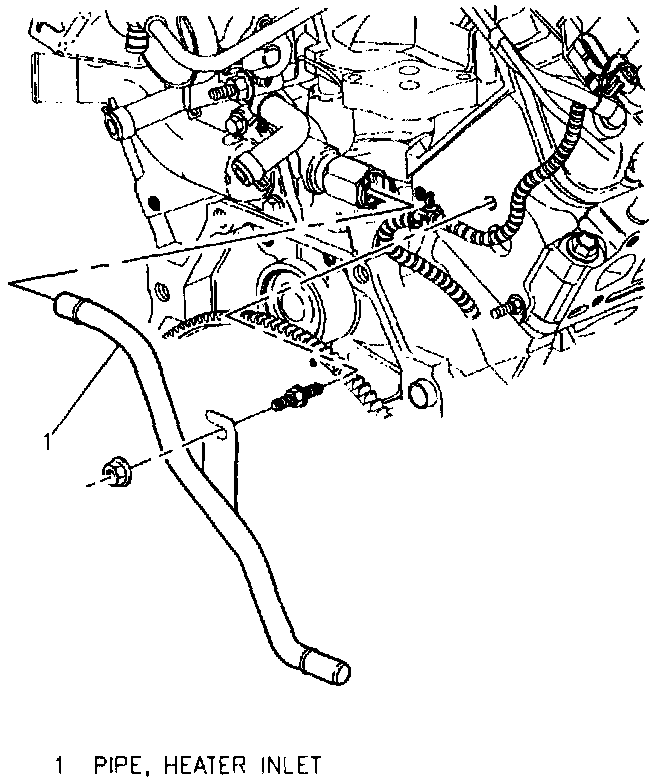

Heater Inlet Pipe:

Check all heater hose routing for installation to avoid contact with any obstruction that could result in a damaged hose. Some hoses are equipped with conduit in areas where rubbing may occur. Make sure conduit and heat sleeving are in the same location as the original when replacing a hose. When servicing a heater hose with a quick connect assembly, REPLACEMENT OF THE RETAINER IS RECOMMENDED.
