Oldsmobile
>>
1994
>>
Achieva L4-138 2.3L VIN A FI HP
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
>>
With Pulse
With Pulse

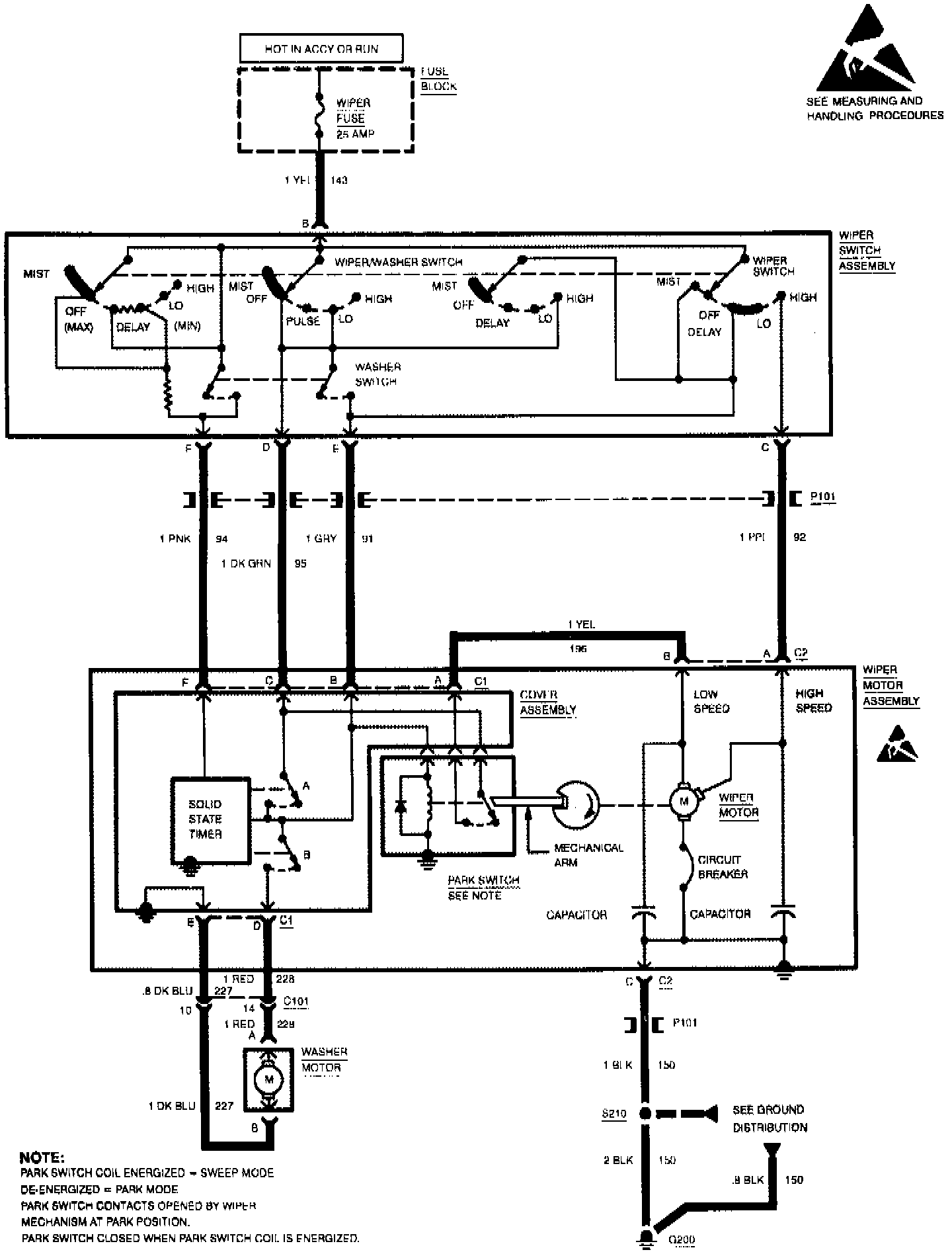

Wiring Diagram: Wiper/Washer Pulse:
