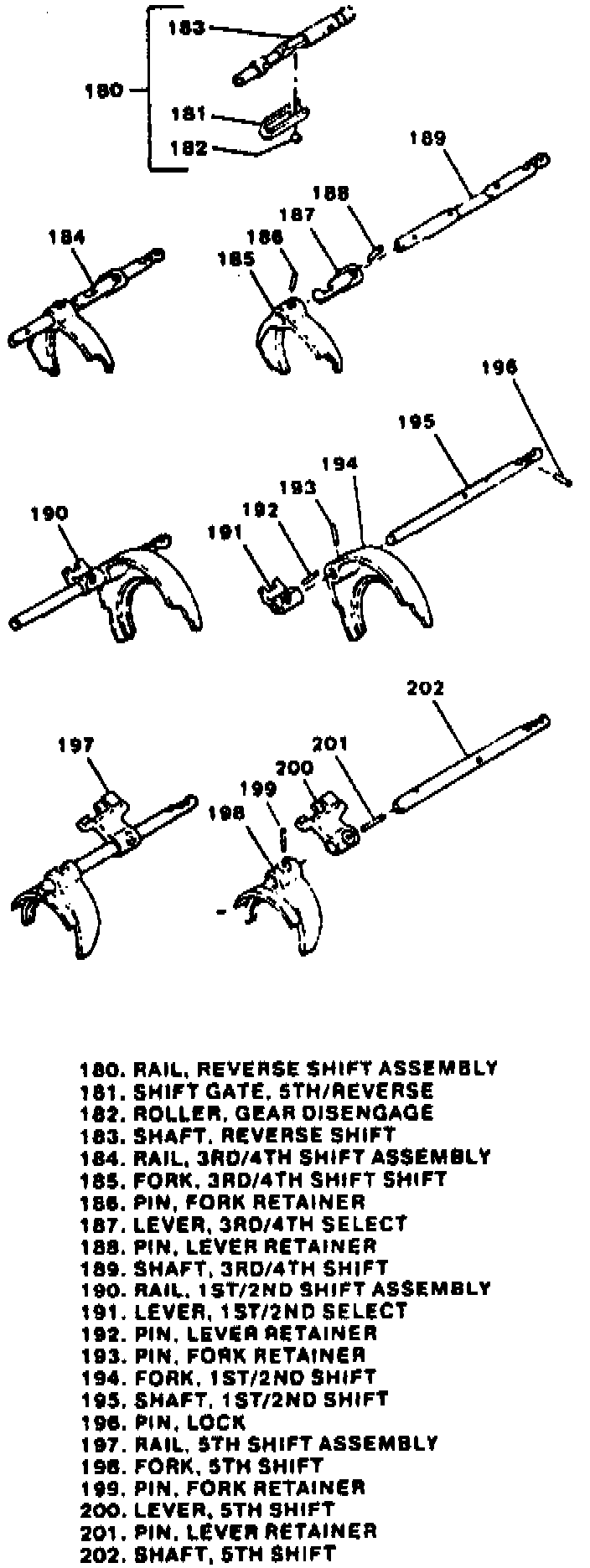

Shift Rail & Fork Assemblies

INSPECTION
1. Clean assemblies, with solvent, then blow dry using low pressure compressed air.

2. The components of the 1-2, 3/4 an fifth gear and reverse shift rail and fork assemblies are serviceable only as an assembly.

3. Inspect all components for excessive wear and/or damage. Replace worn or damaged components as required.
