Gear Clusters

1. Ensure transaxle is in neutral position or separation of gear cluster from case may damage transaxle components.

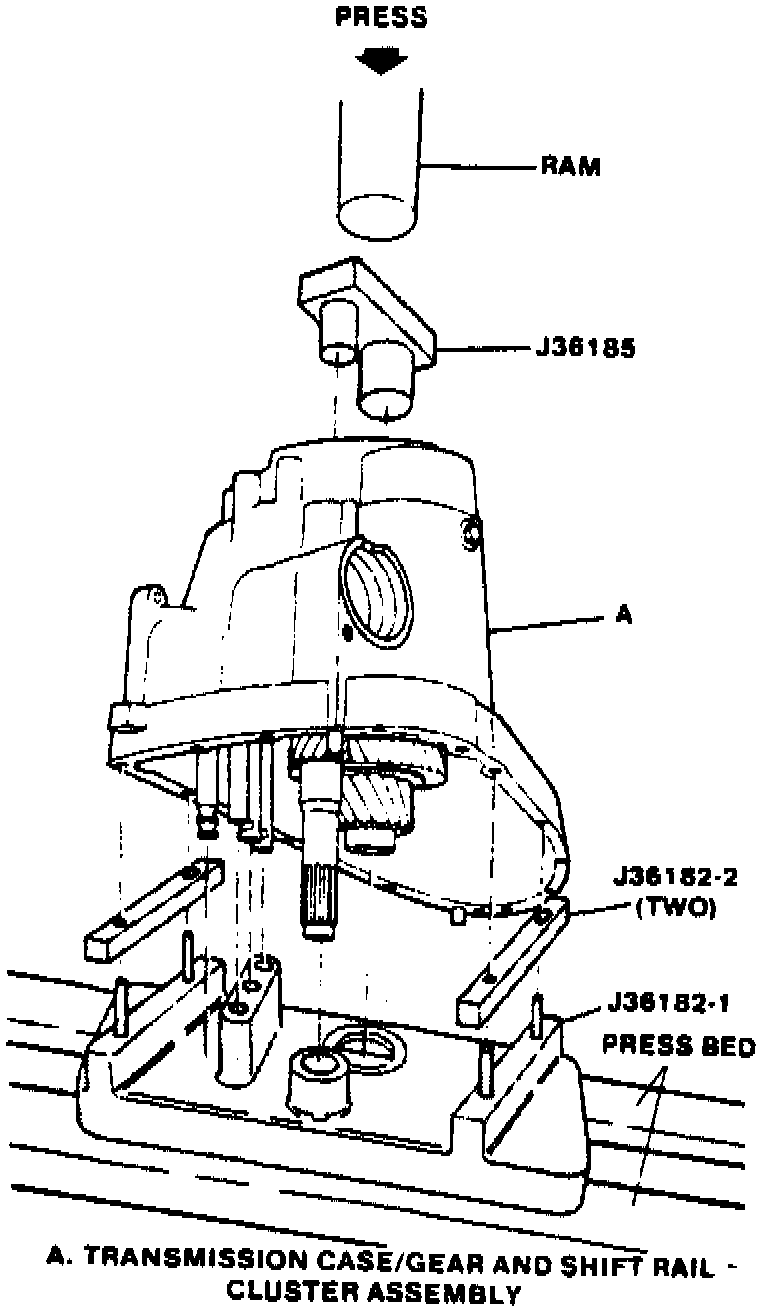

2. Position pallet tool No. J-36182-1 and disassembly adapter tool No. J-36182-2, or equivalents, onto hydraulic press.

3. Position transaxle case/gear cluster assembly (A) onto pallet tool and disassembly adapter tool Nos. J-36182-1 and J-36182-2, or equivalents, then align shift rail and shaft pilots to fixture.

4. Position gear cluster remover tool No. J-36185, or equivalent, onto shaft support bearings and pilots.

5. Using press, separate shaft and gear clusters from transaxle case.
